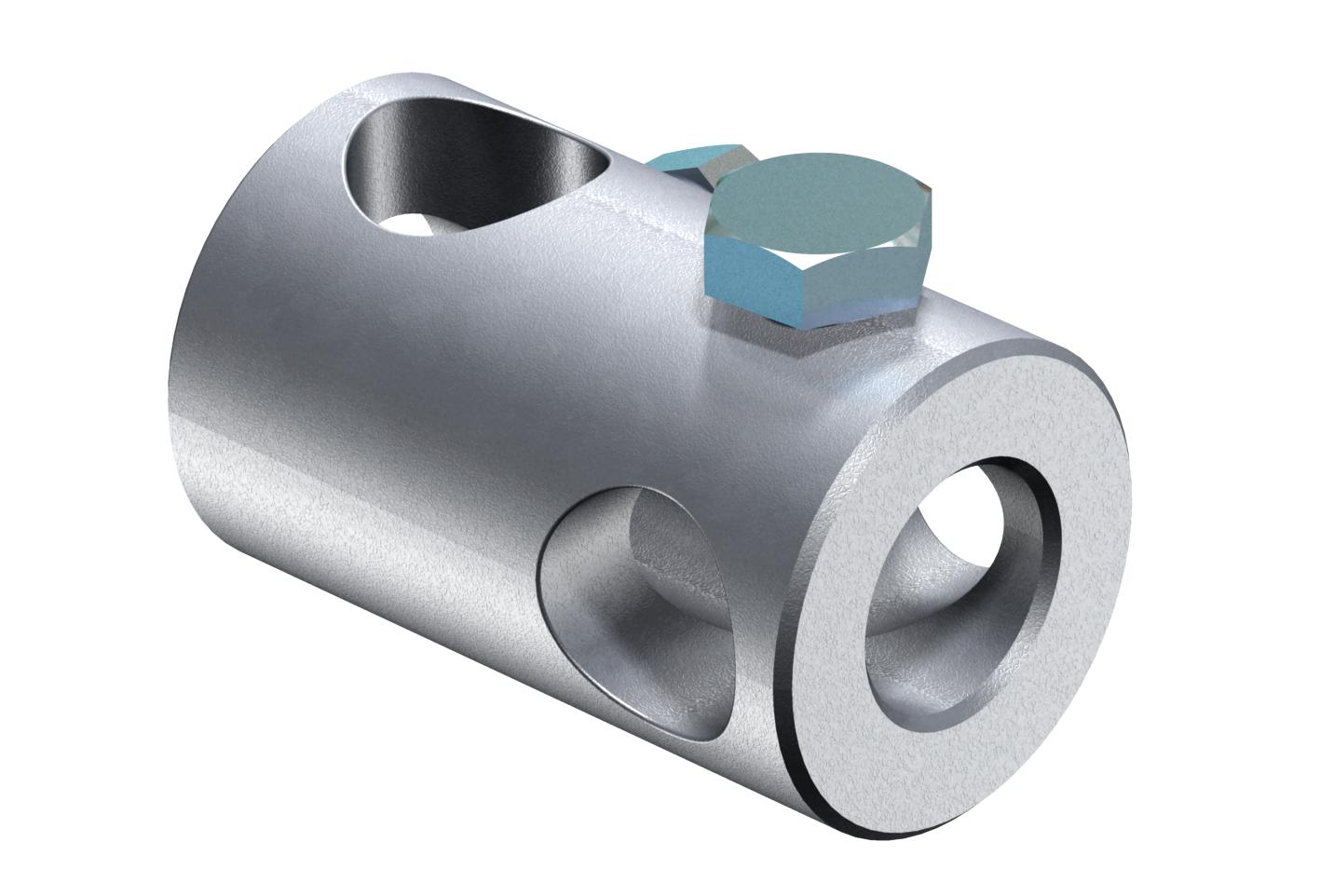

T connector
Item no. 5408156 | EAN 4012195681496
- Product description
-
Product description• T connector for installation of insulating rods
• With M10 bolts
- Technical data
-
Technical data

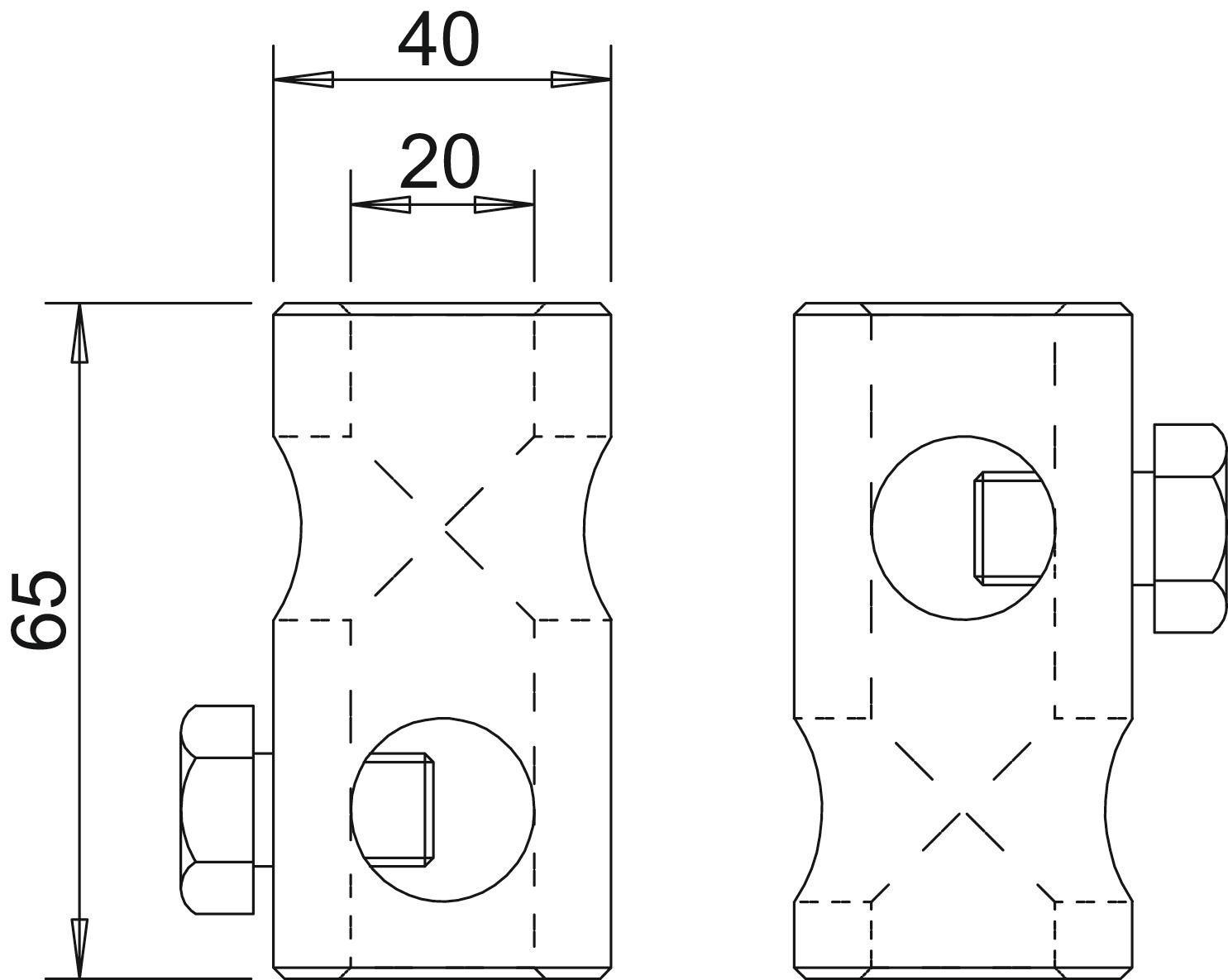

CO2 Footprint (GWP) Cradle-to-Gate 1,9176 kg CO2e / 1 Piece Connection Round conductor Dimension 20mm Dimension d min. 40 mm Dimension d Ø 20 mm Dimension L 65 mm Length 65 mm Material Aluminium - All types
- Downloads
-
Data sheet 101 IT / 5408156 , 0.11MB , pdfEU declaration of conformity 101 IT / 5408156 , 0.06MB , pdfREACH Declaration of conformity 101 IT / 5408156 , 0.13MB , pdf
