T branch piece 200 FT
Item no. 6233627 | EAN 4012196176595
- Product description
-

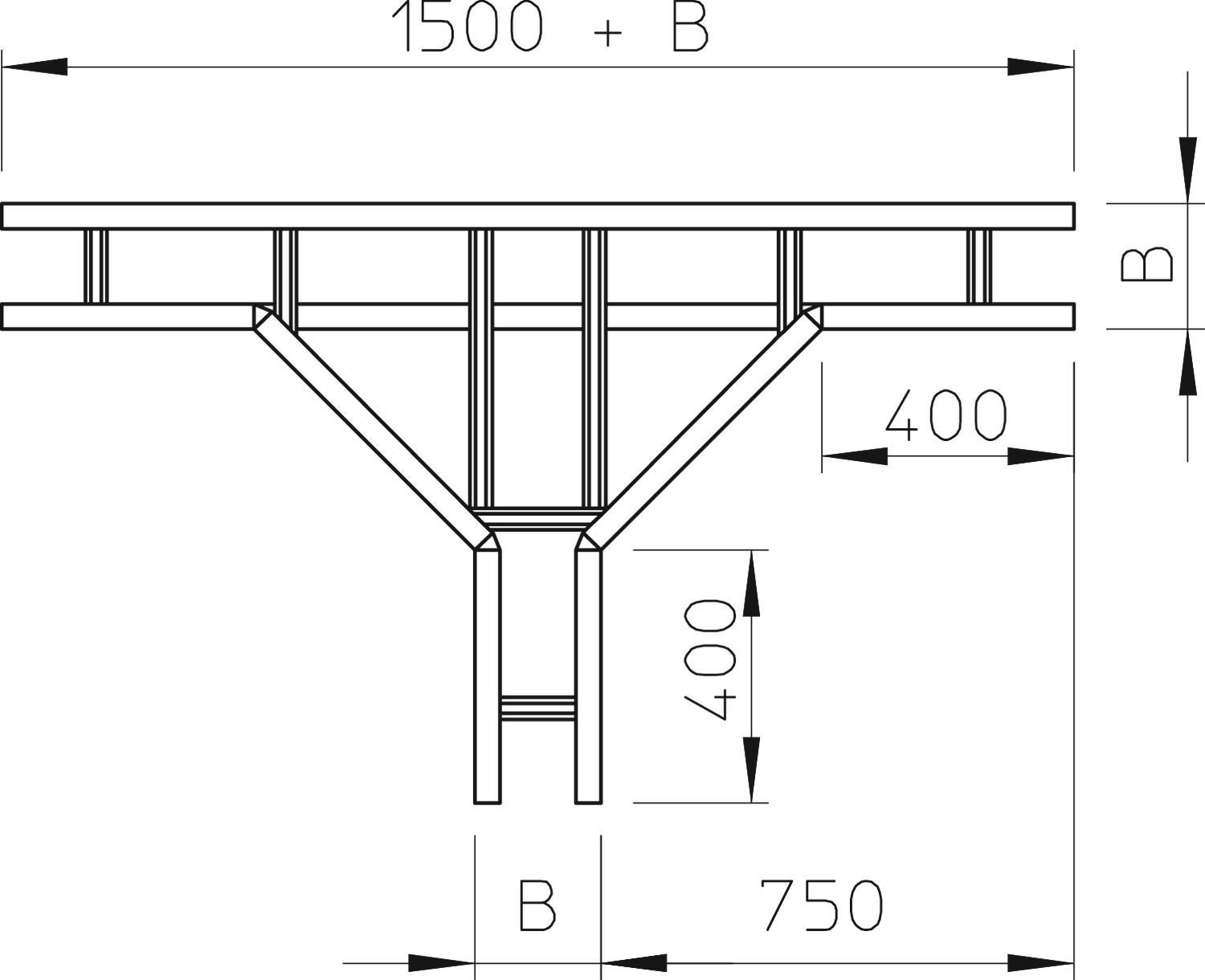

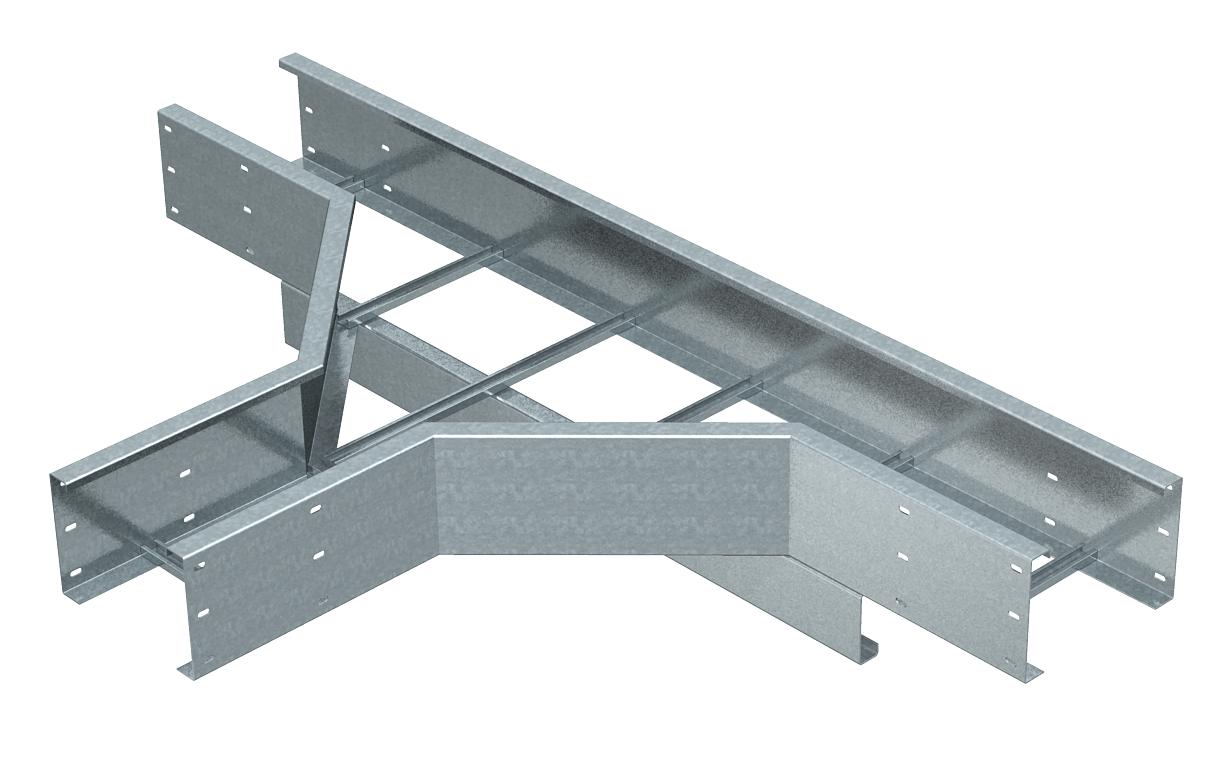

Product descriptionT piece, horizontal, for all wide span cable ladders of 200 mm side height.
-
- Technical data
-
Technical data
Colour zinc Dimension 200x200 Dimension B 200 mm Dimension R 500 mm Height 200 mm Maintain electrical functions no Material Steel Rail thickness 2,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version yes Width 200 mm - All types
- Downloads
-
Data sheet WLT 2020 FT / 6233627 , 0.22MB , pdfEU declaration of conformity WLT 2020 FT / 6233627 , 0.10MB , pdfUK Declaration of Conformity WLT 2020 FT / 6233627 , 0.09MB , pdfREACH Declaration of conformity WLT 2020 FT / 6233627 , 0.12MB , pdfRoHS Declaration of conformity WLT 2020 FT / 6233627 , 0.13MB , pdfMounting instructions Wide span cable ladders , 11.33MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
