Sprint screw, with Torx 7.5 | Panhead | 4 | 25

Sprint screw, with Torx

Item no. 3198034 | EAN 4012195555438

Item no. / Types

Head diameter

Head shape	Panhead

Dimension D

Dimension L

Product description

Product description

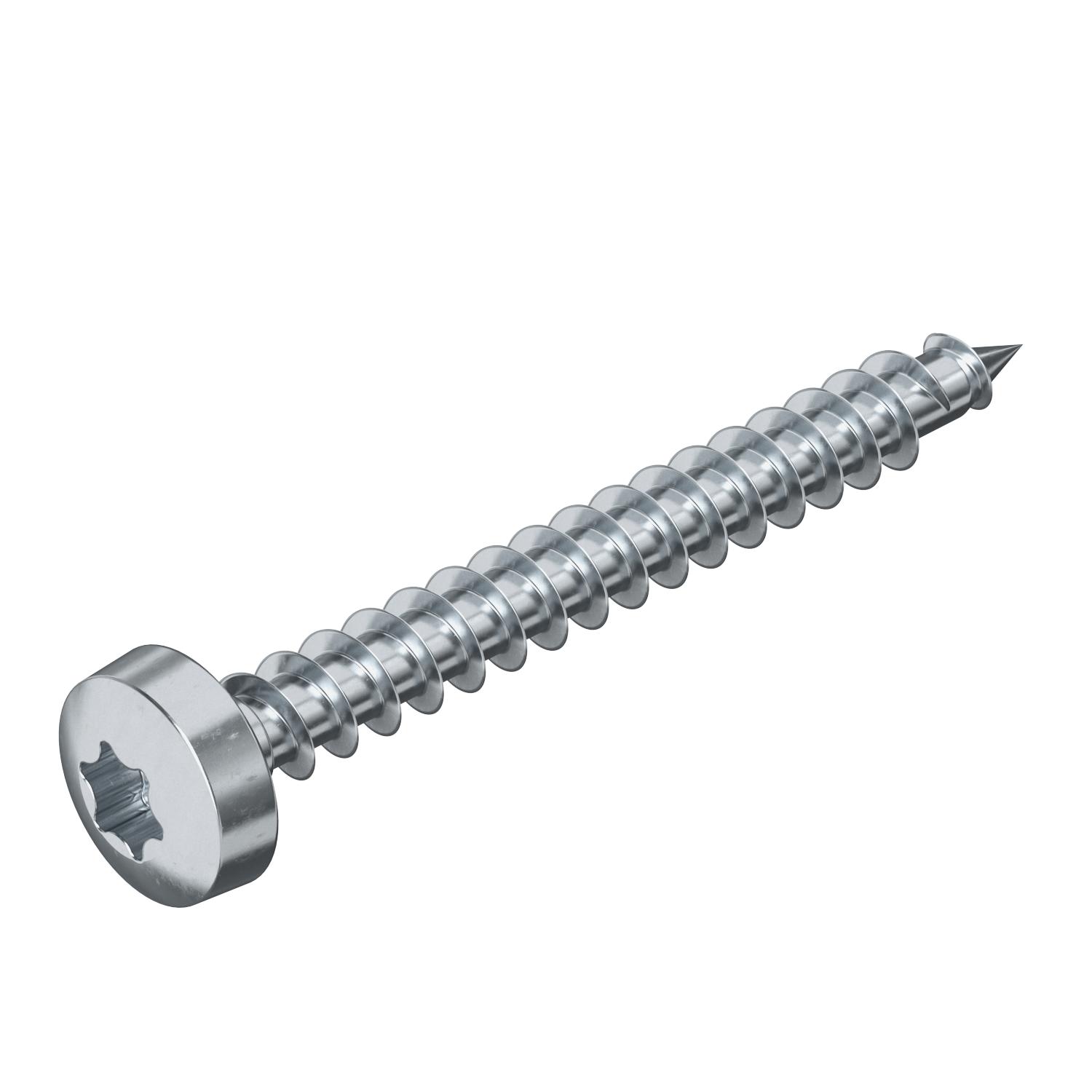

Hardened steel, electrogalvanised and Hostaflon-coated. Pan head with T bit (Allen head), sizes Ø 3 mm T10, Ø 3.5 mm T15, Ø 4 and 4.5 mm T20, Ø 5 mm T25.

The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable advantage comes from the point with the first thread, which leads on to the double thread beyond.

Areas of use: wood, chipboard, Rigips panels, plastic anchors.

Technical data

Technical data

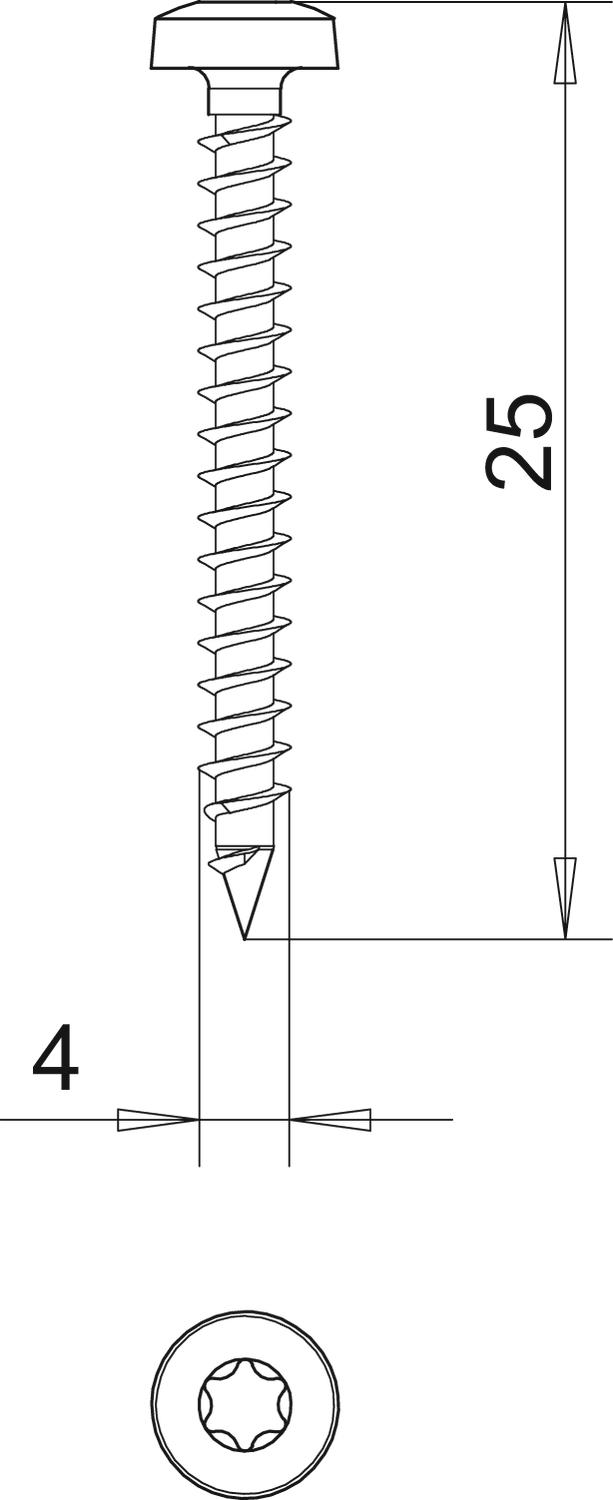

Dimension	4x25mm
Dimension D	4 mm
Dimension L	25 mm
Hardened	yes
Head diameter	7,5 mm
Head shape	Panhead

Length	25 mm
Material	Steel
Screw system	Torx
Surface	Electrogalvanized
Thickness	4 mm
Two-compartment	yes

All types

All types

Types	Head diameter	Head shape	Dimension D	Dimension L	Item no.
4758T 4.0x15	7.5 mm	Panhead	4 mm	15 mm	3198030
4758T 4.0x20	7.5 mm	Panhead	4 mm	20 mm	3198032
4758T 4.0x25	7.5 mm	Panhead	4 mm	25 mm	3198034
4758T 4.0x30	7.5 mm	Panhead	4 mm	30 mm	3198036
4758T 4.0x35	7.5 mm	Panhead	4 mm	35 mm	3198038
4758T 4.0x40	7.5 mm	Panhead	4 mm	40 mm	3198040
4758T 4.0x45	7.5 mm	Panhead	4 mm	45 mm	3198042
4758T 4.0x50	7.5 mm	Panhead	4 mm	50 mm	3198044
4758T 4.5x30	8.2 mm	Panhead	4.5 mm	30 mm	3198054
4758T 4.5x35	8.2 mm	Panhead	4.5 mm	35 mm	3198056
4758T 4.5x40	8.2 mm	Panhead	4.5 mm	40 mm	3198058
4758T 4.5x45	8.2 mm	Panhead	4.5 mm	45 mm	3198060
4758T 4.5x50	8.2 mm	Panhead	4.5 mm	50 mm	3198062
4758T 5.0x30	9.5 mm	Panhead	5 mm	30 mm	3198073
4758T 5.0x35	9.5 mm	Panhead	5 mm	35 mm	3198075
4758T 5.0x40	9.5 mm	Panhead	5 mm	40 mm	3198077
4758T 5.0x50	9.5 mm	Panhead	5 mm	50 mm	3198081
4758T 5.0x60	9.5 mm	Panhead	5 mm	60 mm	3198083
4758T 6.0x60	12 mm	Panhead	6 mm	60 mm	3198118
