Sprint screw, with Philips slot 5.6 | Countersunk head | 3 | 15

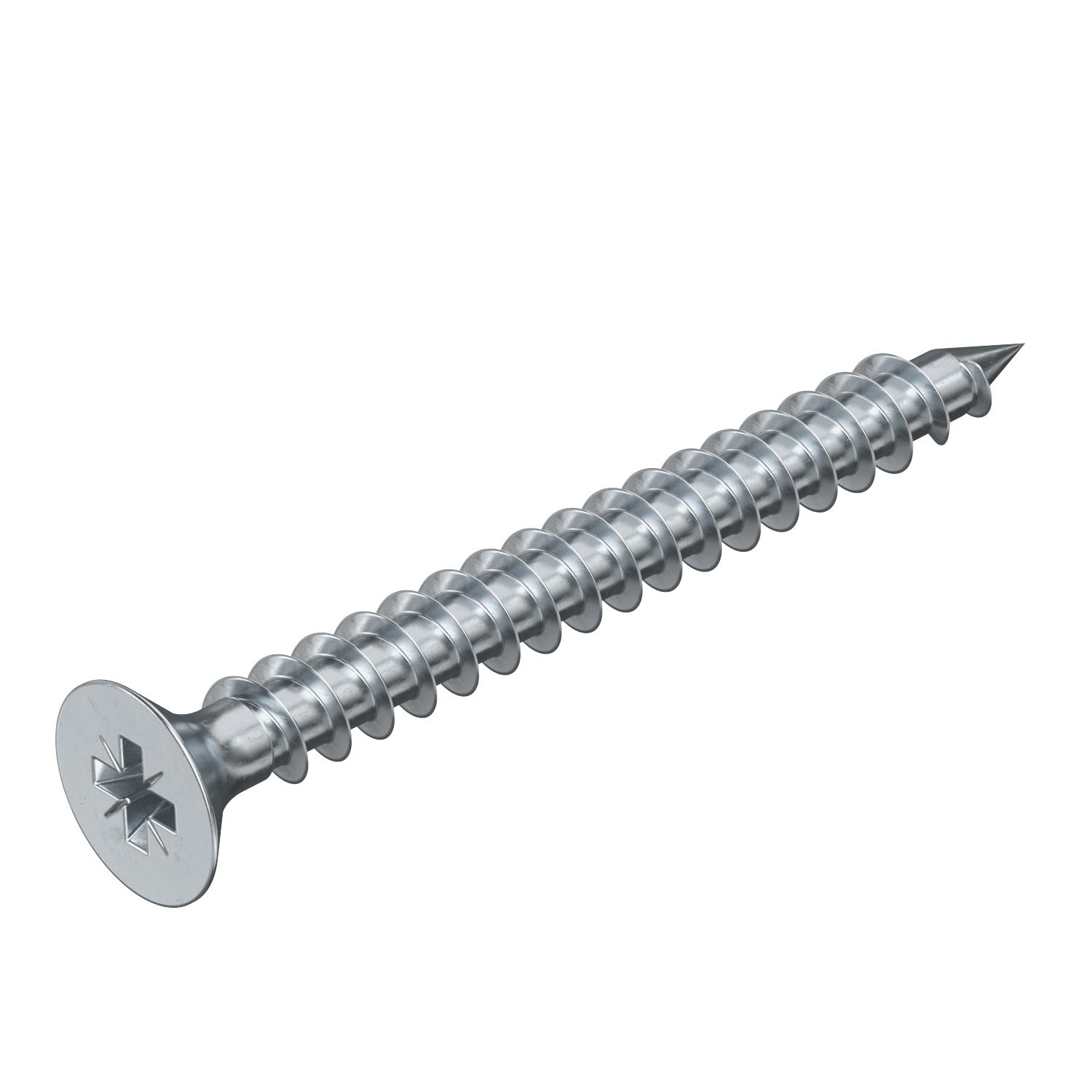

Sprint screw, with Philips slot

Item no. 3192055 | EAN 4012195155348

Item no. / Types

Head diameter

Head shape	Countersunk head

Dimension D

Dimension L

Product description

Product description

Hardened steel, electrogalvanised and Hostaflon-coated. Countersunk head with Phillips head (Pozidriv size 2 except Ø 6 mm Pozidriv size 3).

The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable benefit is achieved by the point with the first thread, which leads onto the double thread beyond.

Areas of use: wood, chipboard, Rigips panels, plastic anchors.

Technical data

Technical data

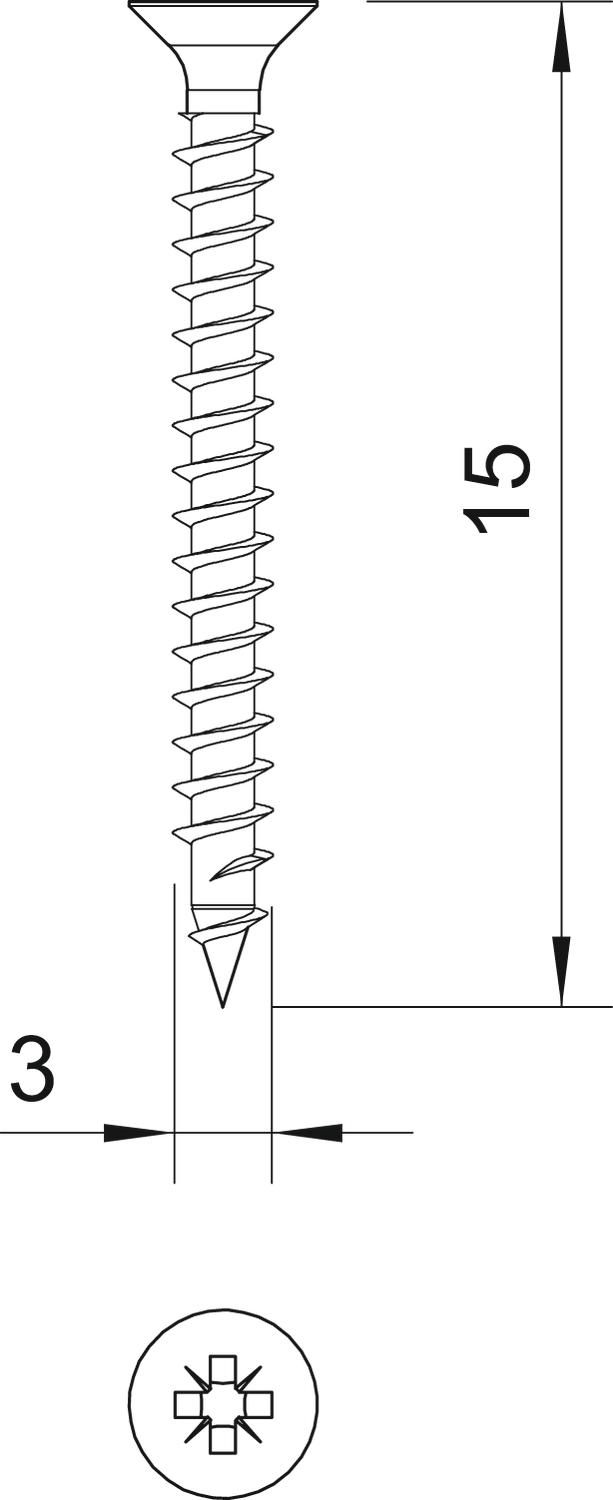

Dimension	3x15mm
Dimension D	3 mm
Dimension L	15 mm
Hardened	yes
Head diameter	5,6 mm

Head shape	Countersunk head
Length	15 mm
Material	Steel
Screw system	Pozidrive PZ
Surface	Electrogalvanized

All types

All types

Types	Head diameter	Head shape	Dimension D	Dimension L	Item no.
4759 3.0x15	5.6 mm	Countersunk head	3 mm	15 mm	3192055
4759 3.0x20	5.6 mm	Countersunk head	3 mm	20 mm	3192059
4759 3.0x25	5.6 mm	Countersunk head	3 mm	25 mm	3192063
4759 3.0x30	5.6 mm	Countersunk head	3 mm	30 mm	3192067
4759 3.5x20	6.5 mm	Countersunk head	3.5 mm	20 mm	3192105
4759 3.5x25	6.5 mm	Countersunk head	3.5 mm	25 mm	3192113
4759 3.5x30	6.5 mm	Countersunk head	3.5 mm	30 mm	3192121
4759 3.5x35	6.5 mm	Countersunk head	3.5 mm	35 mm	3192148
4759 3.5x40	6.5 mm	Countersunk head	3.5 mm	40 mm	3192156
4759 3.5x50	6.5 mm	Countersunk head	3.5 mm	50 mm	3192172
4759 4.0x20	7.5 mm	Countersunk head	4 mm	20 mm	3192202
4759 4.0x25	7.5 mm	Countersunk head	4 mm	25 mm	3192210
4759 4.0x30	7.5 mm	Countersunk head	4 mm	30 mm	3192229
4759 4.0x35	7.5 mm	Countersunk head	4 mm	35 mm	3192237
4759 4.0x40	7.5 mm	Countersunk head	4 mm	40 mm	3192245
4759 4.0x45	7.5 mm	Countersunk head	4 mm	45 mm	3192253
4759 4.0x50	7.5 mm	Countersunk head	4 mm	50 mm	3192261
4759 4.5x35	8.3 mm	Countersunk head	4.5 mm	35 mm	3192342
4759 4.5x40	8.3 mm	Countersunk head	4.5 mm	40 mm	3192350
4759 4.5x45	8.3 mm	Countersunk head	4.5 mm	45 mm	3192369
4759 5.0x30	9.2 mm	Countersunk head	5 mm	30 mm	3192415
4759 5.0x40	9.2 mm	Countersunk head	5 mm	40 mm	3192431
4759 5.0x50	9.2 mm	Countersunk head	5 mm	50 mm	3192466
4759 6.0x60	11 mm	Countersunk head	6 mm	60 mm	3192644
