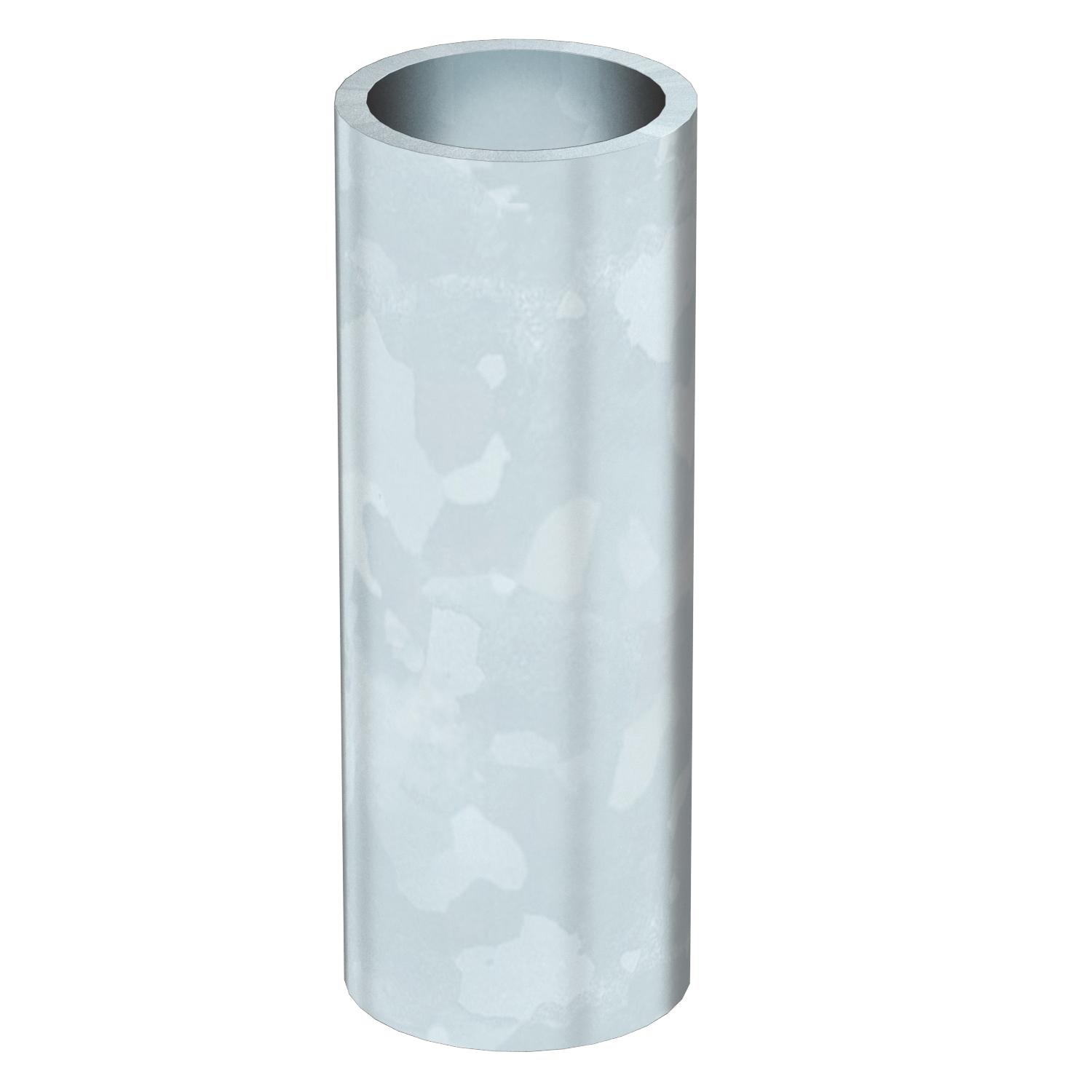

Spacer sleeve for insulated ceilings

Item no. 7205900 | EAN 4012196397228

Item no. / Types

Length

Product description

Product description

The spacer sleeves for mounting suspension brackets under insulated ceilings prevent the insulation from denting when the fastening screws are tightened.

Burr-free, galvanised internally and externally.

Technical data

Technical data

Colour	zinc

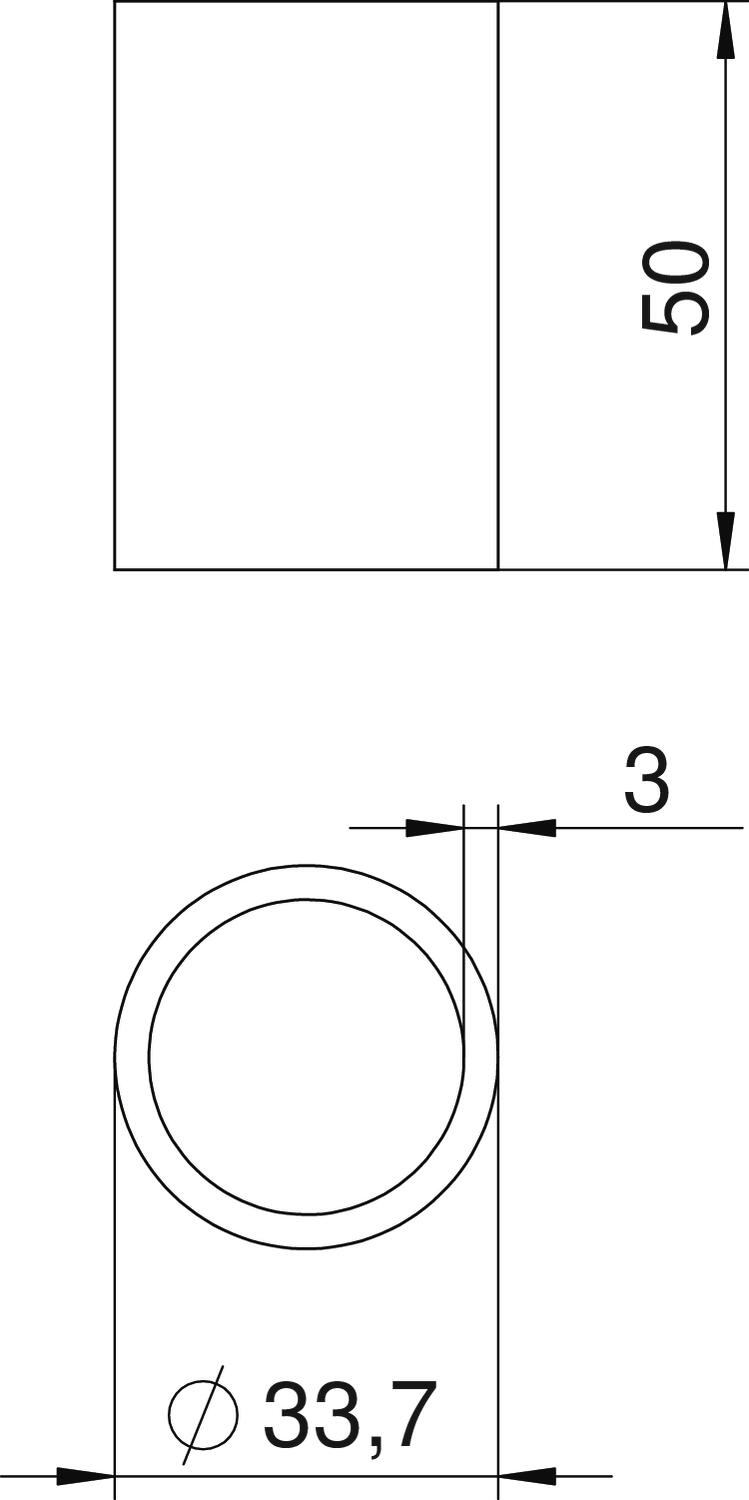

Dimension	33,7x50x3mm
Dimension L	50 mm
External diameter	33,7 mm

Inner diameter	27,7 mm
Length	50 mm
Material	Steel
Surface	Hot-dip galvanised

All types

All types

Types	Length	Item no.
DHI 050	50 mm	7205900
DHI 060	60 mm	7205901
DHI 070	70 mm	7205902
DHI 080	80 mm	7205903
DHI 090	90 mm	7205904
DHI 100	100 mm	7205905
DHI 110	110 mm	7205906
DHI 120	120 mm	7205907
DHI 130	130 mm	7205908
DHI 140	140 mm	7205909
DHI 150	150 mm	7205910
