Snap clip 6 | 90 | 19 | 22.5 | Light grey; RAL 7035

Snap clip

Item no. 2148056 | EAN 4012195844631

Item no. / Types

Drill hole diameter, min.	6 mm

Breaking load for concrete B25

Clamping range D, min.

Clamping range D, max.

Colour	Light grey; RAL 7035

Product description

Product description

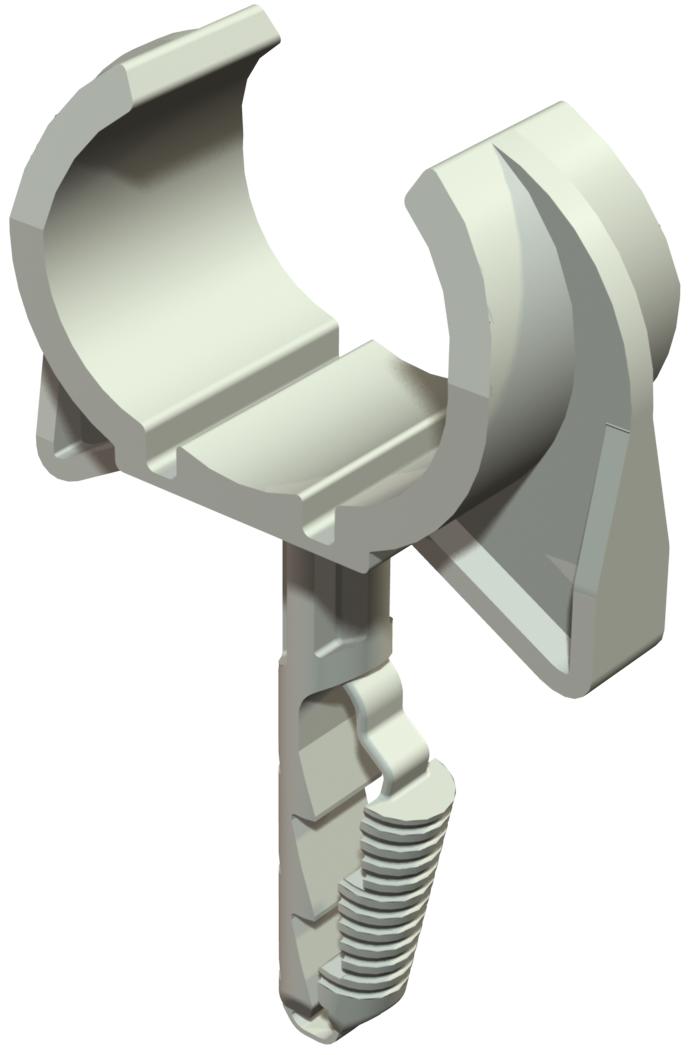

With moulded-on push-fit plug for rapid mounting in concrete walls and masonry.
Push plug into hole until the clip makes contact with the surface. When the pipe is pressed into the clip, the arms of the clip grip it.

Technical data

Technical data

Breaking load for concrete B25	90 N
Clamping range D, max.	22,5 mm
Clamping range D, min.	19 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,0235 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035

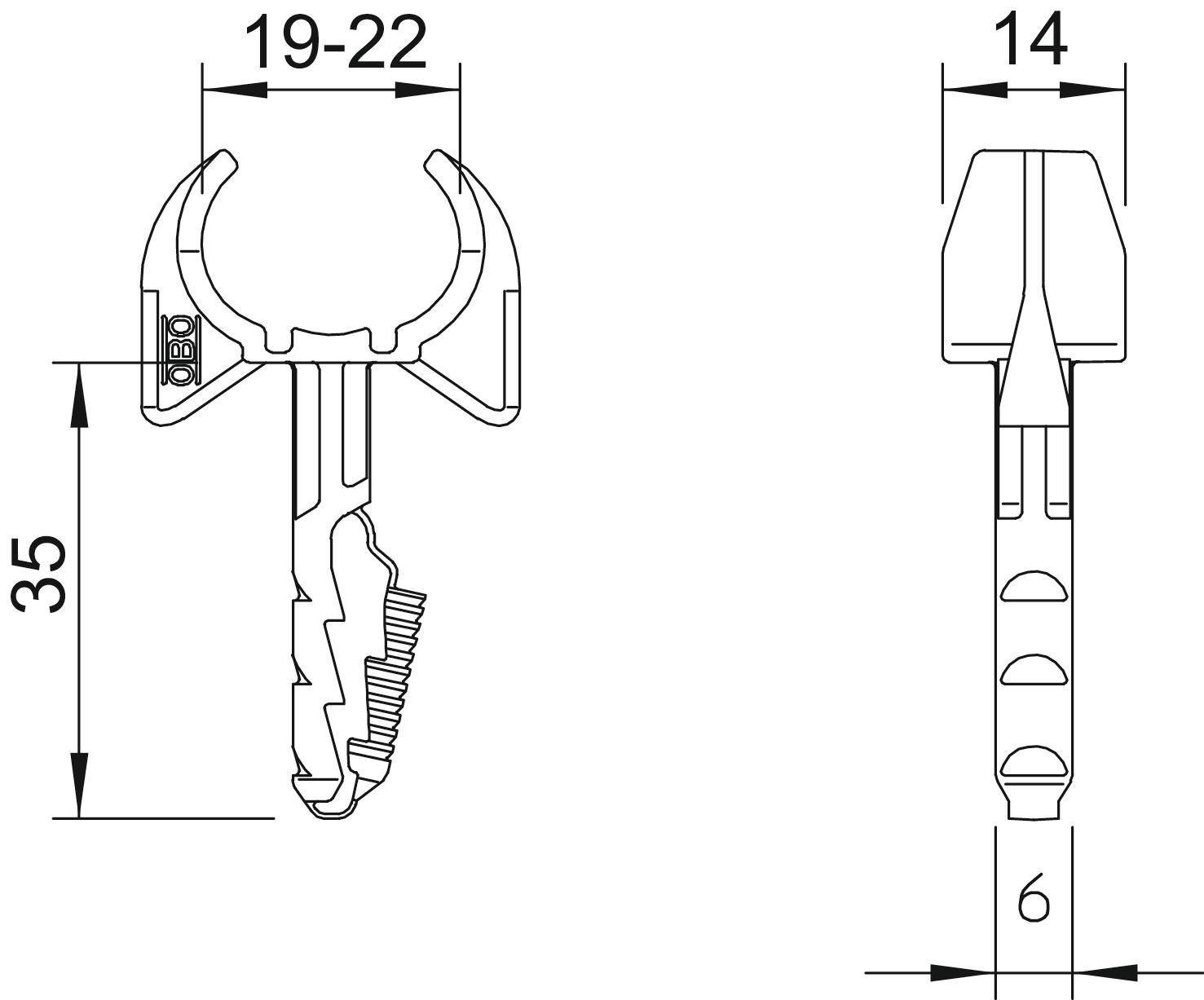

Dimension	19-22,5mm
Drill hole depth	40 mm

Drill hole diameter, min.	6 mm
Fastening type	Plug fastening
Halogen-free	yes
Material	Polyamide
Number of cables/pipes	1
Version for	Closed

All types

All types

Types	Drill hole diameter, min.	Breaking load for concrete B25	Clamping range D, min.	Clamping range D, max.	Colour	Item no.
1975 12-15	6 mm	90 N	12 mm	15 mm	Light grey; RAL 7035	2148021
1975 16-19	6 mm	150 N	16 mm	19 mm	Light grey; RAL 7035	2148048
1975 19-22	6 mm	90 N	19 mm	22.5 mm	Light grey; RAL 7035	2148056
