SLL 60 medium-duty vertical ladder, 6 m, FS 200 | 1.5
morepic-1 morepic-2 video-1 video-2

SLL 60 medium-duty vertical ladder, 6 m, FS

Item no. 6010620 | EAN 4012195433965

1.5 mm
Product description
Product description

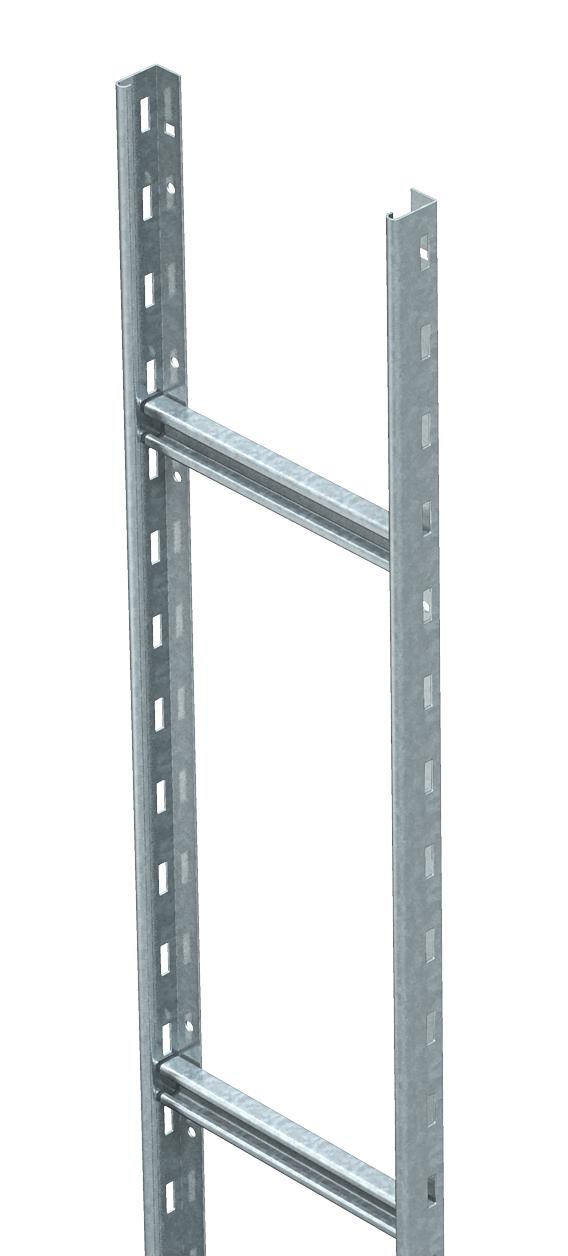

Vertical ladder with a side height of 60 mm with riveted C profile rungs, open in upwards direction.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 6,5997 kg CO2e / 1 Meter
Colour zinc

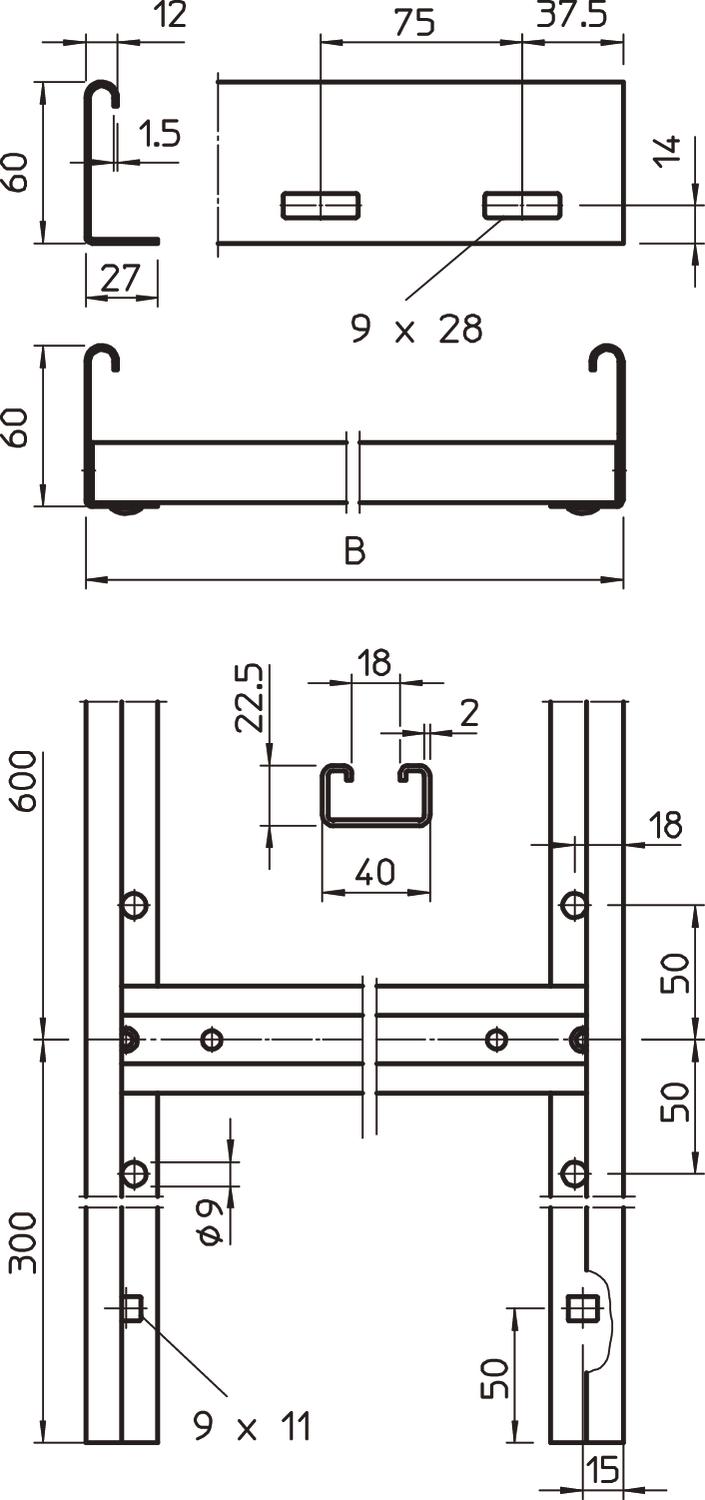

Dimension 60x200x6000
Dimension B 200 mm
Height 60 mm
Length 6000 mm
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rung distance 600 mm
Rung slot dimension 18,00
Rustproof steel, pickled no
Side perforation yes
Surface Strip galvanized
Usable cross-section 76 cm²
Version of the rungs Profile perforated
Width 200 mm
All types

All types

Types Width Rail thickness Item no.
SLL 620 CPS 4 FS 200 mm 1.5 mm 6010620
SLL 630 CPS 4 FS 300 mm 1.5 mm 6010622
SLL 640 CPS 4 FS 400 mm 1.5 mm 6010624
SLL 650 CPS 4 FS 500 mm 1.5 mm 6010626
SLL 660 CPS 4 FS 600 mm 1.5 mm 6010628
Accessories

System accessories

Products Types Item no.
Straight connector FS Straight connector FS LVG 60 FS 6208840

Mounting accessories

Products Types Item no.
Protective cap 60 Protective cap 60 SKH 60 OR 6222537
