Slide nut 21 | 10 | 2.5 | M4
morepic-1 morepic-2

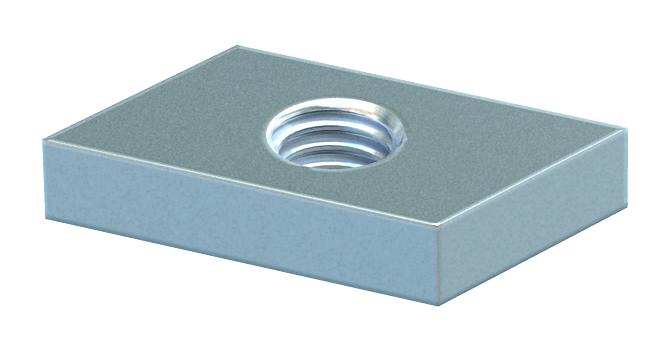

Slide nut

Item no. 1147020 | EAN 4012196488667

Product description
Product description
Slide nut for use with CL2712 profile rail
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 12 mm
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0081 kg CO₂e / 1 Piece

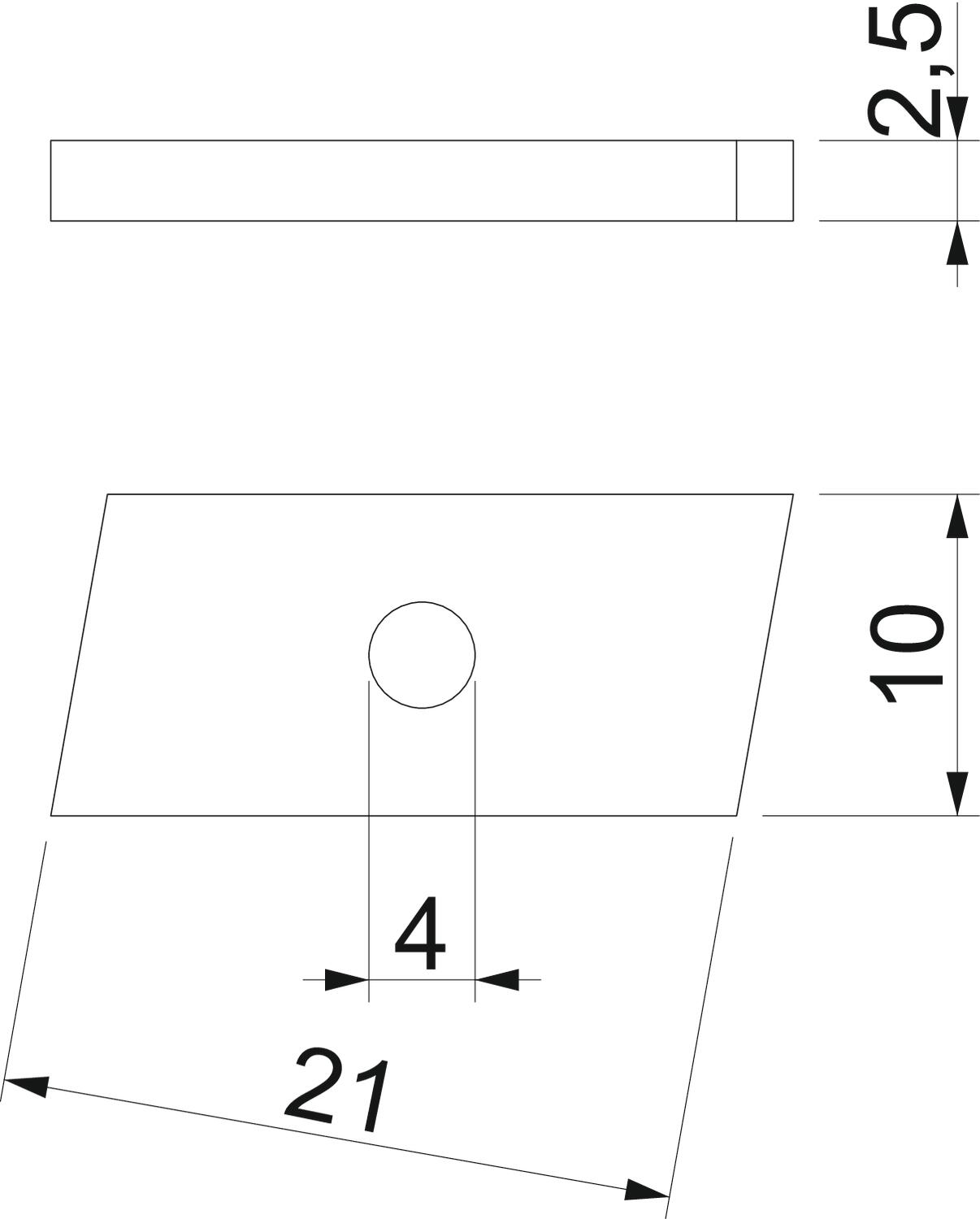

Dimension M4
Height 2,5 mm
Length 21 mm
Material Steel
Surface Zinc slat
Thread M4
Thread metric 4
Width 10 mm
With spring no
All types

All types

Types Length Width Height Thread Item no.
CL27SN M4 ZL 21 mm 10 mm 2.5 mm M4 1147020
CL27SN M5 ZL 24.5 mm 13 mm 4 mm M5 1147024
CL27SN M6 ZL 24.5 mm 13 mm 4 mm M6 1147028
CL27SN M8 ZL 24.5 mm 13 mm 4 mm M8 1147032
Downloads

Download

Download

REACH Declaration of conformity CL27SN M4 ZL / 1147020 , 0.12MB , pdf
Download
RoHS Declaration of conformity CL27SN M4 ZL / 1147020 , 0.12MB , pdf
Download

CL27SN M4 ZL / 1147020
