Side holder, universal FT
Item no. 6015324 | EAN 4012195851868
- Product description
-

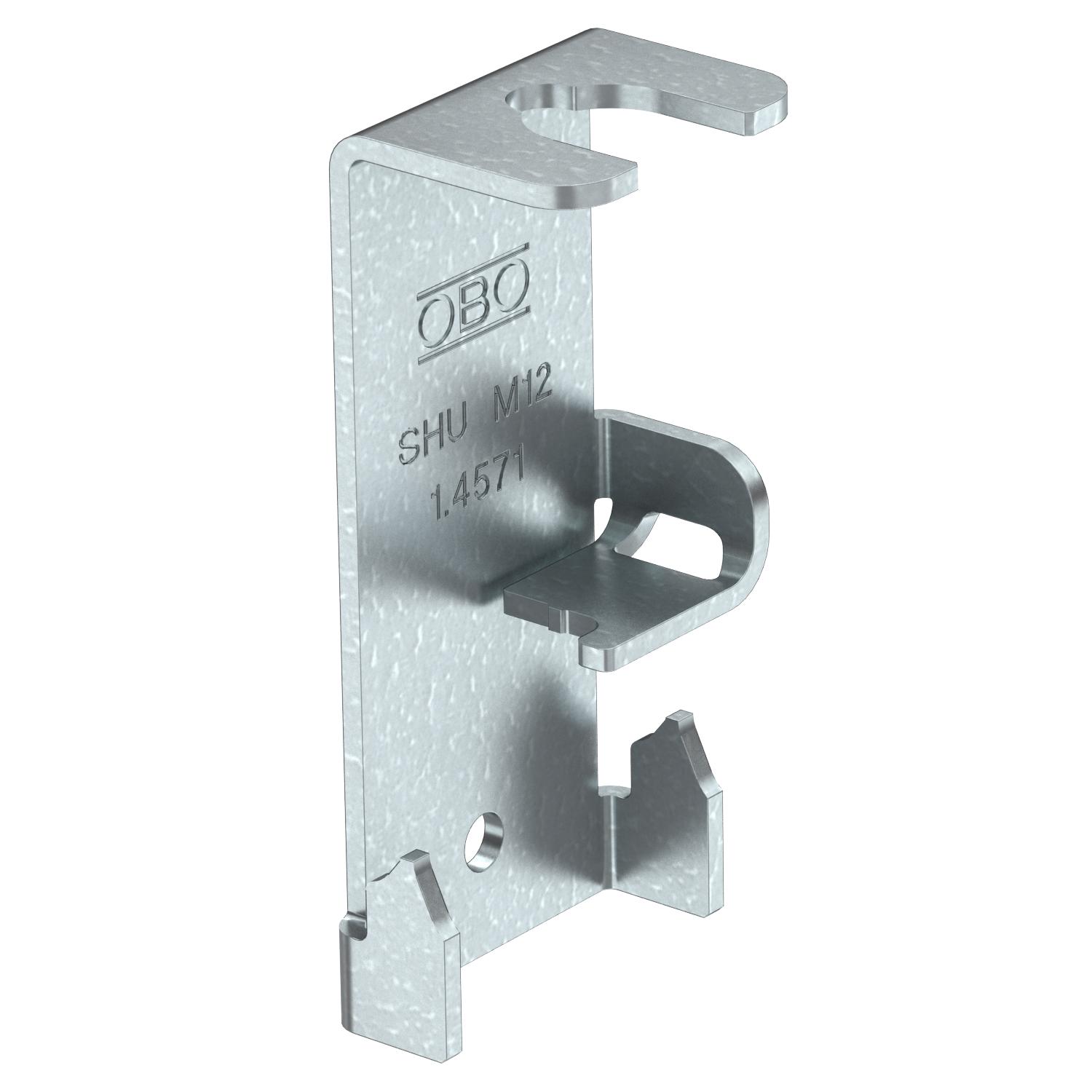

Product descriptionSide holder to fasten cable trays, mesh cable trays and cable ladders to ceilings using a threaded rod.
-
- Technical data
-
Technical data

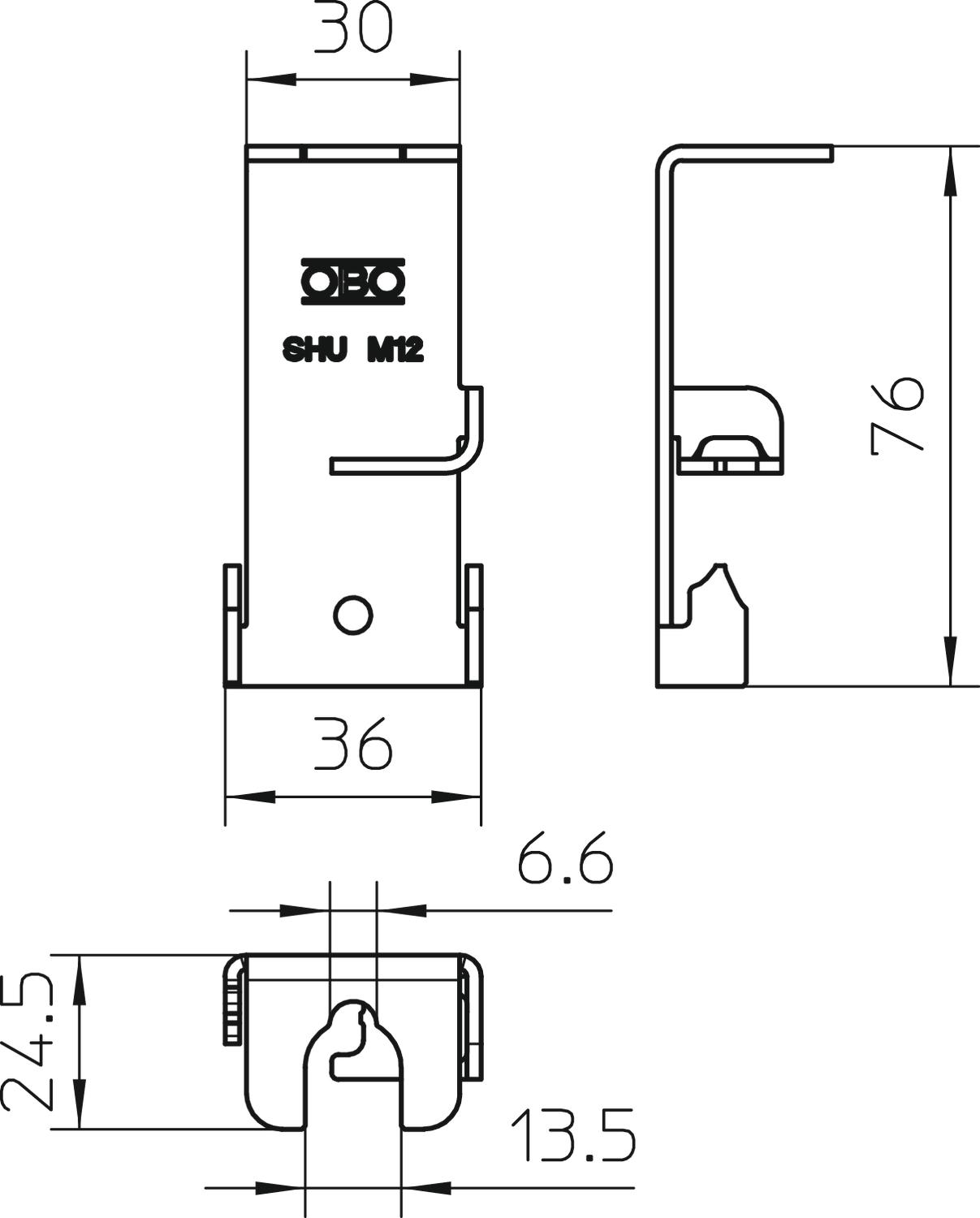

Breaking load 0,5 kN CO2 Footprint (GWP) Cradle-to-Gate 0,2273 kg CO2e / 1 Piece Colour zinc Dimension 75x36x2 Height 25 mm Length 76 mm Material Steel Material thickness 2 mm Surface Strip galvanised zinc/aluminium, Double Dip Width 36 mm - All types
- Downloads
-
Data sheet SHU M12 DD / 6015324 , 0.17MB , pdfEU declaration of conformity SHU M12 DD / 6015324 , 0.10MB , pdfREACH Declaration of conformity SHU M12 DD / 6015324 , 0.12MB , pdfRoHS Declaration of conformity SHU M12 DD / 6015324 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
