Set of Quick clips and Quick pipe pipes

Item no. 2154536 | EAN 4012195483076

Product description
Product description

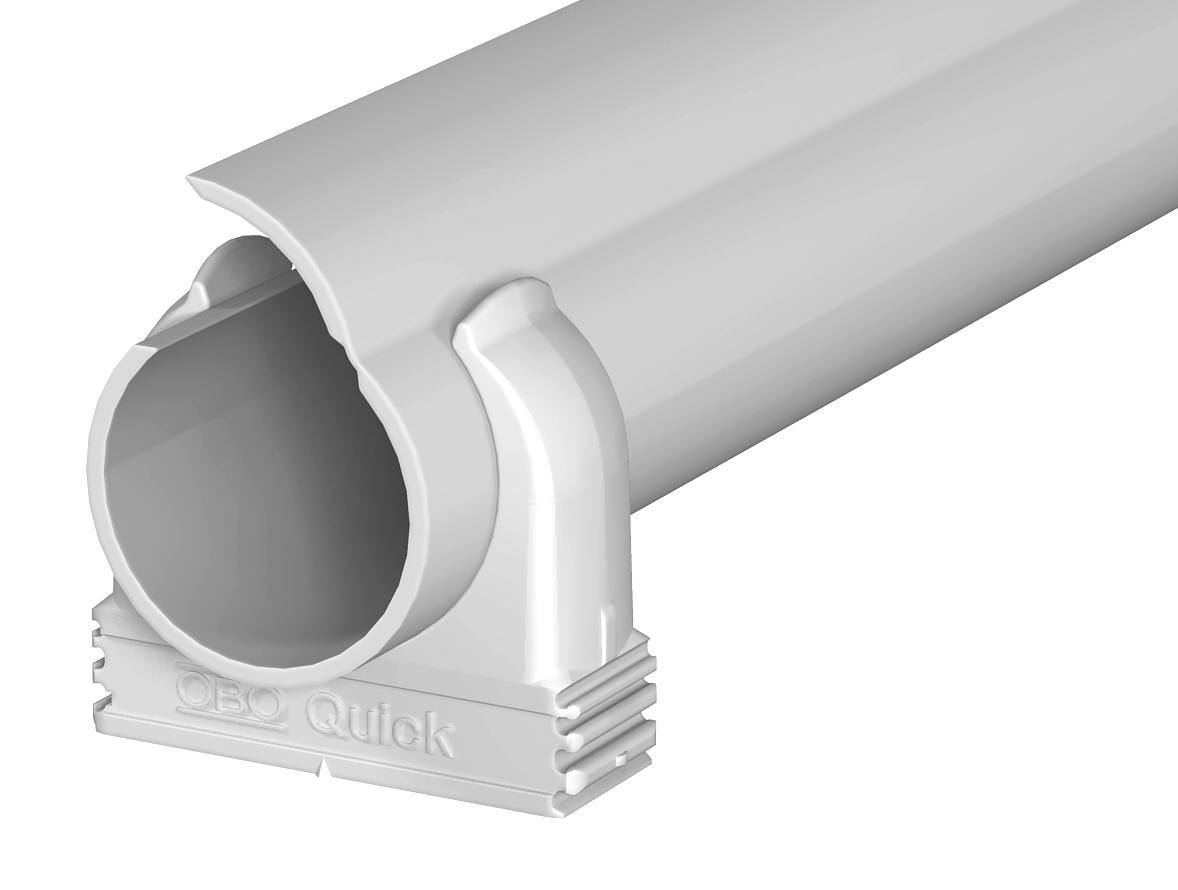

Set consisting of Quick pipe electrical installation pipes and Quick clip surface-mounted clips. For surface-mounted routing of cables in interiors and protected outdoor areas. Universal fastening on wall and ceiling. Comprises 30 m of pipe each of 2 metres in length and 96 Quick clips. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 44
  • Thread metric
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 10,6565 kg CO₂e / 1 Piece
Colour Light grey; RAL 7035
Concealed no
Concrete installation yes

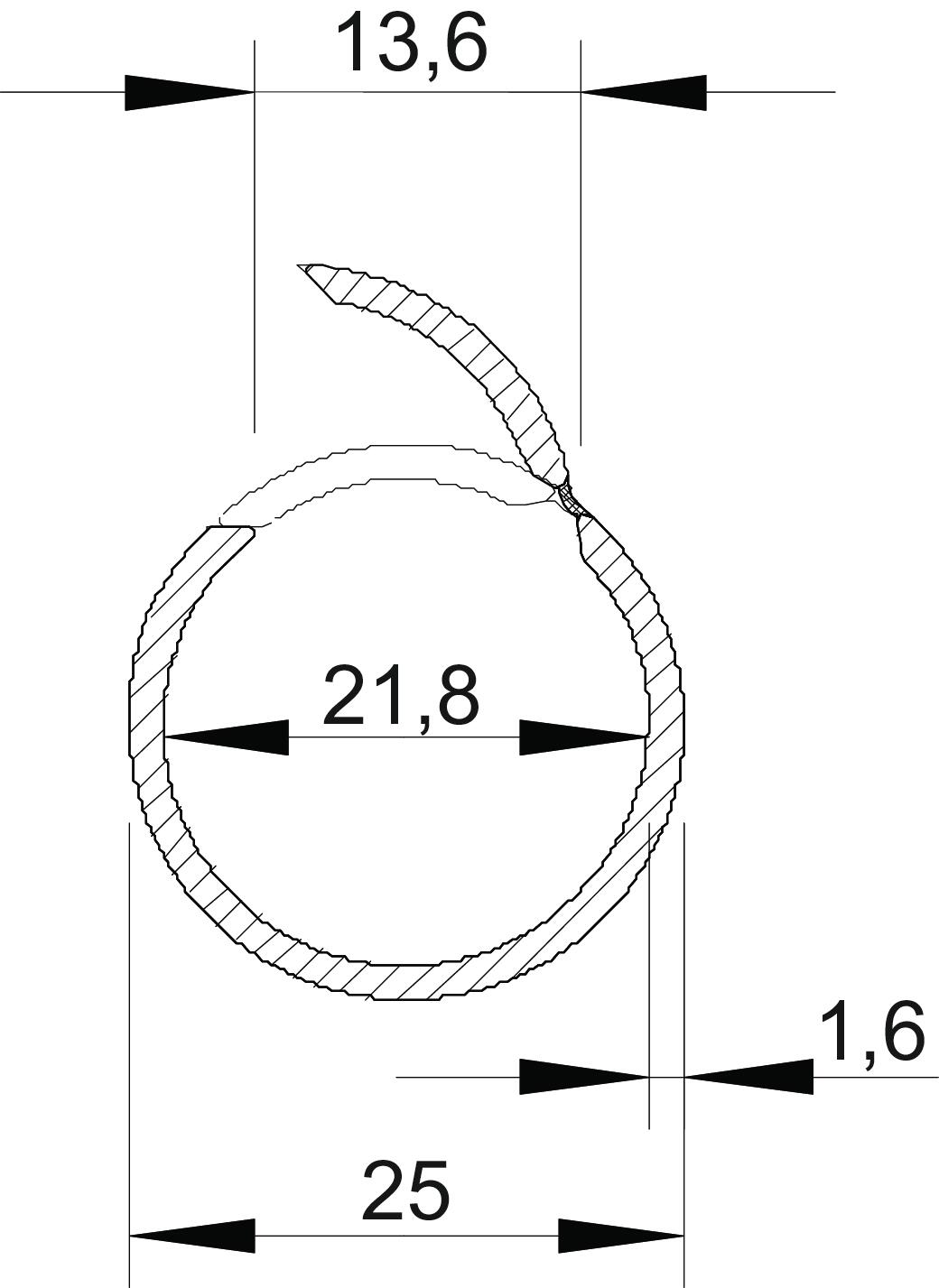

Dimension M25
Dimension C 13,6 mm
Dimension D 25 mm
Dimension t 1,6 mm
Flame-resistant version no
Halogen-free no
Installation in the earth no
Installation on wood yes
Installation outdoors no
Machines and system installation yes
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Size M25
Surface-mounted yes
Underfloor installation (screed) no
With sleeve no
All types

All types

Types Size Item no.
2954 M16 LGR M16 2154501
2954 M20 LGR M20 2154528
2954 M25 LGR M25 2154536
2954 M32 LGR M32 2154544
Accessories

Mounting accessories

Products Types Item no.
Push-fit plug Delta-Push® with M6 thread Push-fit plug Delta-Push® with M6 thread DP GM6 30 2351673
