Service pole, type ISSRM45
Item no. 6290087 | EAN 4012195428107
- Product description
-

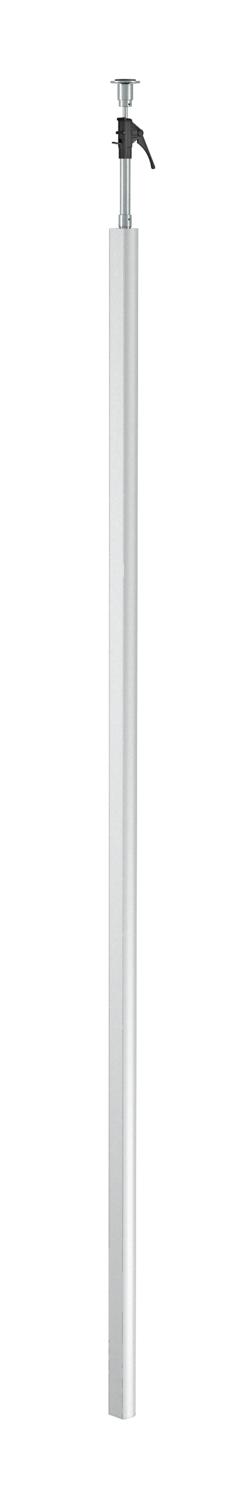

Product descriptionISS aluminium service pole with a 45 mm system opening.
Set consists of:
1 one-compartment pole with clamping fastening
Total length: 3,315 mm–3,480 mm
1 ceiling attachment with clamping device
1 aluminium cover
Length: 3,000 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series as its front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices.
-
- Technical data
-
Technical data

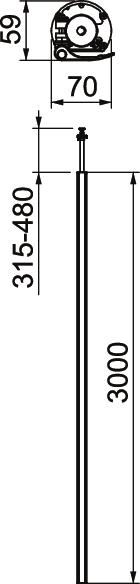

Adjustable yes Cable entry Top Ceiling mounting yes Changes according to location no CO2 Footprint (GWP) Cradle-to-Gate 110,1707 kg CO₂e / 1 Piece Colour aluminium Continuous profile yes Cover width 45 mm Dimension 3000x70x59 Fastening type Tension Floor mounting yes Halogen-free yes Height 59 mm Height compensation, max. 480 mm Height compensation, min. 315 mm Length 3000 mm Material Aluminium Number of compartments 1 St. Number of usable covers 1 Pole height, max. 3480 mm Pole height, min. 3315 mm Pole shape Round Pre-wired no Surface Anodised Version for Single-sided Width 70 mm - All types
-
System accessories
Products Types Item no.
Rubber support for ISSRM45
ISSRGU 6290178
Ceiling panel for ISSRM45
WAGRM45 6290264 Mounting accessories
Products Types Item no.
Partition for WDK trunking, trunking height 40 mm
2371 40 6023096 - Downloads
-
Data sheet ISSRM45EL / 6290087 , 0.18MB , pdfBrochure Service poles, office , 2.77MB , pdfEU declaration of conformity ISSRM45EL / 6290087 , 0.10MB , pdfUK Declaration of Conformity ISSRM45EL / 6290087 , 0.09MB , pdfREACH Declaration of conformity ISSRM45EL / 6290087 , 0.13MB , pdfRoHS Declaration of conformity ISSRM45EL / 6290087 , 0.13MB , pdfMounting instructions Mounting instructions, service pole with clamping device Modul 45 , 0.86MB , pdfNo invitation to tender text is available for this product.
