Service pole, type ISSOGHS70140 675 | Pure white; RAL 9010

Service pole, type ISSOGHS70140

Item no. 6289098 | EAN 4012196258765

Item no. / Types

Length	675 mm

Colour

Product description

Product description

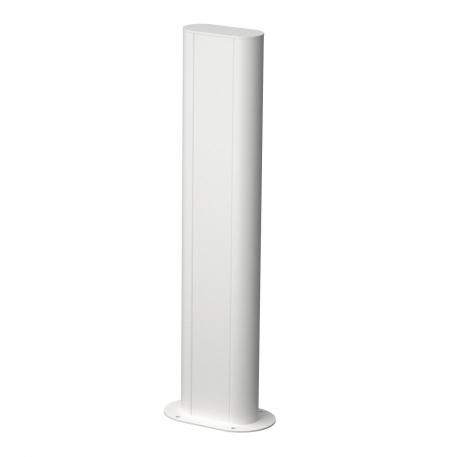

ISS aluminium service pole with a 76.5 mm system opening.

Set consists of:

1 single-compartment pole with stand

Total length: 675 mm

1 aluminium cover

Length: 675 mm

The design of this ISS service pole is based on the oval-shaped aluminium profile of ISSOG70140 floor-ceiling poles. The 76.5 mm system opening is suitable for directly accepting mounting box accessories of series 71GD... for the equipment with switching and connection devices.

Technical data

Technical data

Adjustable	no
Cable entry	Bottom
Ceiling mounting	no
Changes according to location	no
Colour	Pure white; RAL 9010
Continuous profile	yes
Cover width	76,5 mm

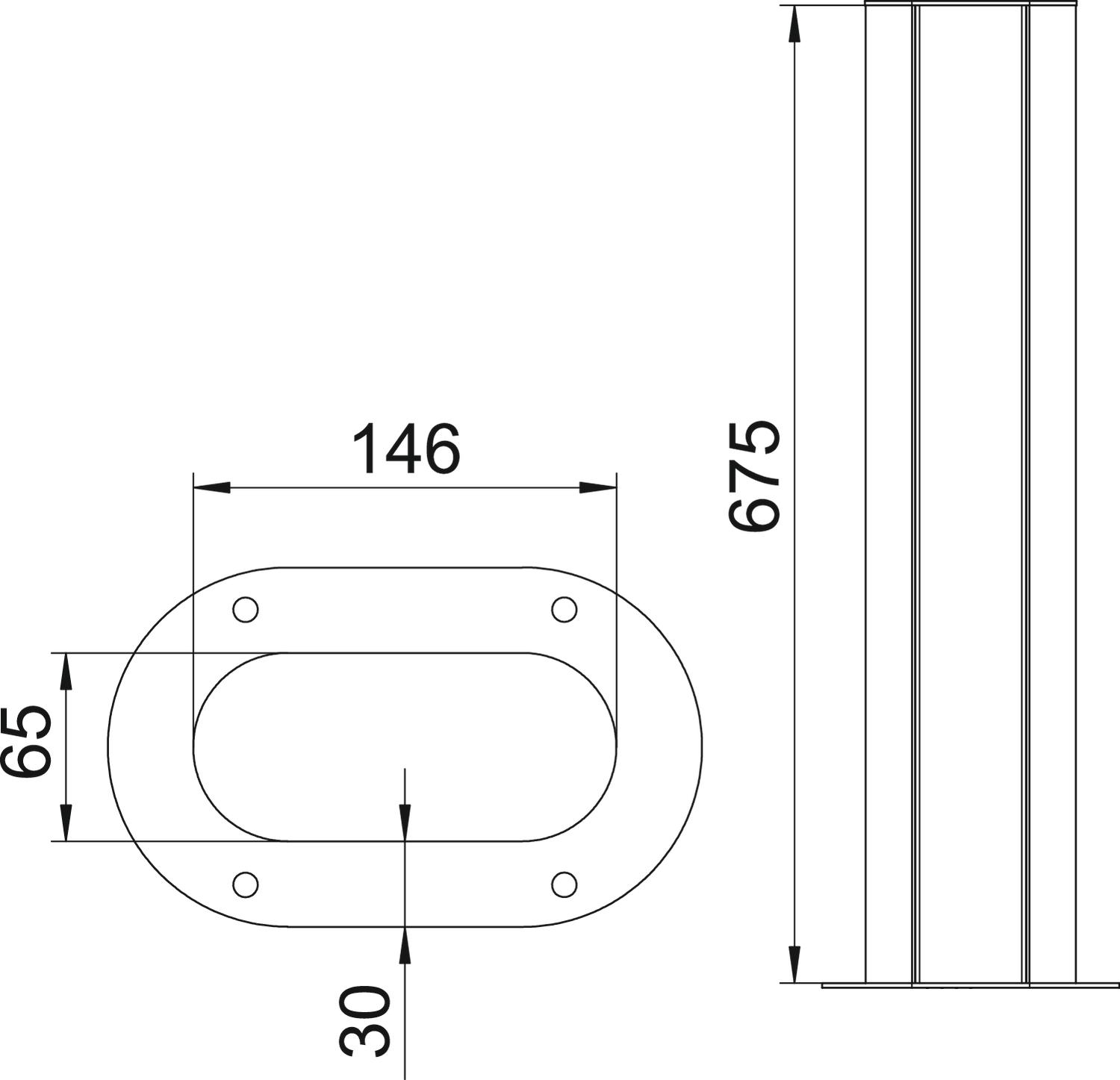

Dimension	675x146x65
Fastening type	Stand
Floor mounting	yes
Halogen-free	yes

Height	65 mm
Length	675 mm
Material	Aluminium
Number of compartments	1 St.
Number of usable covers	1
Pole height, min.	675 mm
Pole shape	Oval
Pre-wired	no
Version for	Single-sided
Width	146 mm

All types

All types

Types	Length	Colour	Item no.

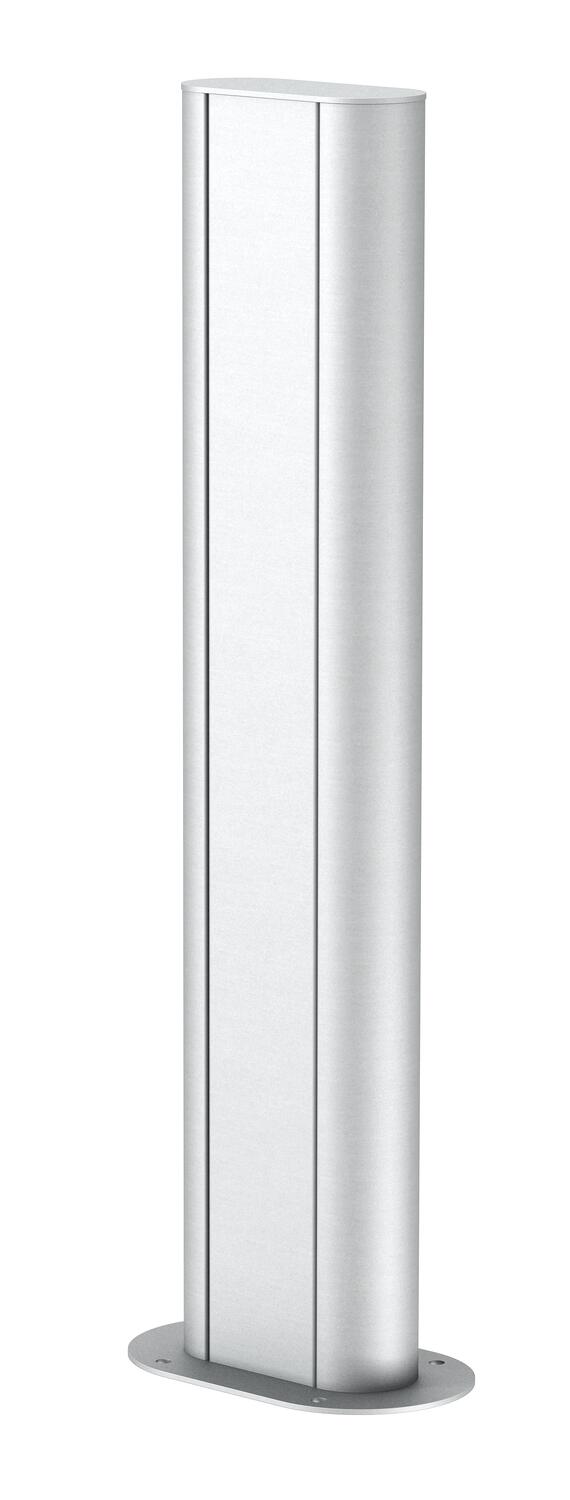

ISSOGHS70140EL	675 mm	aluminium	6289096
ISSOGHS70140RW	675 mm	Pure white; RAL 9010	6289098

Accessories

System accessories

Products	Types	Item no.
Accessory mounting box 71GD6, single	71GD6	6288610
Accessory mounting box 71GD7-2, double	71GD7-2	6288608
Protective conductor connection bracket	8AWR	6288704
Locking bracket RKV3V	RKV3V	6288700
