Service pole, sheet steel, with PVC cover 2505 | Telescope | Steel | Pure white; RAL 9010 |

Service pole, sheet steel, with PVC cover

Item no. 6286540 | EAN 4012195809142

Item no. / Types	6286540 / ISS70110STKRW

Length	2505 mm

Fastening type	Telescope

Material	Steel

Colour	Pure white; RAL 9010

Product description

Product description

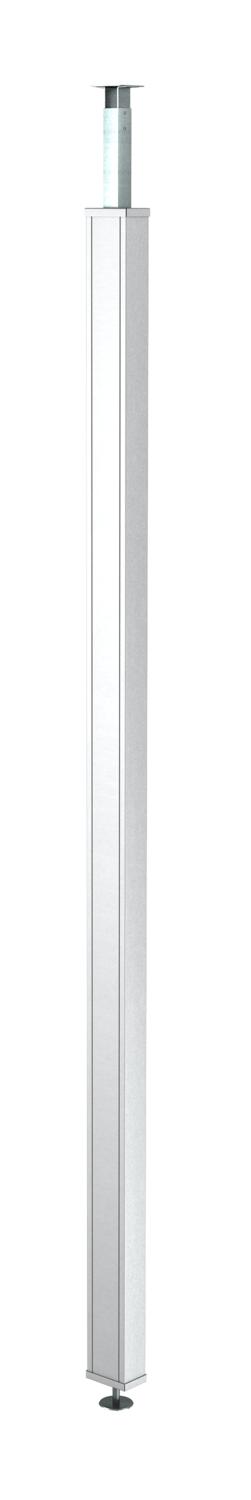

Sheet steel service pole with a 76.5 mm system opening.

Set consisting of:

1 single-compartment pole with clamping fastening

Total length 2,625–3,665 mm

1 ceiling fastening with telescopic profile

1 PVC cover

Length: 2,500 mm

A 2 m PVC separating retainer and 2 cover clips are contained in the scope of delivery.

The service pole is suitable for accepting accessory mounting boxes of the

series 71GD...

The service pole is pre-mounted and ready for use immediately. The following accessories can also be used, depending on the mounting situation.

Technical data

Technical data

Adjustable	yes
Cable entry	Top
Ceiling mounting	yes
Changes according to location	no
Colour	Pure white; RAL 9010
Continuous profile	yes
Cover width	76,5 mm

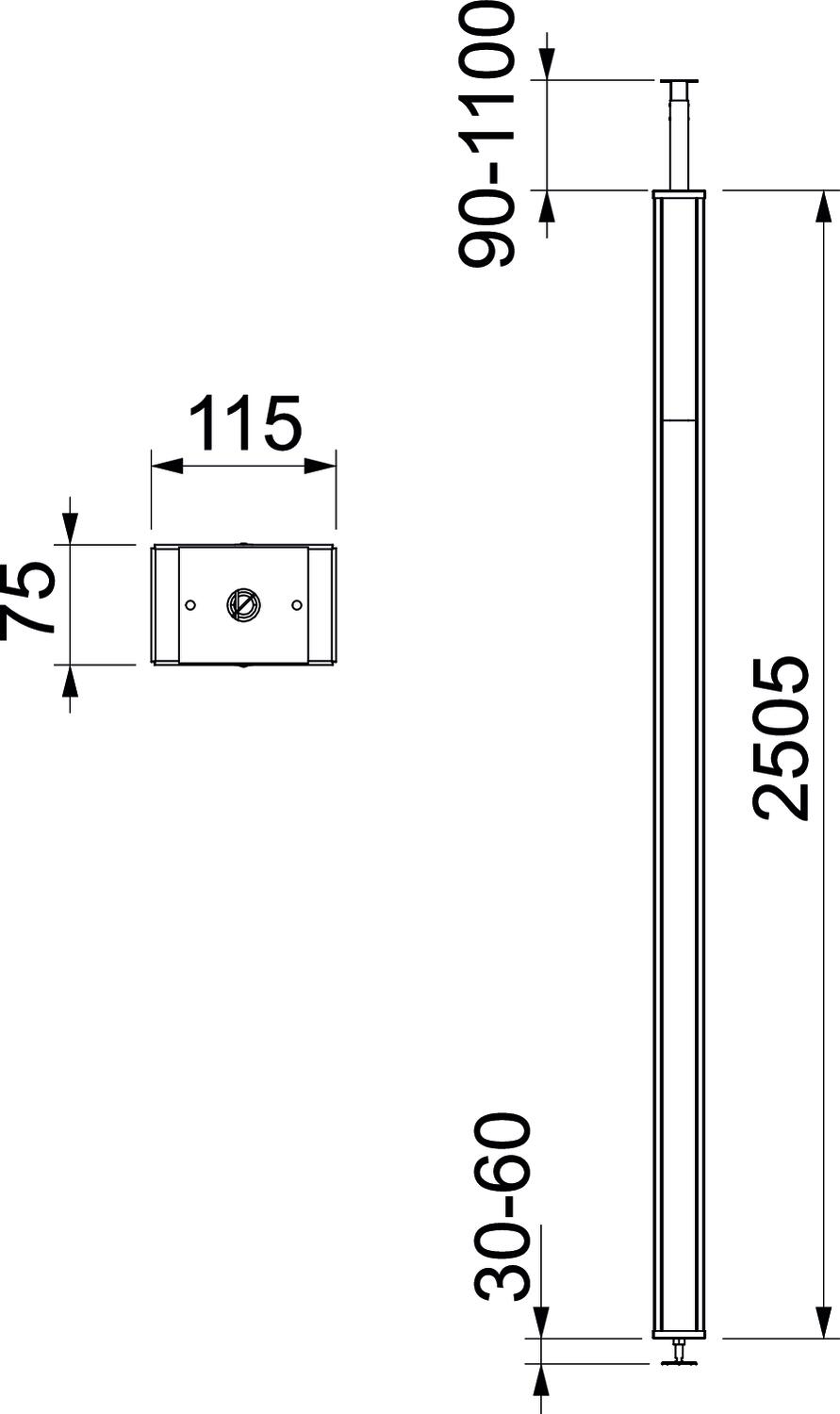

Dimension	2505x115x75
Fastening type	Telescope
Floor mounting	no
Halogen-free	no
Height	75 mm

Height compensation, max.	1100 mm
Height compensation, min.	90 mm
Length	2505 mm
Material	Steel
Number of compartments	1 St.
Number of usable covers	1
Pole height, max.	3700 mm
Pole height, min.	2600 mm
Pole shape	Rectangular
Pre-wired	no
Version for	Single-sided
Width	115 mm

All types

All types

Types	Length	Fastening type	Material	Colour	Item no.
ISS70110STKRW	2505 mm	Telescope	Steel	Pure white; RAL 9010	6286540

Accessories

System accessories

Products	Types	Item no.
Cover screen	ISS98B	6286800
Clamp fastening	ISS98KF	6286802
Accessory mounting box 71GD6, single	71GD6	6288610
Accessory mounting box 71GD7-2, double	71GD7-2	6288608
