Serrated washer DIN 6798 A4 18 | 10.5 | 2.7 | M10
morepic-1 morepic-2 morepic-3

Serrated washer DIN 6798 A4

Item no. 3404381 | EAN 4012196095520

Product description
Product description
Serrated washer to DIN 6798, shape A.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0066 kg CO₂e / 1 Piece

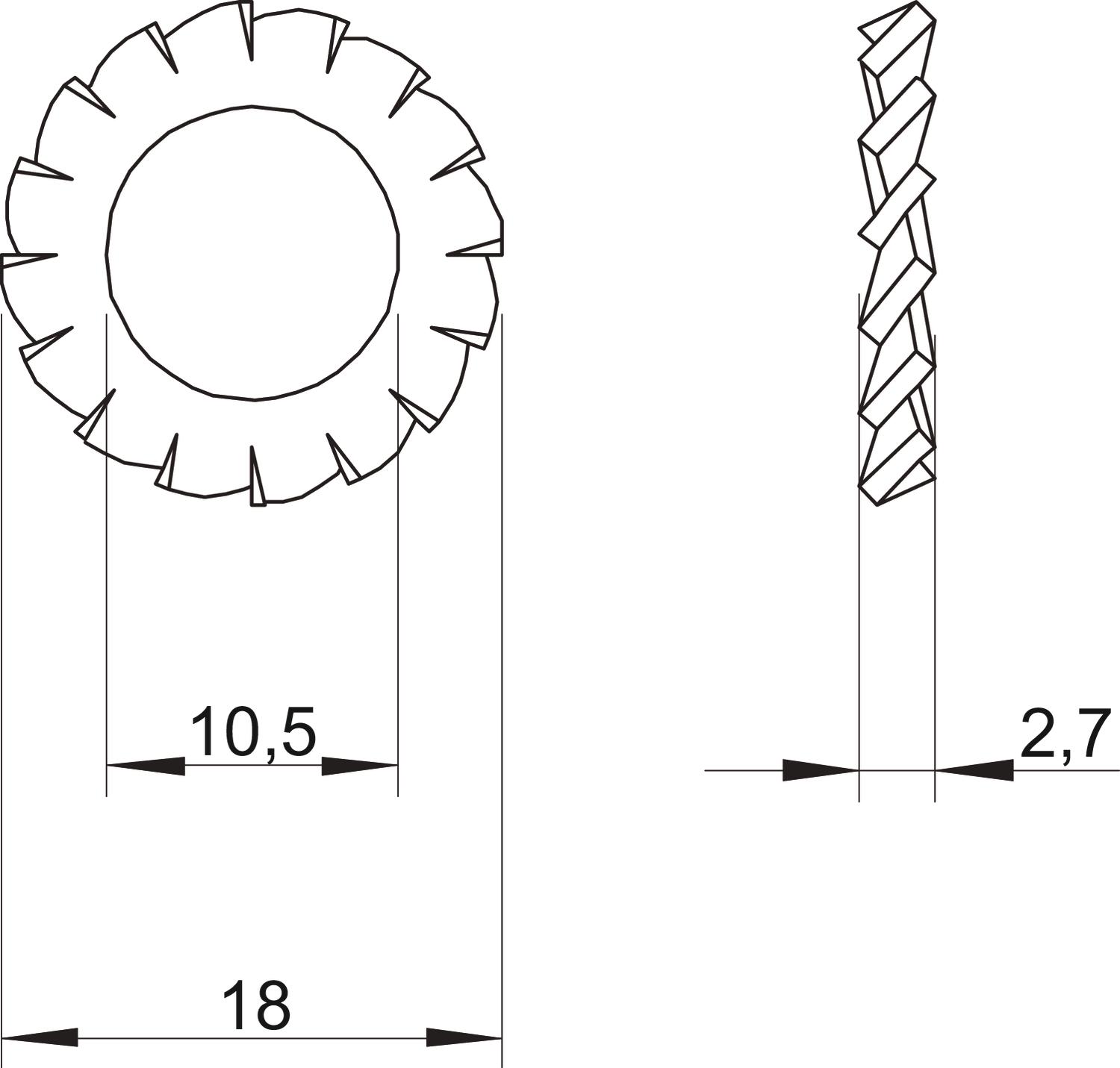

Dimension M10
Dimension d 10,5 mm
Dimension d max. 18 mm
Dimension d min. 18 mm
Dimension h 2,7 mm
External diameter 18 mm
Height 2,7 mm
Inner diameter 10,5 mm
Lock washer version Open external gearing
Material Stainless steel
Surface Bright, treated
Thickness 2,7 mm
Thread M10
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no.
SWS M6 A4 11 mm 6.4 mm 2.1 mm M6 3404372
SWS M8 A4 15 mm 8.4 mm 2.4 mm M8 3404377
SWS M10 A4 18 mm 10.5 mm 2.7 mm M10 3404381
SWS M12 A4 20.5 mm 13 mm 3 mm M12 3404385
Downloads

Download

Download

REACH Declaration of conformity SWS M10 A4 / 3404381 , 0.12MB , pdf
Download
RoHS Declaration of conformity SWS M10 A4 / 3404381 , 0.13MB , pdf
Download

SWS M10 A4 / 3404381
Download
