Series terminal clip
Item no. 2259745 | EAN 4012195616573
- Product description
-

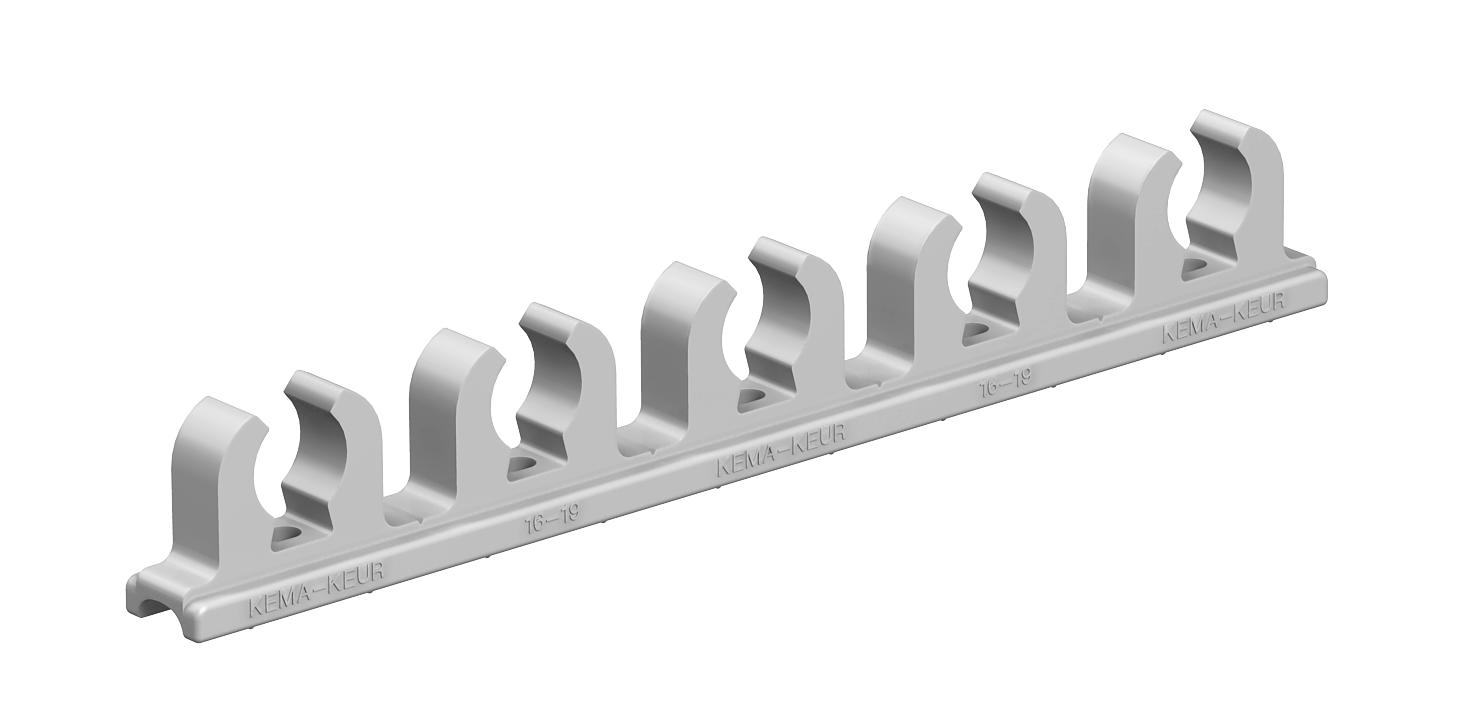

Product descriptionIndividually separable, for pushing into profile rails.
-
- Technical data
-
Technical data

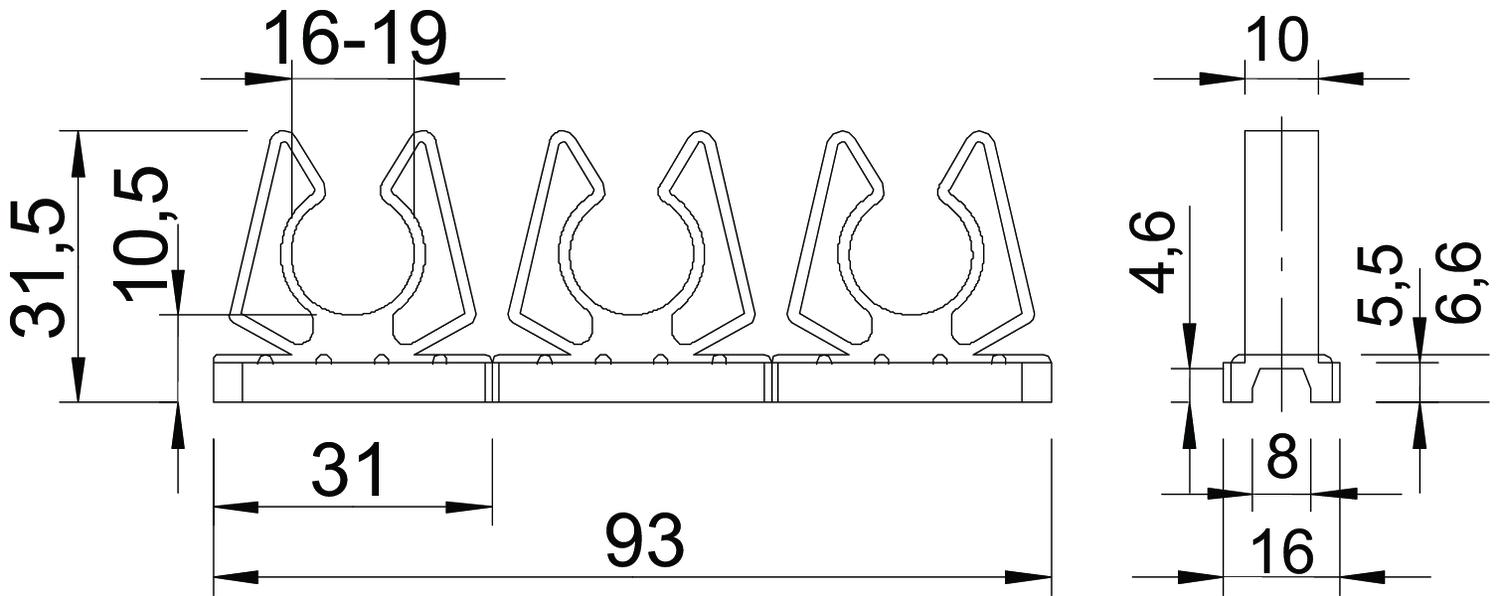

Clamping range D, max. 19 mm Clamping range D, min. 16 mm Colour Stone grey; RAL 7030 Dimension 16-19mm Dimension A 31 mm Dimension B 93 mm Dimension H 31,5 mm Dimension H1 10,5 mm Fastening type Rail fastening for rail with slot width (with interval), max. 12 mm for rail with slot width (with interval), min. 11 mm Halogen-free yes Impact-resistant no Material Polyethylene Number of cables/pipes 1 Number of clips per strip 3 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 2036 19 NL STGR / 2259745 , 0.19MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity 2036 19 NL STGR / 2259745 , 0.10MB , pdfREACH Declaration of conformity 2036 19 NL STGR / 2259745 , 0.12MB , pdfRoHS Declaration of conformity 2036 19 NL STGR / 2259745 , 0.13MB , pdf
