Separating piece, open, Cu Rd 8-10/16

morepic-1

morepic-2

morepic-3

Separating piece, open, Cu

Item no. 5335167 | EAN 4012195890119

Item no. / Types	5335167 / 223 O DIN MS

Fit	Rd 8-10/16 mm

Product description

Product description

• With 2 hexagonal bolts, stainless steel (VA)

• Clamping element, copper-plated die-cast zinc

Technical data

Technical data

Bimetal connector	no
CO2 Footprint (GWP) Cradle-to-Gate	0,1186 kg CO2e / 1 Piece
Dimension	8-10mmx16
Fit	Rd 8-10/16 mm

Intermediate plate	no
Material	Die-cast zinc

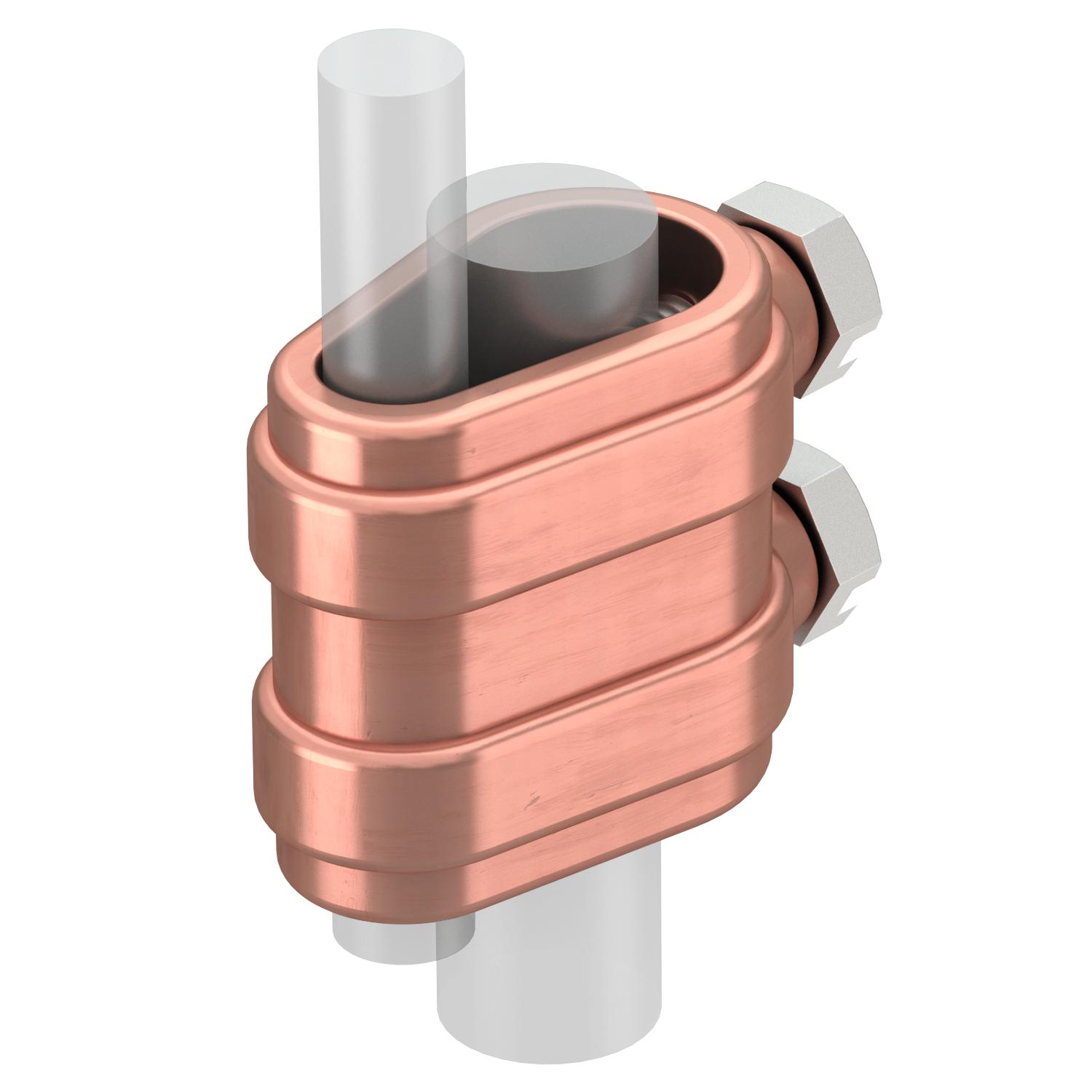

Suitable for connection	Round conductor Rd 8-10 / Rd 16
Surface	Copper-plated

All types

All types

Types	Fit	Item no.
223 O DIN MS	Rd 8-10/16 mm	5335167

Downloads

Data sheet 223 O DIN MS / 5335167 , 0.19MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity 223 O DIN MS / 5335167 , 0.06MB , pdf

Download

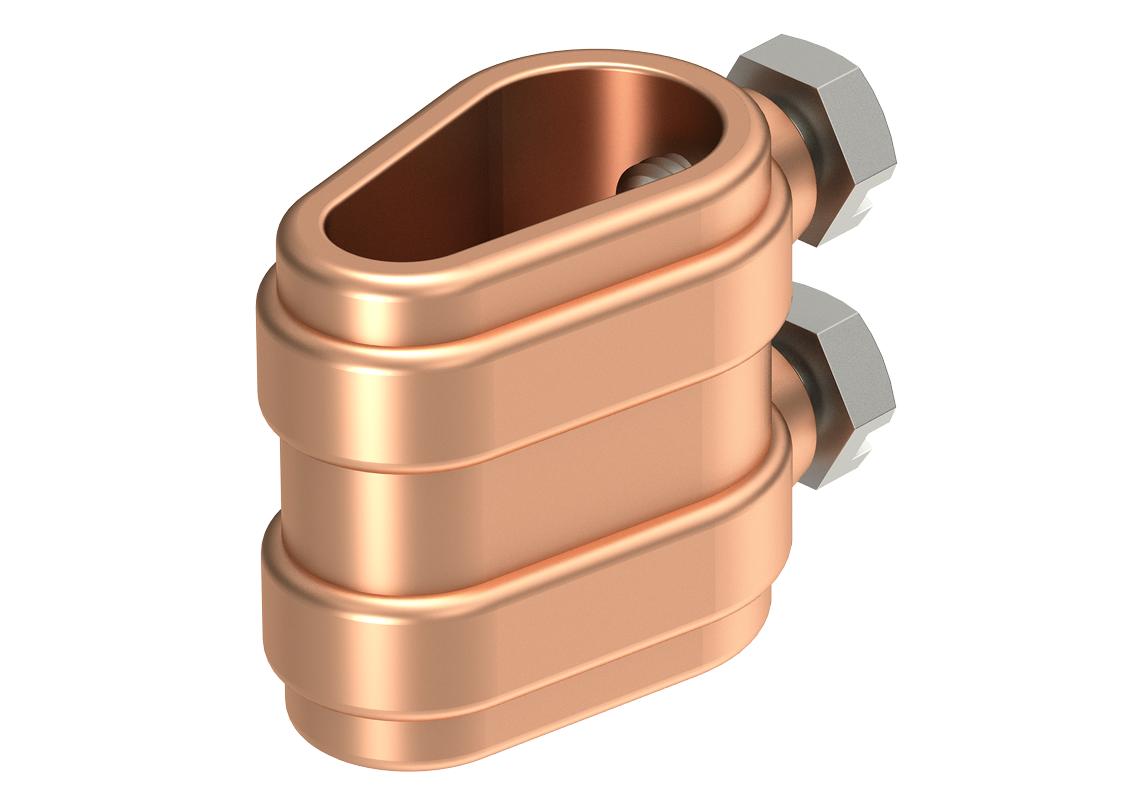

Product graphic 223 O DIN MS / 5335167, 42.43 kB, jpg

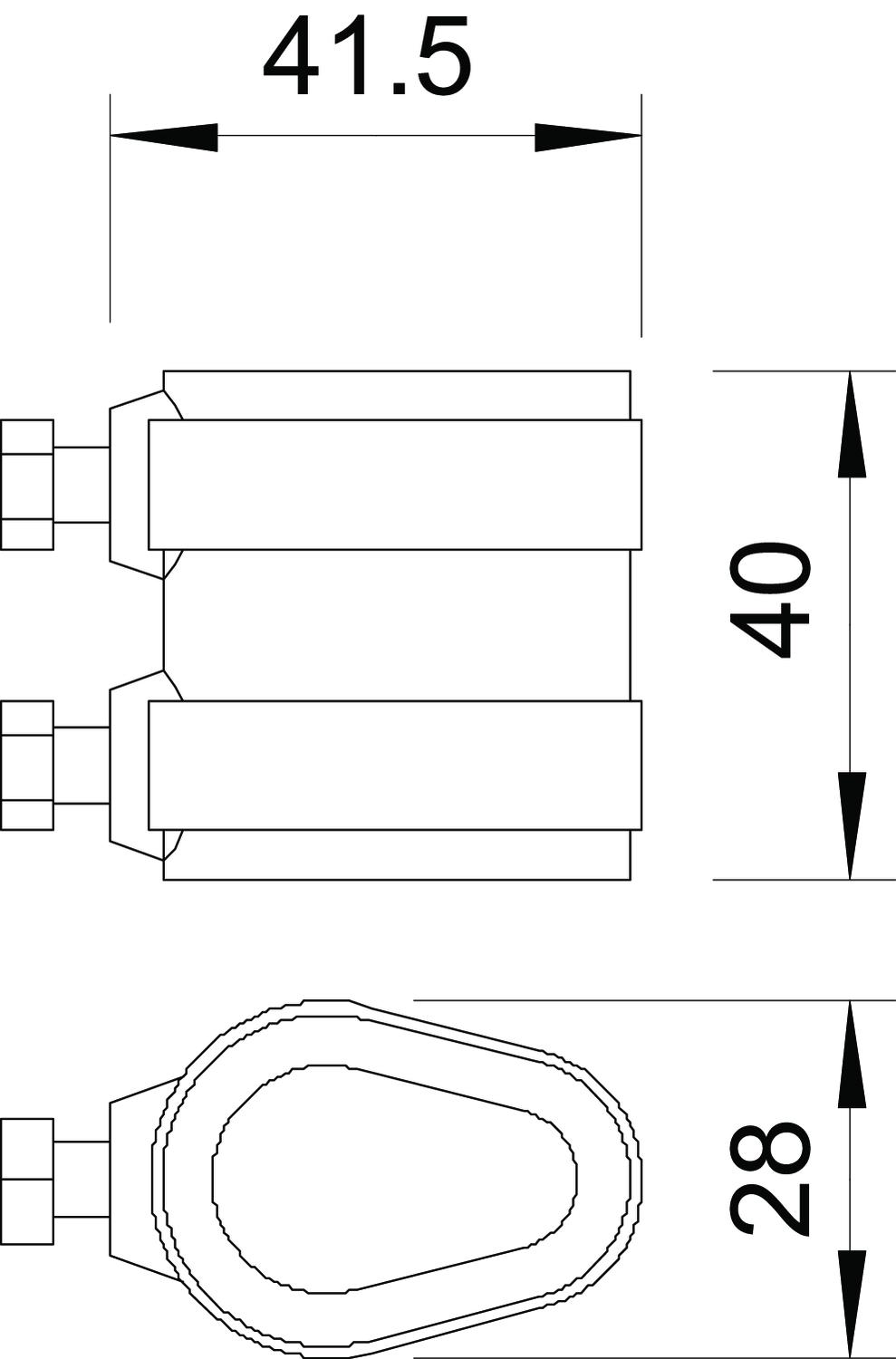

Scale drawing 223 O DIN MS / 5335167, 63.62 kB, jpg

223 O DIN MS / 5335167
