Screw plug M20 x 1,5
morepic-1 morepic-2

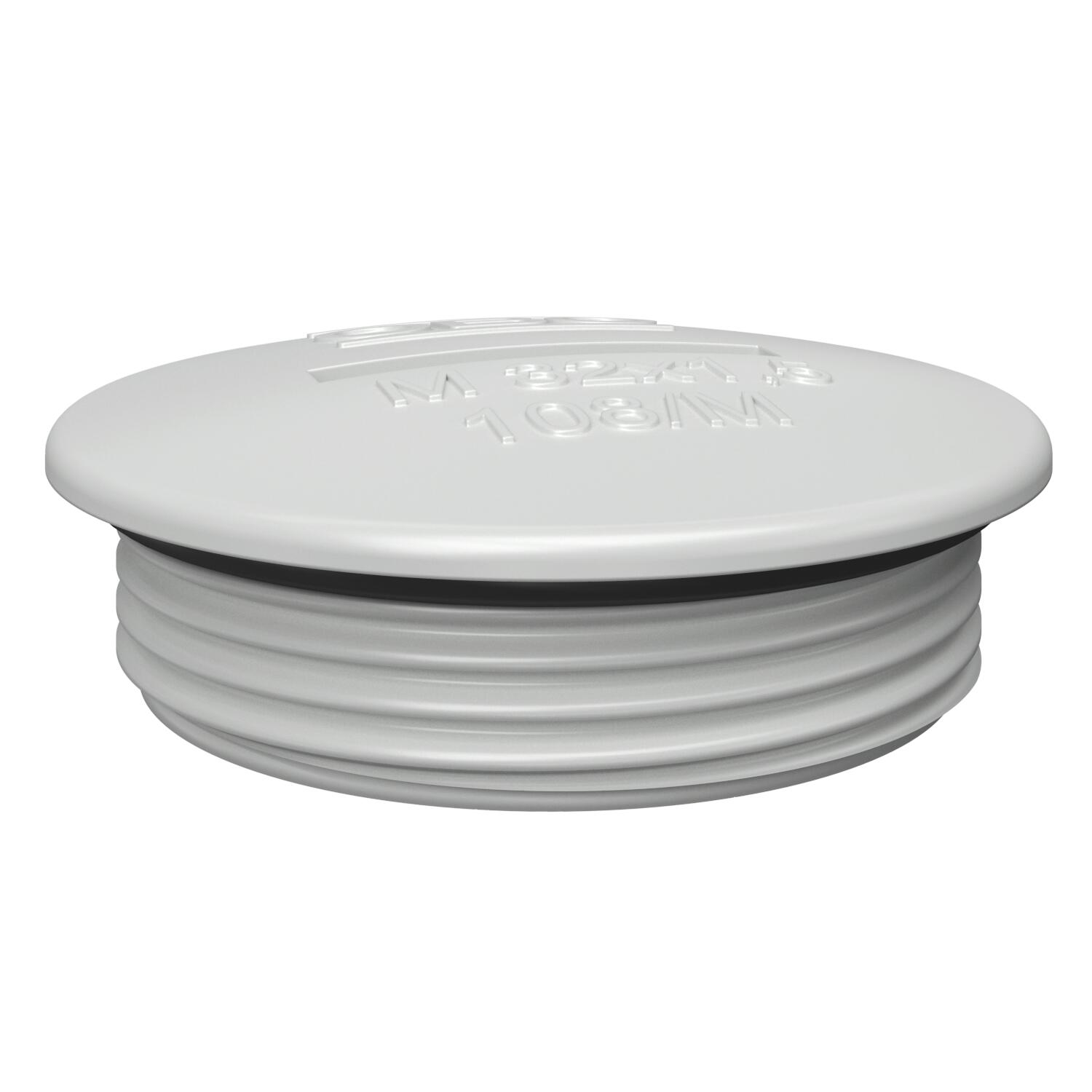

Screw plug

Item no. 2033505 | EAN 4012195649311

M20 x 1,5
Product description
Product description
Locking screw with metric thread and sealing ring to close off unused cable glands.
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035

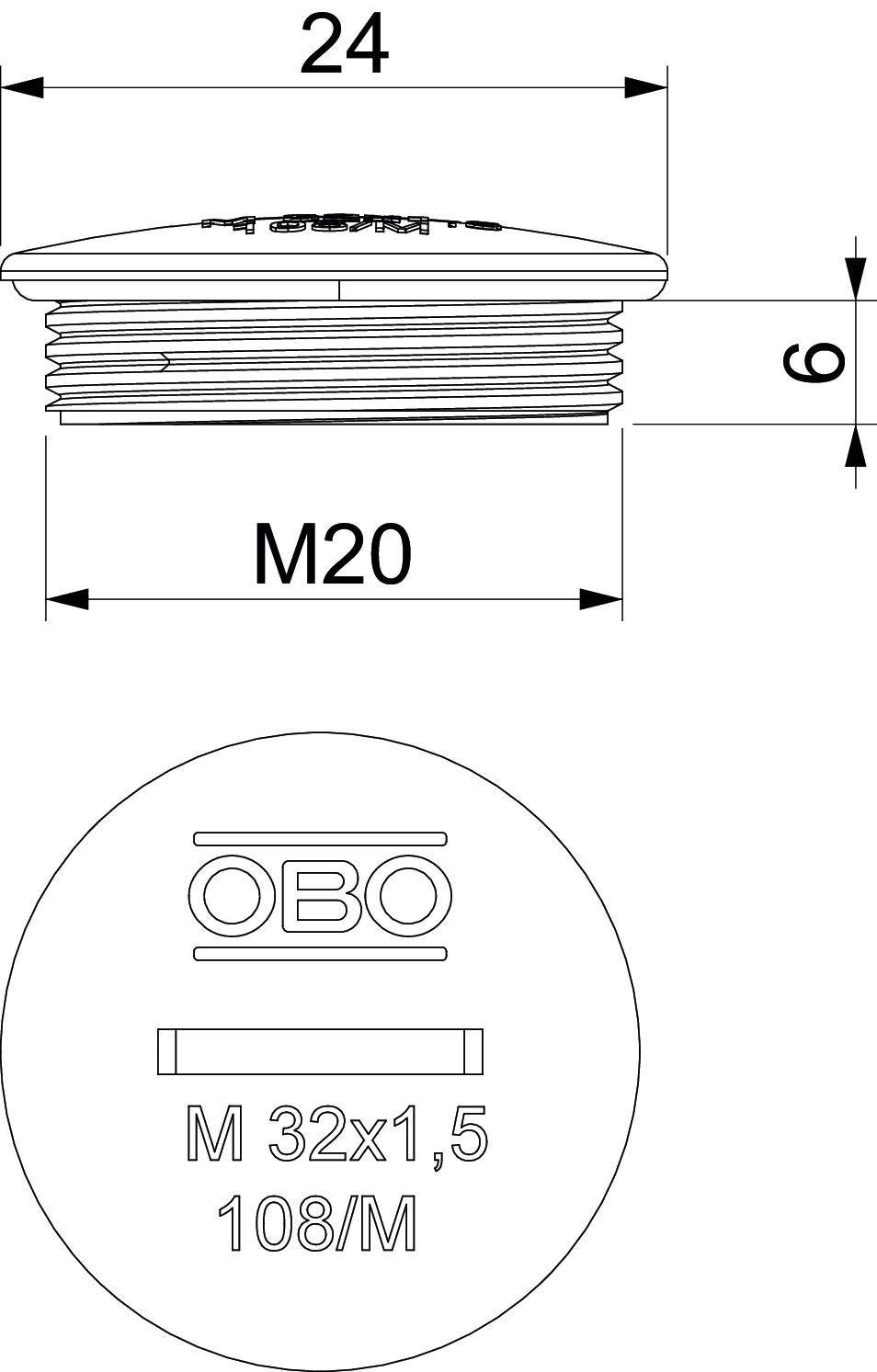

Dimension M20x1,5
Dimension D 24 mm
Dimension L 6 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Nominal thread size metric/PG 20
Protection rating IP68
Thread M20 x 1,5
Thread type Metric
Unstable torque 2,5 Nm
All types

All types

Types Thread Item no.
108 M20 MD LGR M20 x 1,5 2033505
108 M20 MD SW M20 x 1,5 2033507
Downloads

Download

Download
Download
Download

EU declaration of conformity 108 M20 MD LGR / 2033505 , 0.10MB , pdf
Download
EU declaration of conformity EU declaration of conformity ,
Download
UK Declaration of Conformity 108 M20 MD LGR / 2033505 , 0.09MB , pdf
Download
REACH Declaration of conformity 108 M20 MD LGR / 2033505 , 0.12MB , pdf
Download
RoHS Declaration of conformity 108 M20 MD LGR / 2033505 , 0.12MB , pdf
Download

108 M20 MD LGR / 2033505
