Bolt	M6 x 18
Clamping range D, max.	48,5 mm
Clamping range D, min.	45,5 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,2015 kg CO₂e / 1 Piece
Dimension	1 1/2"
Dimension A	88 mm
Dimension B	74 mm
Dimension D	48,3 mm
Dimension d min.	48,3 mm
Dimension t	2 mm
Dimension t1 (mm)	2,5
Dimension x	3 mm
Fastening type	Screw hole
For diameter	48,5

for pipe diameter	M50
Halogen-free	no
Hole size	M8 mm
Length	88 mm
Material	Steel
Material thickness	2,5 mm
Plastic-covered	no
Size	1 1/2"
Suitable in fire protection area	no
Surface	Hot-dip galvanised
Thread	M8
UV-resistant	yes
Version for	Closed
Width	20 mm

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.
2900WM8 17 FT	2 mm	M8 mm	16 mm	17 mm	Steel	Hot-dip galvanised	1387014
2900WM8 21.5 FT	2 mm	M8 mm	19 mm	21.5 mm	Steel	Hot-dip galvanised	1387030
2900WM8 27 FT	2 mm	M8 mm	24.5 mm	27 mm	Steel	Hot-dip galvanised	1387057
2900WM8 33.5 FT	2 mm	M8 mm	30.5 mm	33.5 mm	Steel	Hot-dip galvanised	1387065
2900WM8 42.5 FT	2 mm	M8 mm	39.5 mm	42.5 mm	Steel	Hot-dip galvanised	1387081
2900WM8 48.5 FT	2.5 mm	M8 mm	45.5 mm	48.5 mm	Steel	Hot-dip galvanised	1387111
2900WM8 60 FT	2.5 mm	M8 mm	56 mm	60 mm	Steel	Hot-dip galvanised	1387138
2900WM8 75.5 FT	3 mm	M8 mm	71.5 mm	75.5 mm	Steel	Hot-dip galvanised	1387154
2900WM8 88 FT	3 mm	M8 mm	83 mm	88 mm	Steel	Hot-dip galvanised	1387170

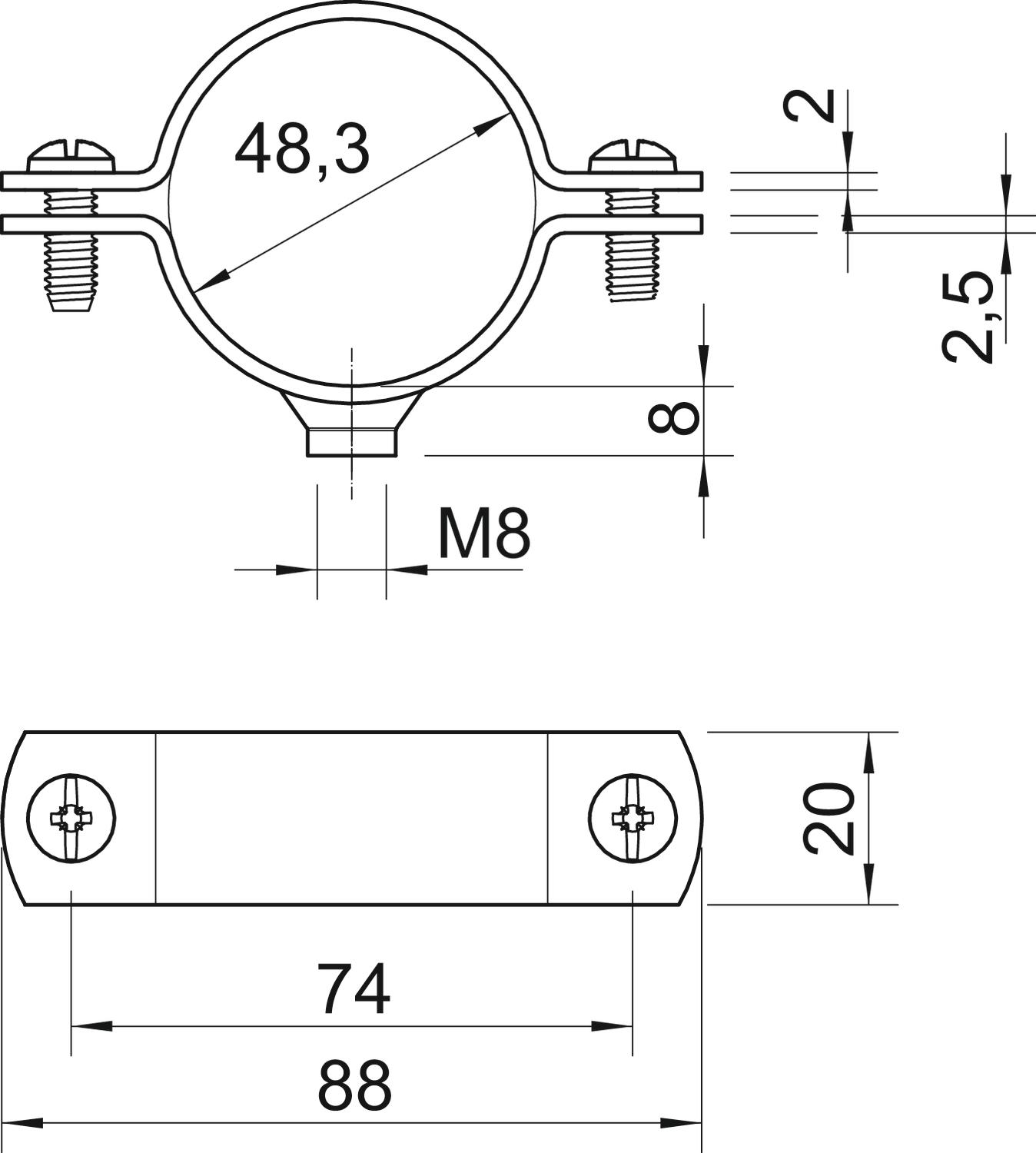

Screw-in spacer clip, heavy-duty version M8

All types
