Screw-in nipple, PG thread, with perforation membrane Pg 13,5
morepic-1 morepic-2

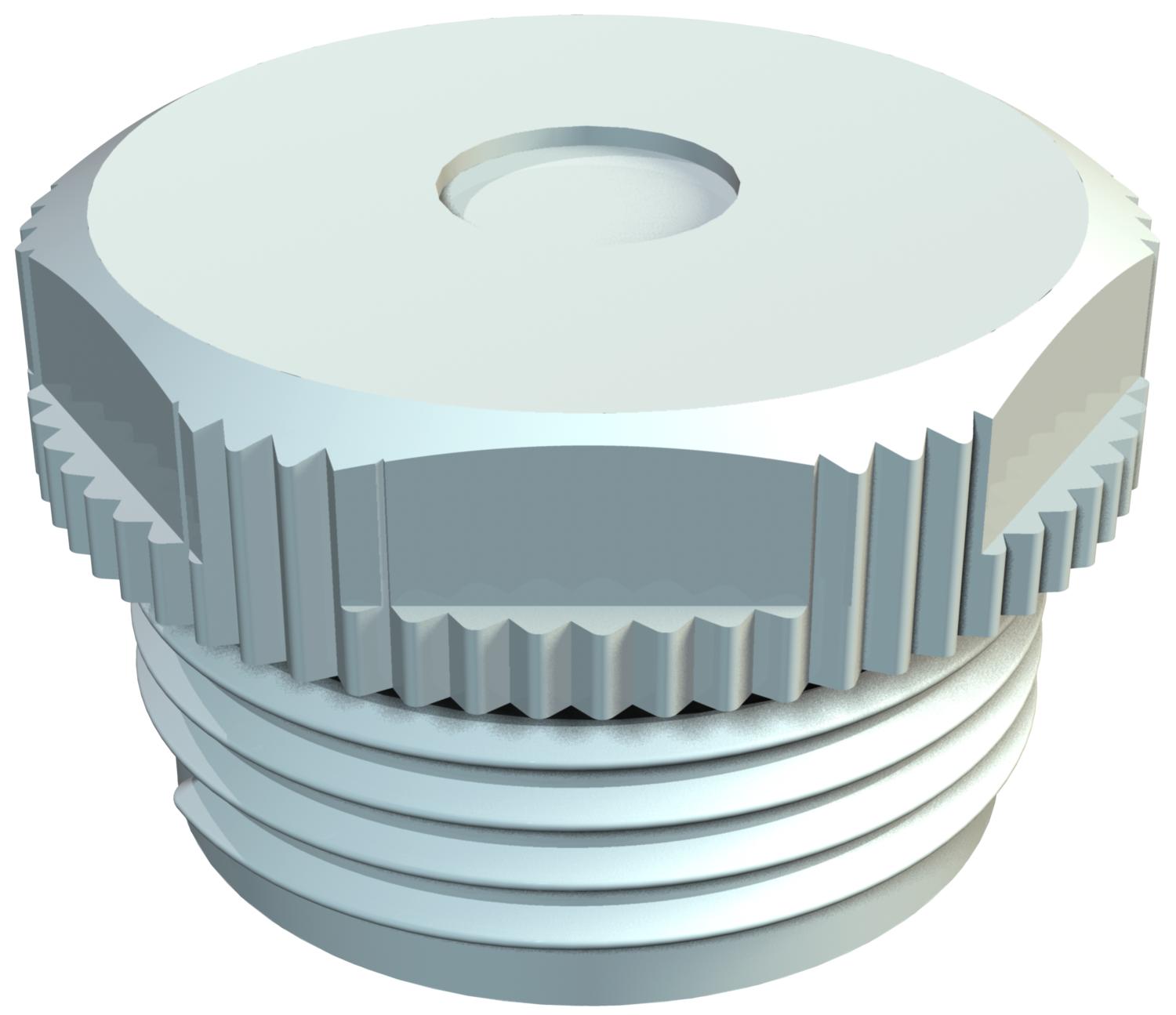

Screw-in nipple, PG thread, with perforation membrane

Item no. 2032538 | EAN 4012195169932

Product description
Product description
With perforation membrane, the opening D is pre-marked, but closed.

Grip seal to screw into PG thread to DIN 40430.

With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required. Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread Pg
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0065 kg CO₂e / 1 Piece
Colour Light grey; RAL 7035

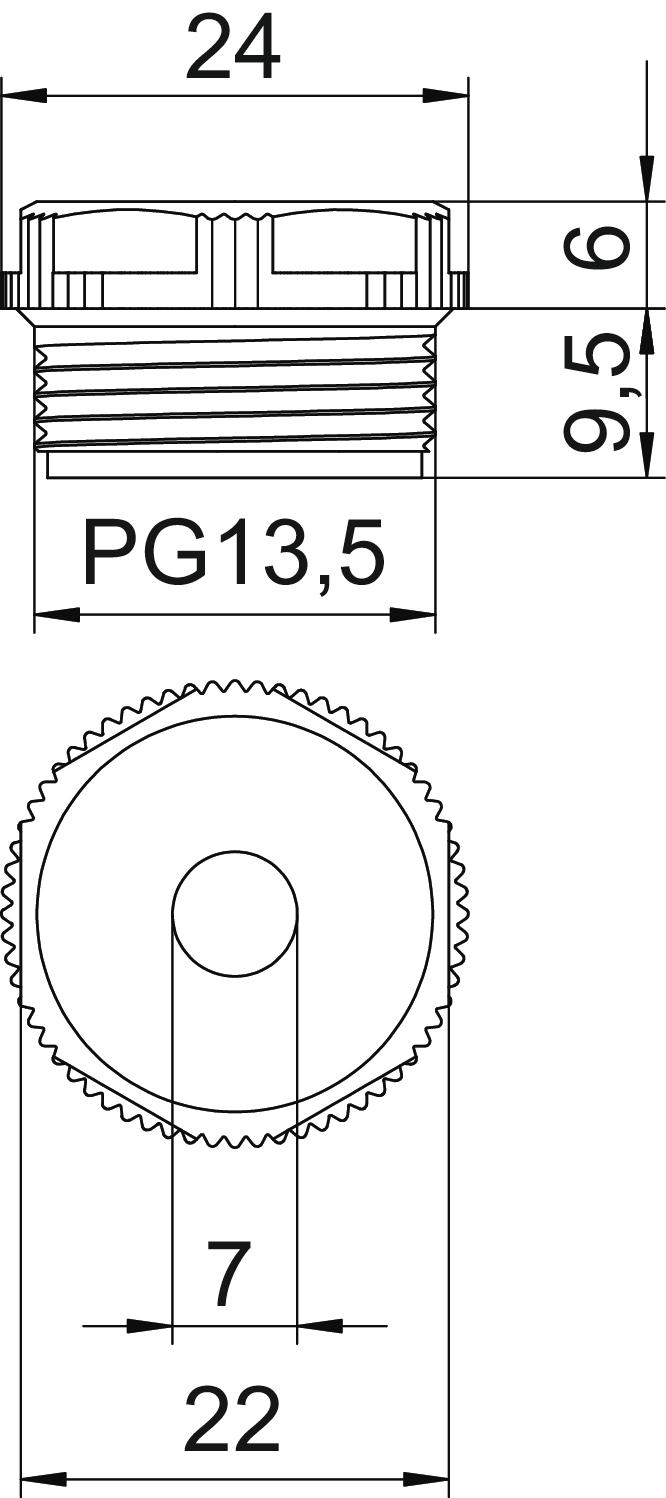

Dimension PG13,5
Dimension D 7 mm
Dimension E 24 mm
Dimension L1 9,5 mm
Dimension L2 6 mm
Halogen-free yes
Material Polyethylene
Protection rating IP54
Size Pg 13,5
Thread length 9,5 mm
WAF 22
All types

All types

Types Size Item no.
90 PG 9 DSMB Pg 9 2032503
90 PG11 DSMB Pg 11 2032511
90 PG13.5 DSMB Pg 13,5 2032538
90 PG16 DSMB Pg 16 2032546
90 PG21 DSMB Pg 21 2032554
90 PG29 DSMB Pg 29 2032562
