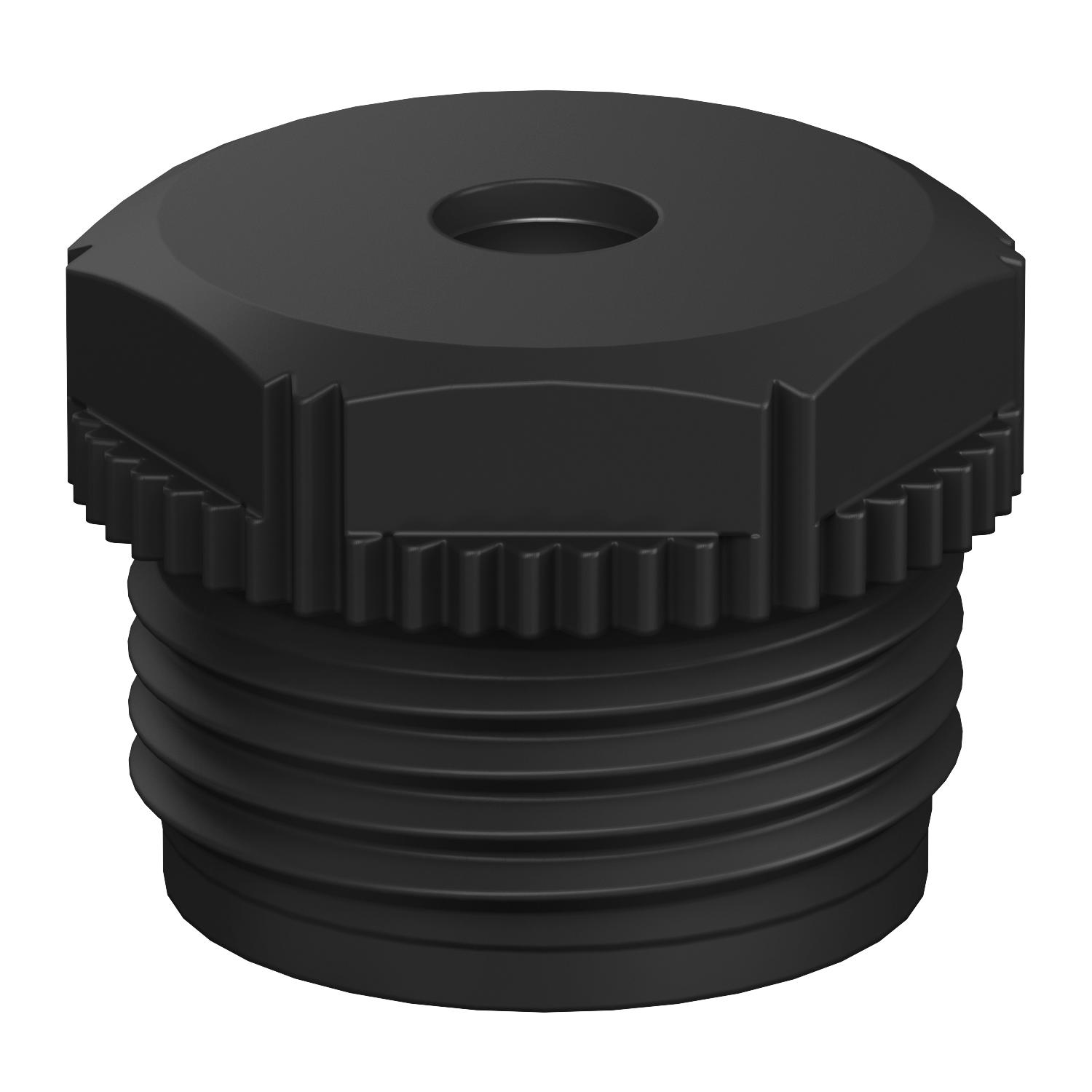

Screw-in nipple, metric thread, with opening
Item no. 2032619 | EAN 4012195566410
- Product description
-
Product descriptionGrip seal to screw into metric thread end to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring is required.
Achievable protection rating with careful mounting IP54.
With open cable entry
-
- Technical data
-
Technical data

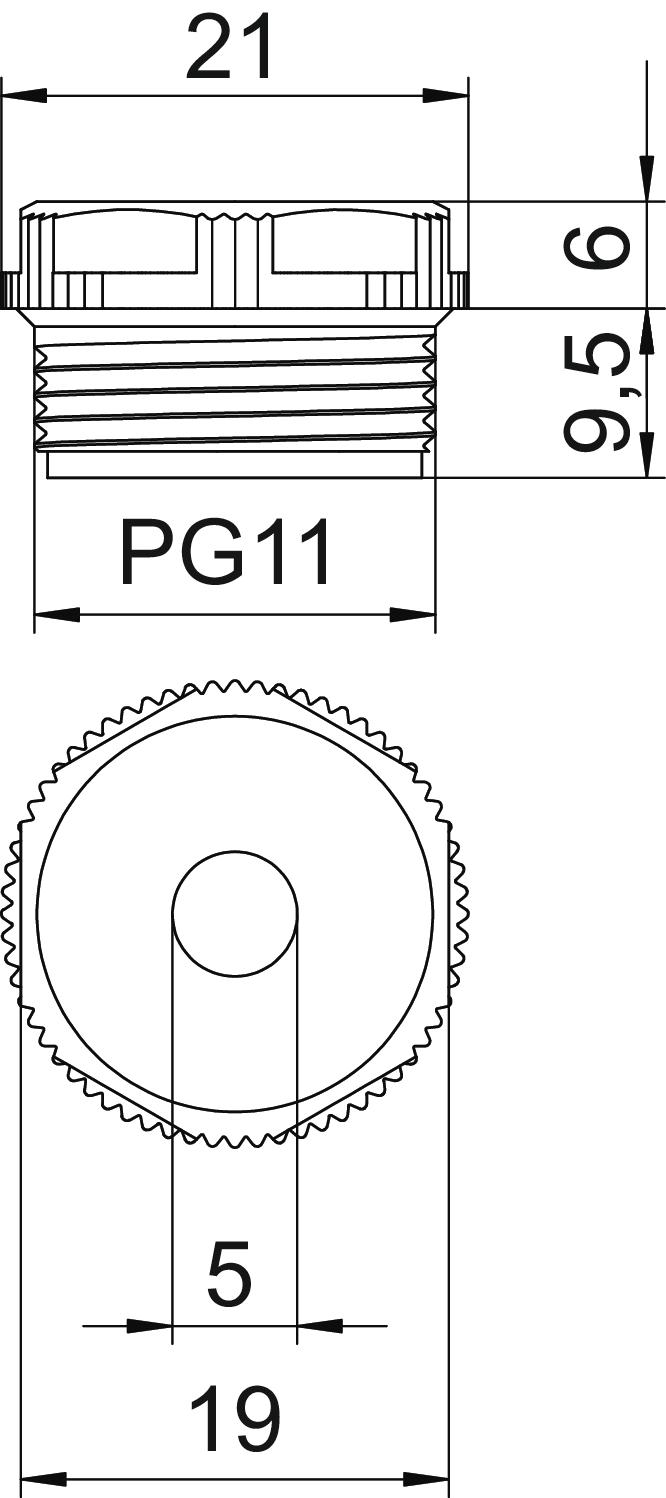

Colour Black Dimension PG11 Halogen-free no Material Polyethylene Protection rating IP54 Size PG11 - All types
- Downloads
-
Data sheet 90 PG11 OF SW / 2032619 , 0.19MB , pdfREACH Declaration of conformity 90 PG11 OF SW / 2032619 , 0.12MB , pdfRoHS Declaration of conformity 90 PG11 OF SW / 2032619 , 0.13MB , pdf
