Screw-in nipple, metric thread, with opening
Item no. 2032019 | EAN 4012195477792
- Product description
-
Product descriptionWith open cable entry.
Grip seal to screw into metric thread end to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With open cable entry.
-
- Technical data
-
Technical data

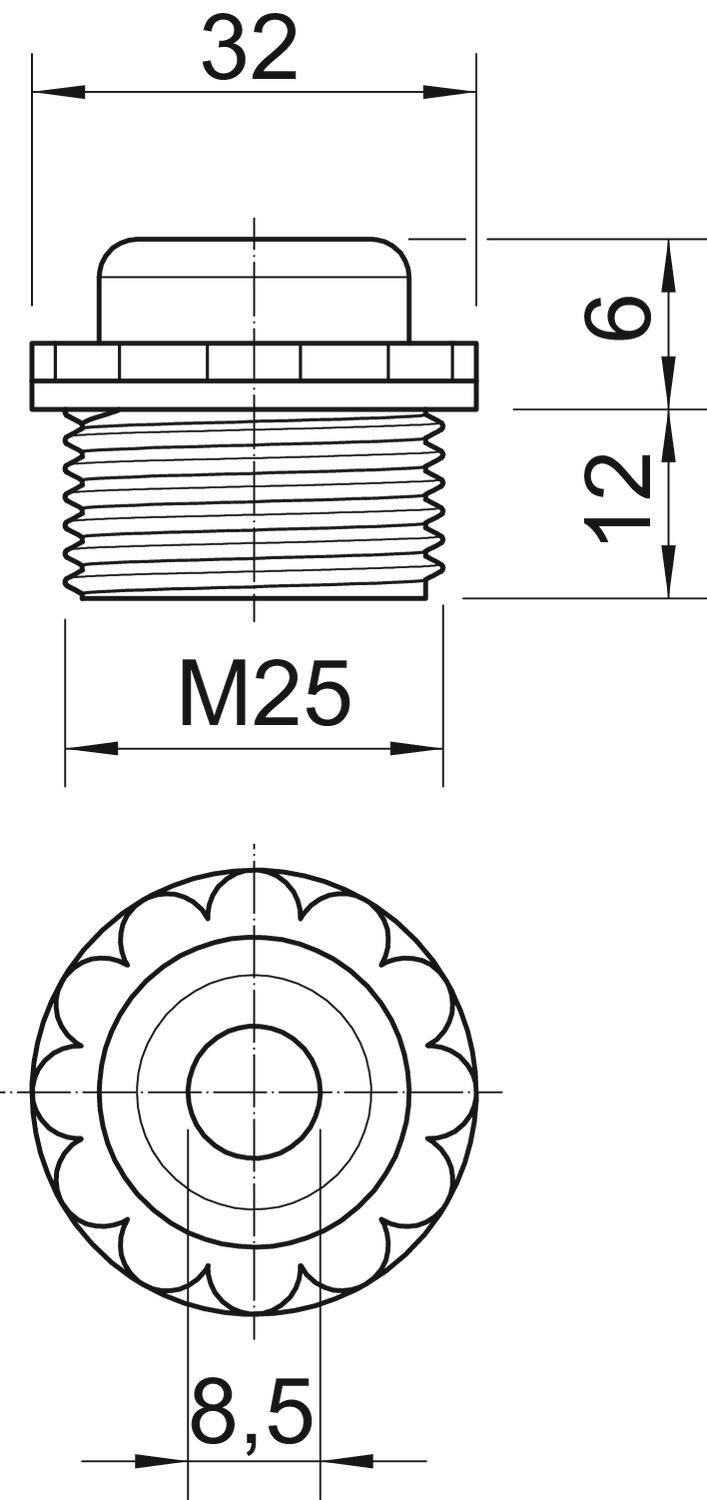

CO2 Footprint (GWP) Cradle-to-Gate 0,0108 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Dimension M25 Dimension D 8,5 mm Dimension E 32 mm Dimension L1 12 mm Dimension L2 6 mm Halogen-free yes Material Polyethylene Protection rating IP54 Size M25 Thread length 12 mm WAF 30 - All types
- Downloads
-
Data sheet 90 M25 OF / 2032019 , 0.16MB , pdfREACH Declaration of conformity 90 M25 OF / 2032019 , 0.12MB , pdfRoHS Declaration of conformity 90 M25 OF / 2032019 , 0.12MB , pdf
