Rung CK 40

Item no. 6008224 | EAN 4012196629718

Item no. / Types

Width

Product description

Product description

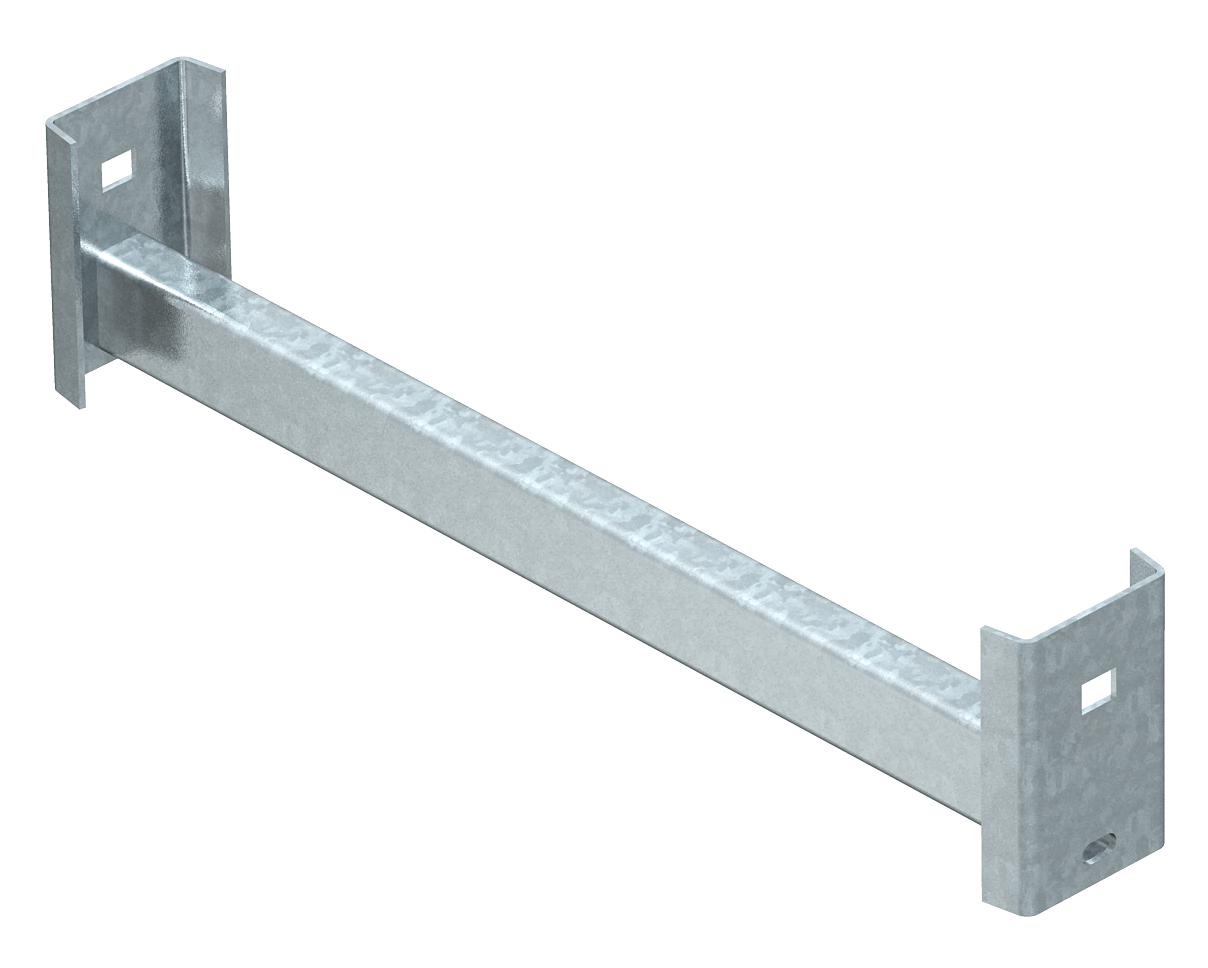

CK40 rung for use in heavy-duty vertical ladders and in IS 8 supports.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,2159 kg CO2e / 1 Piece
Colour	zinc

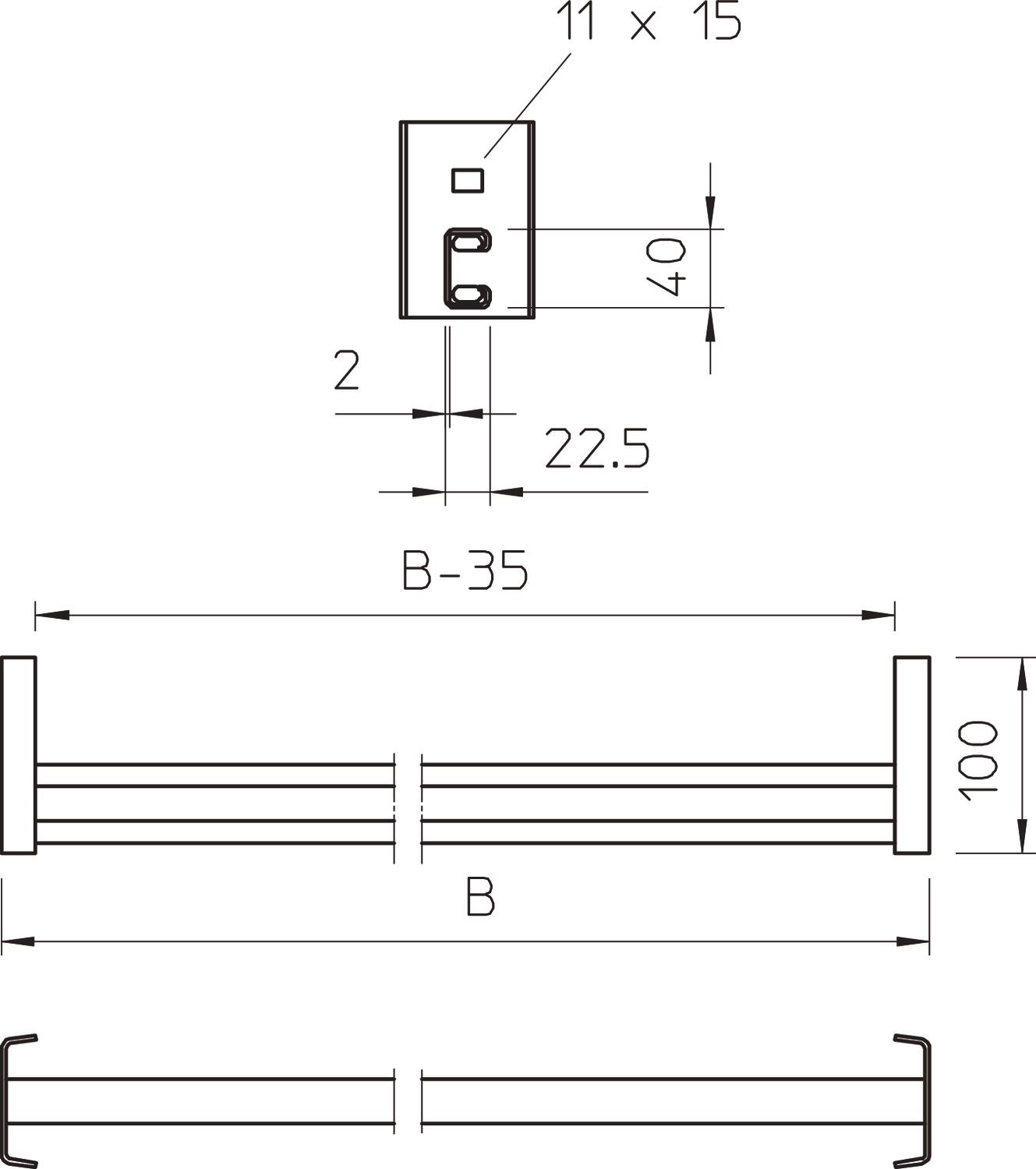

Dimension	B154mm
Height	100 mm
lampDimension WxH	40 x 22,5 mm
Length	154 mm

Material	Steel
Material thickness	2 mm
Slot width	18 mm
Surface	Hot-dip galvanised
Width	154 mm

All types

All types

Types	Width	Item no.
CK 40 20 FT	154 mm	6008224
CK 40 30 FT	254 mm	6008232
CK 40 40 FT	354 mm	6008240
CK 40 50 FT	454 mm	6008259
CK 40 60 FT	554 mm	6008267
CK 40 70 FT	654 mm	6008275
CK 40 80 FT	754 mm	6008283
CK 40 90 FT	854 mm	6008291
CK 40 100 FT	954 mm	6008305
CK 40 110 FT	1054 mm	6008313
CK 40 120 FT	1154 mm	6008321
