Roof conductor holder, suitable for direct bonding 100 | 60 | Rd 8-10
morepic-1 morepic-2 morepic-3 video-1

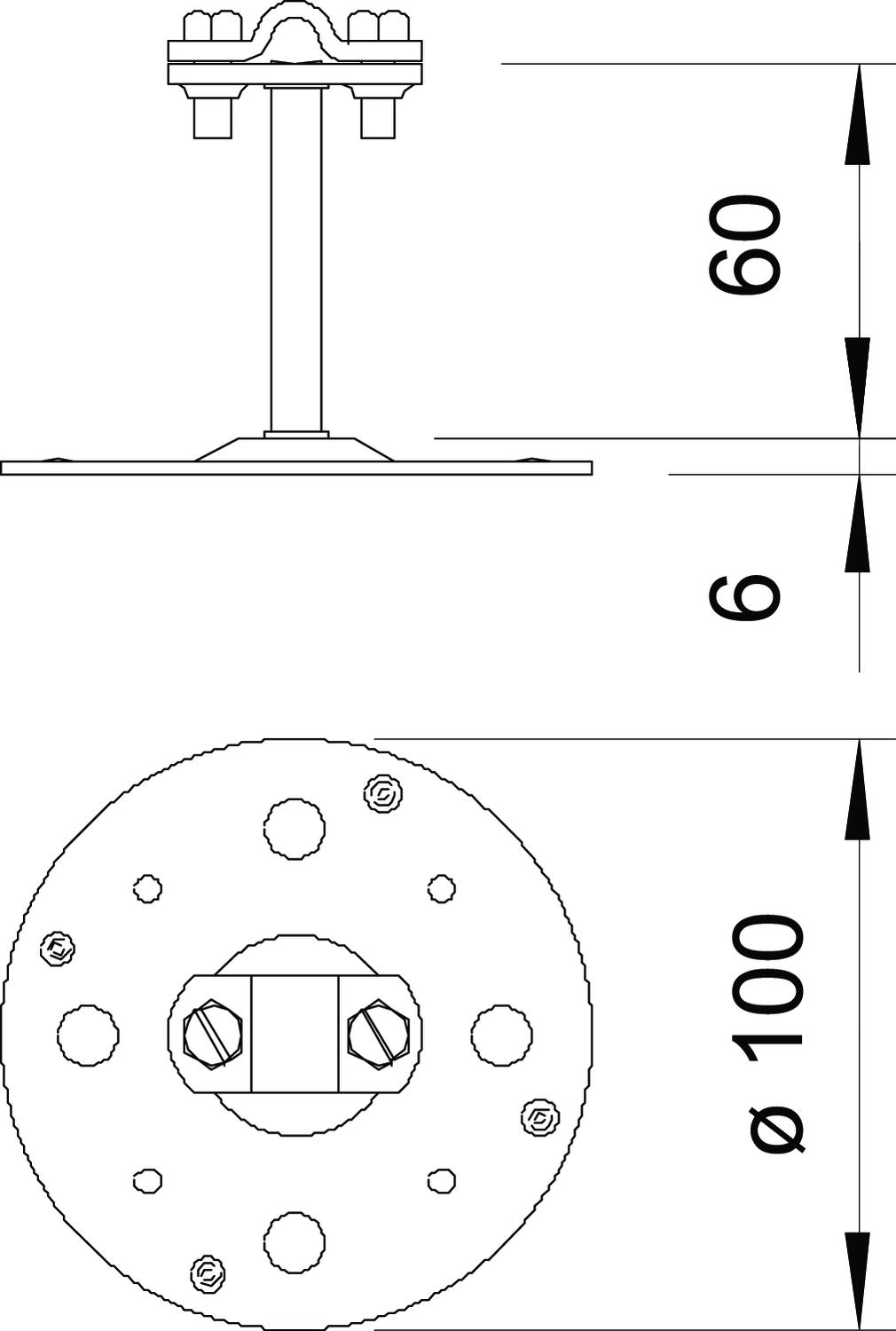

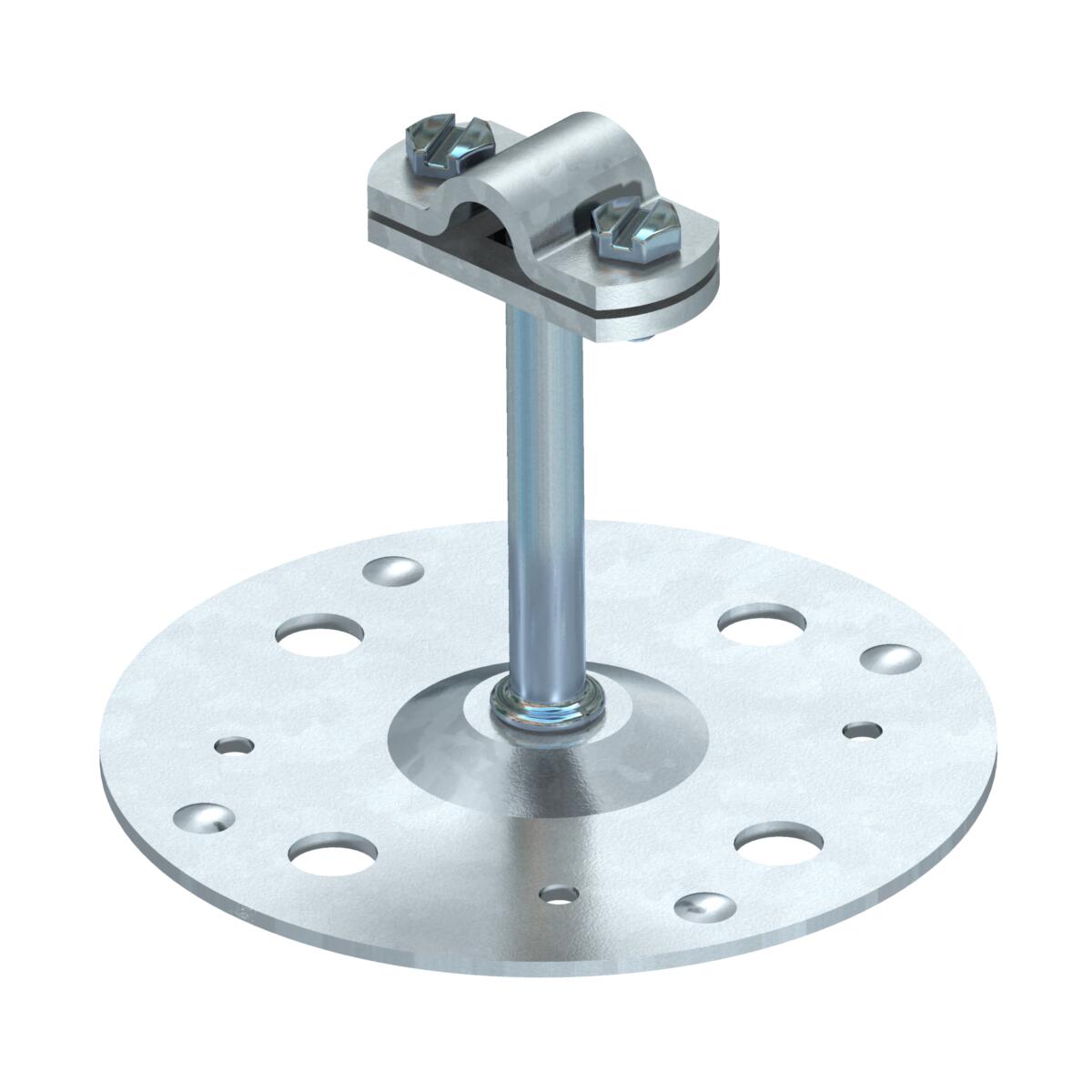

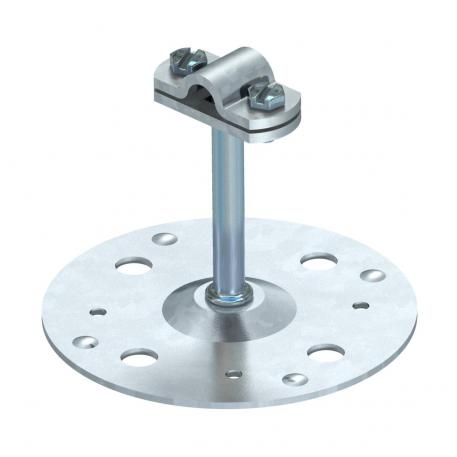

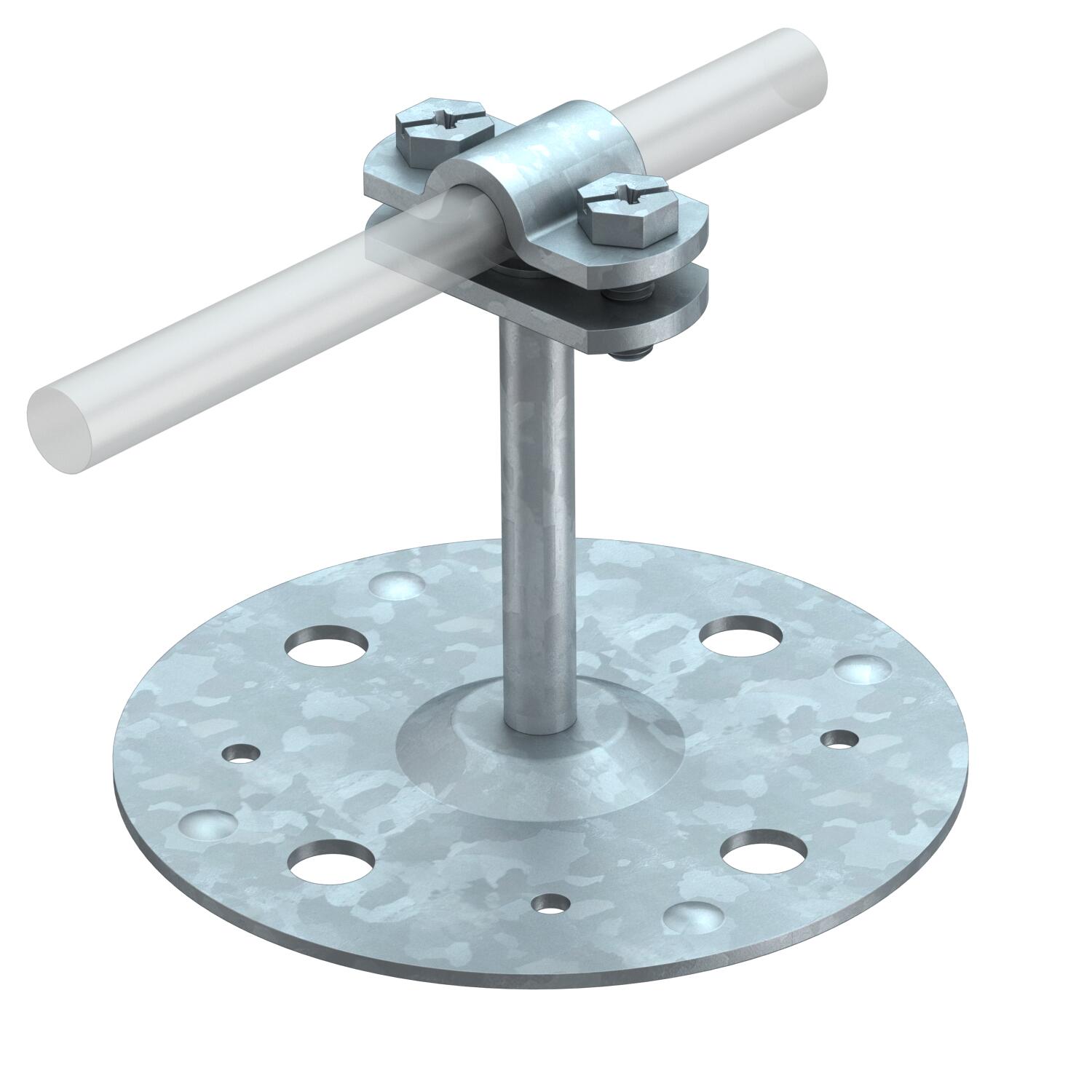

Roof conductor holder, suitable for direct bonding

Item no. 5218810 | EAN 4012195408918

100 mm
Rd 8-10 mm
Product description
Product description
• With conductor holder and bottom section, hot-dip galvanised steel
• Bottom section Ø 100 mm
Technical data

Technical data

Application Flat roof
CO2 Footprint (GWP) Cradle-to-Gate 0,5383 kg CO2e / 1 Piece
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With screw clip
Dimension 60mm
Dimension H 60 mm
Fit Rd 8-10 mm
Length 100 mm
Material Steel
Mounting height 60 mm
Mounting type Adhesive
Surface Hot-dip galvanised
All types

All types

Types Length Mounting height Fit Item no.
165 B 60 100 mm 60 mm Rd 8-10 mm 5218810
165 B 100 100 mm 100 mm Rd 8-10 mm 5218829
