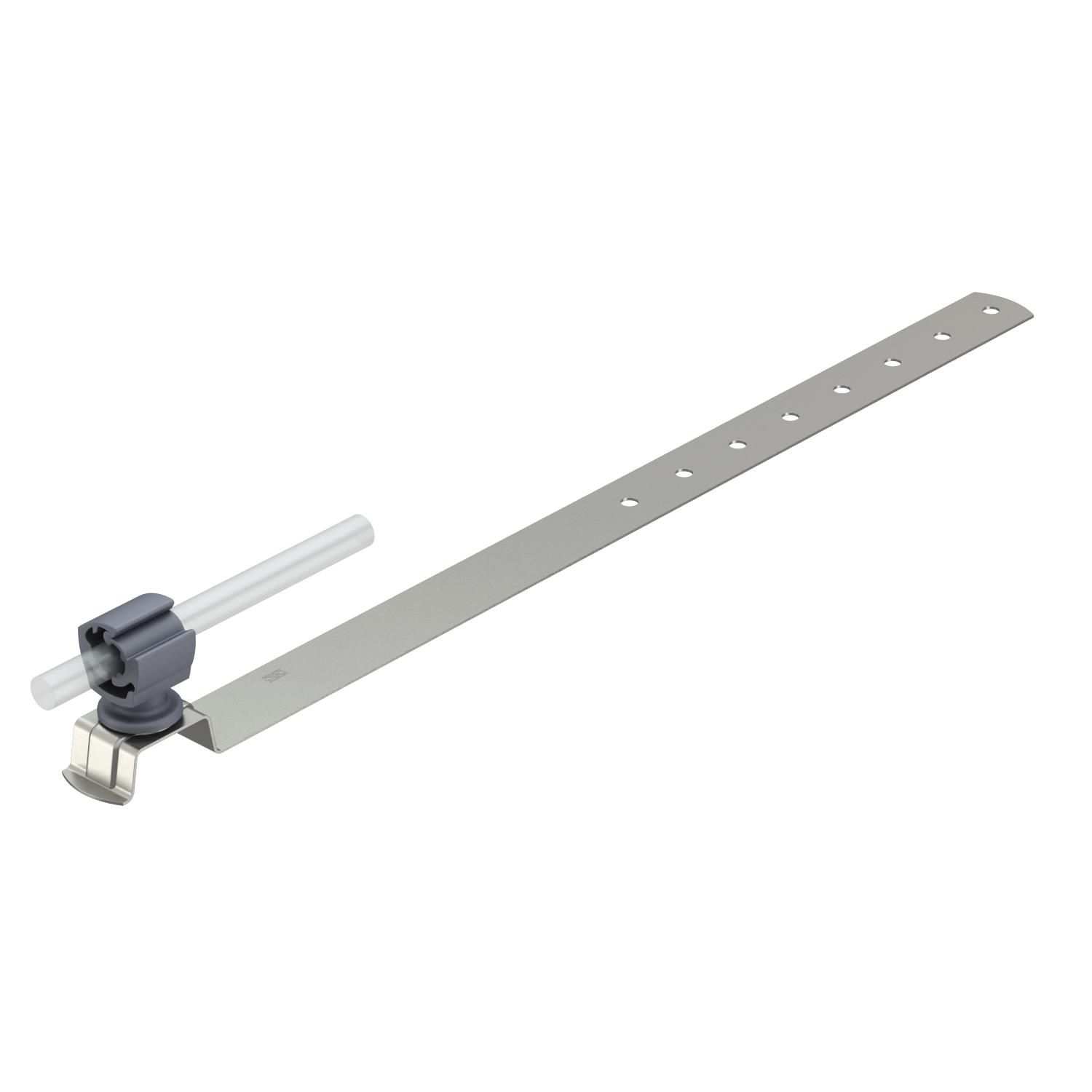

Roof conductor holder for tiled roofs, Rd 8−10
Item no. 5215609 | EAN 4012195812418
- Product description
-
Product description• Conductor holder of polyamide
• Including drill hole in bottom section for quick installation
- Technical data
-
Technical data

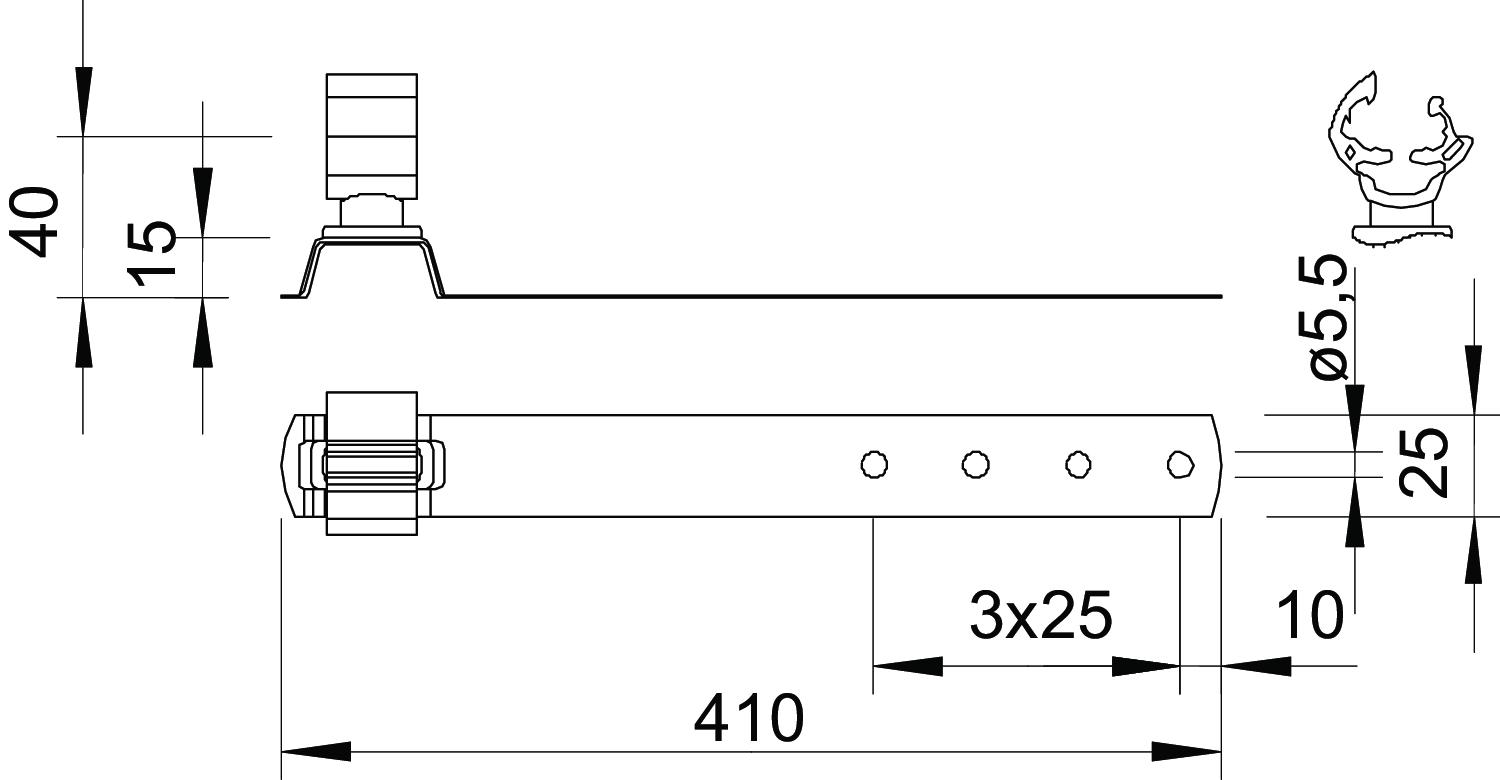

Application Roof surface CO2 Footprint (GWP) Cradle-to-Gate 0,4701 kg CO2e / 1 Piece Conductor diameter, max. 10 Conductor diameter, min. 8 Conductor fastening type With clamp clip Dimension 8mm Dimension L 410 mm Fit Rd 8-10 mm Length 410 mm Material Stainless steel Mounting height 40 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet 157 FK-VA 410 / 5215609 , 0.15MB , pdfEU declaration of conformity 157 FK-VA 410 / 5215609 , 0.06MB , pdfREACH Declaration of conformity 157 FK-VA 410 / 5215609 , 0.12MB , pdfRoHS Declaration of conformity 157 FK-VA 410 / 5215609 , 0.13MB , pdf
