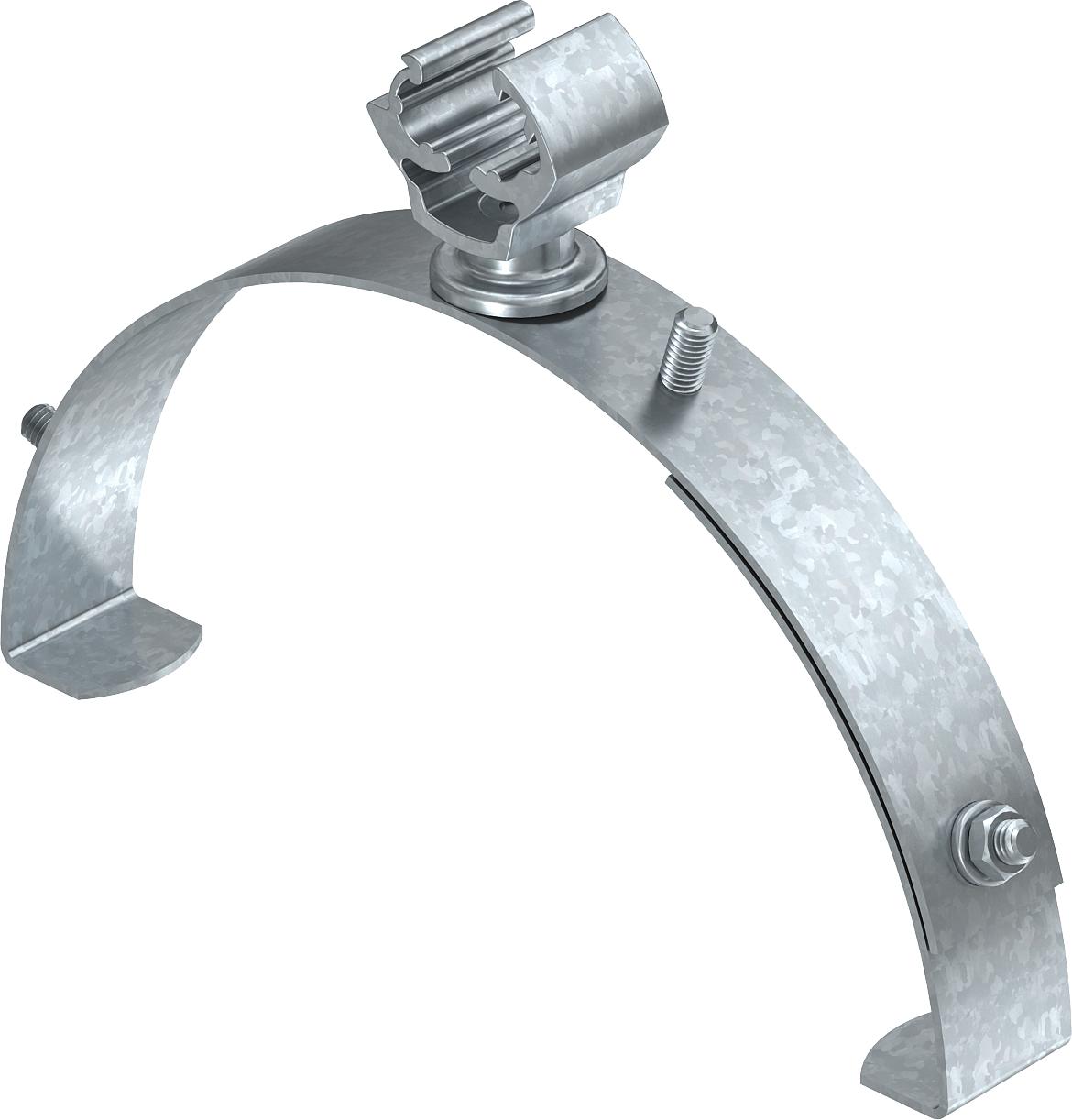

Roof conductor holder for ridge tiles, 180–240 mm, Rd 8–10, FT
Item no. 5202566 | EAN 4012195902294
- Product description
-

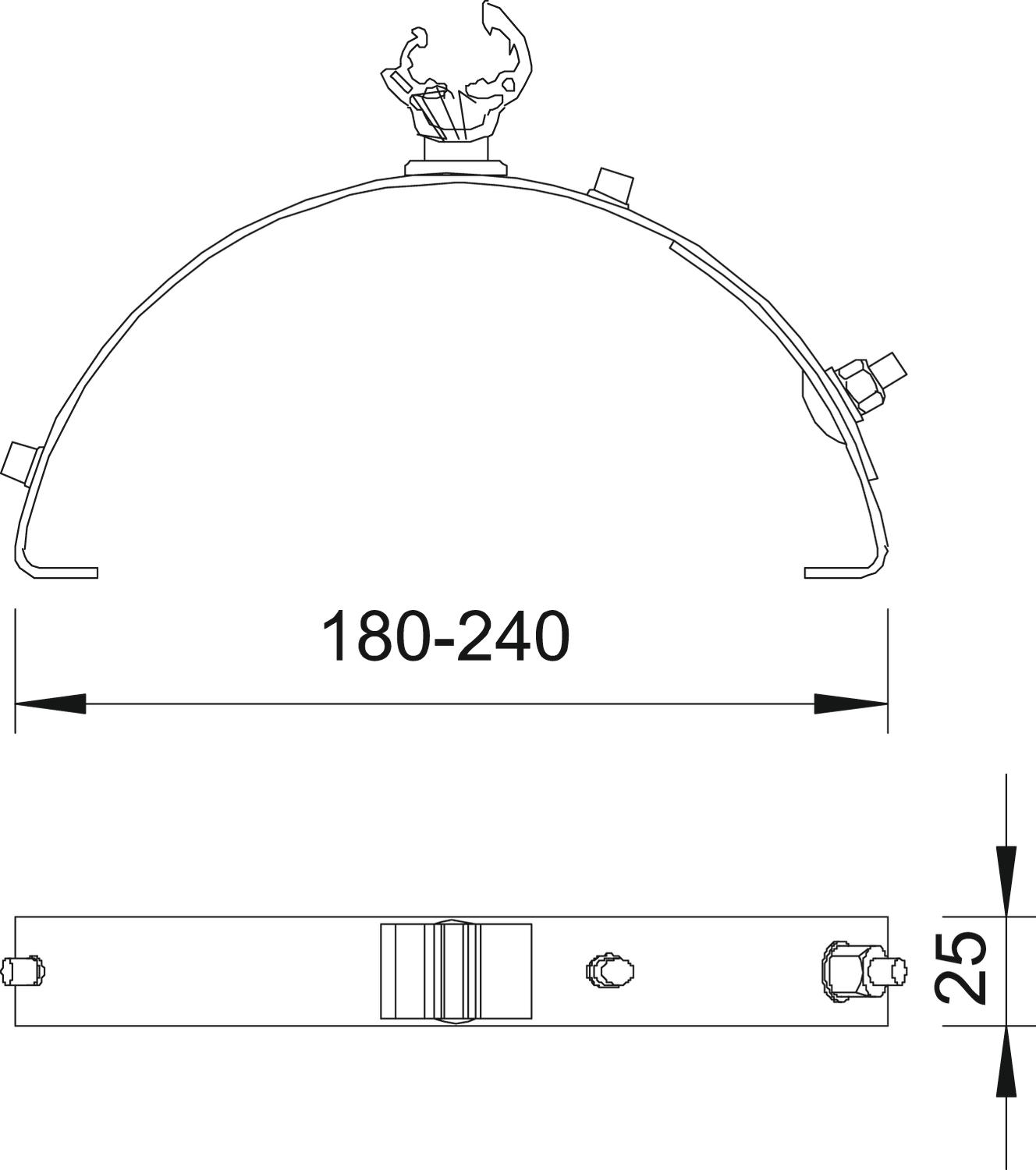

Product description• Adjustable from 180–240 mm

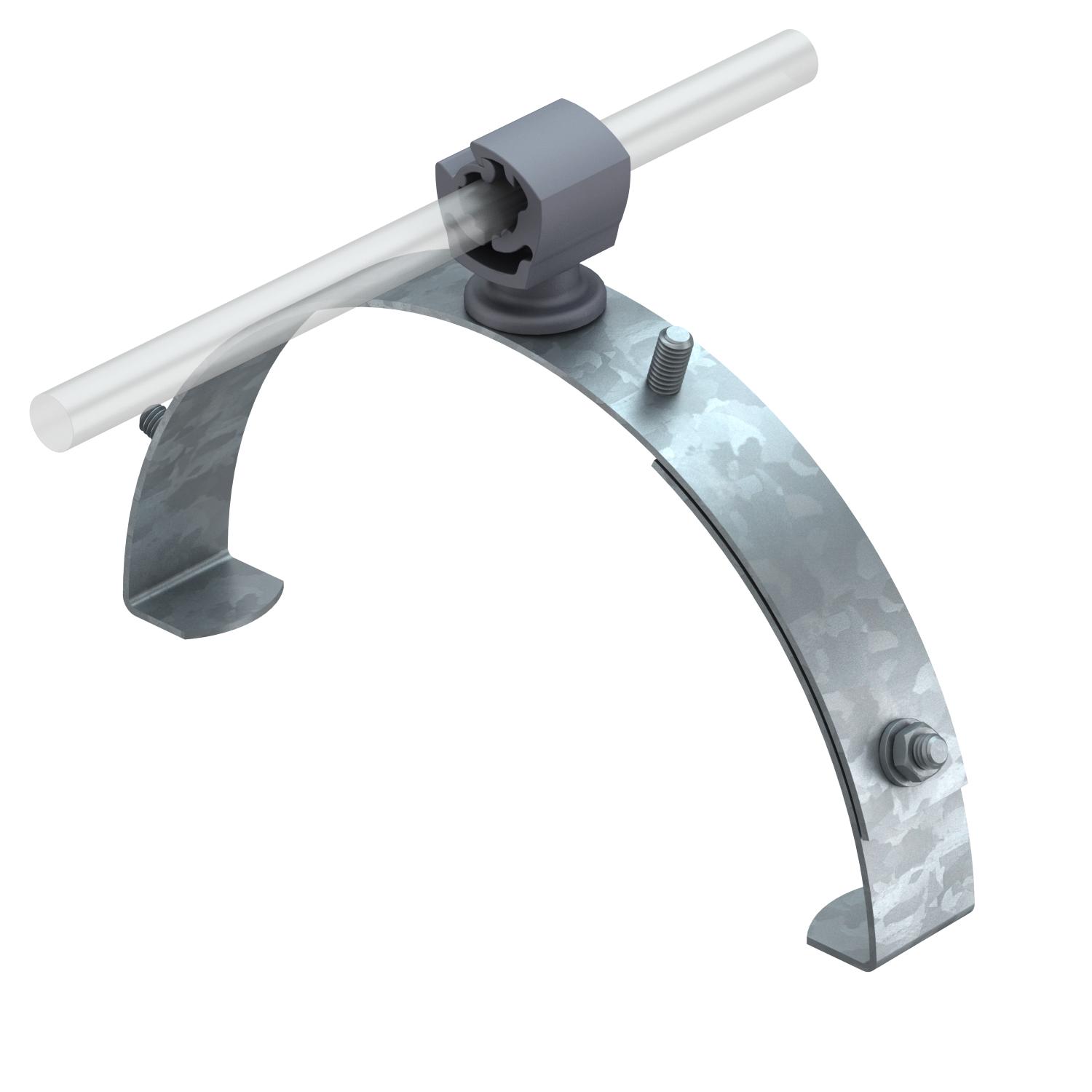

• With conductor 177/20, polyamide, grey
• With 3 M8 threaded nipples for positioning the holder
- Technical data
-
Technical data
Application Ridge Clamping range D, max. 240 mm Clamping range D, min. 180 mm CO2 Footprint (GWP) Cradle-to-Gate 0,4988 kg CO2e / 1 Piece Conductor diameter, max. 10 Conductor diameter, min. 8 Conductor fastening type With clamp clip Dimension 8mm Fit Rd 8-10 mm Material Steel Mounting height 20 mm Mounting type Tensionable Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet 132 N-DK / 5202566 , 0.18MB , pdfEU declaration of conformity 132 N-DK / 5202566 , 0.06MB , pdf
