Roof conductor holder for flat roofs, with raised cable bracket 140 | | Rd 8-10
morepic-1 morepic-2 morepic-3 video-1

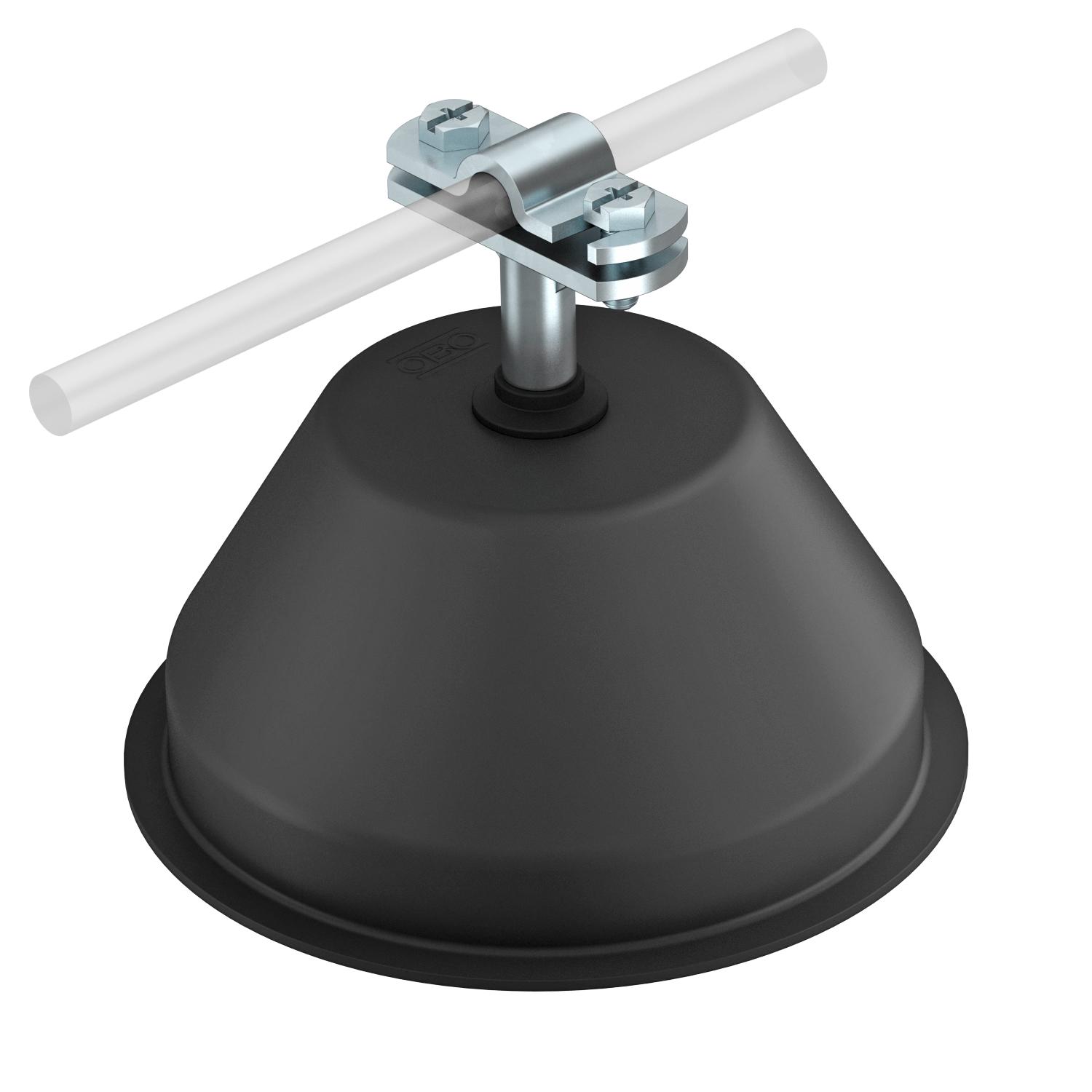

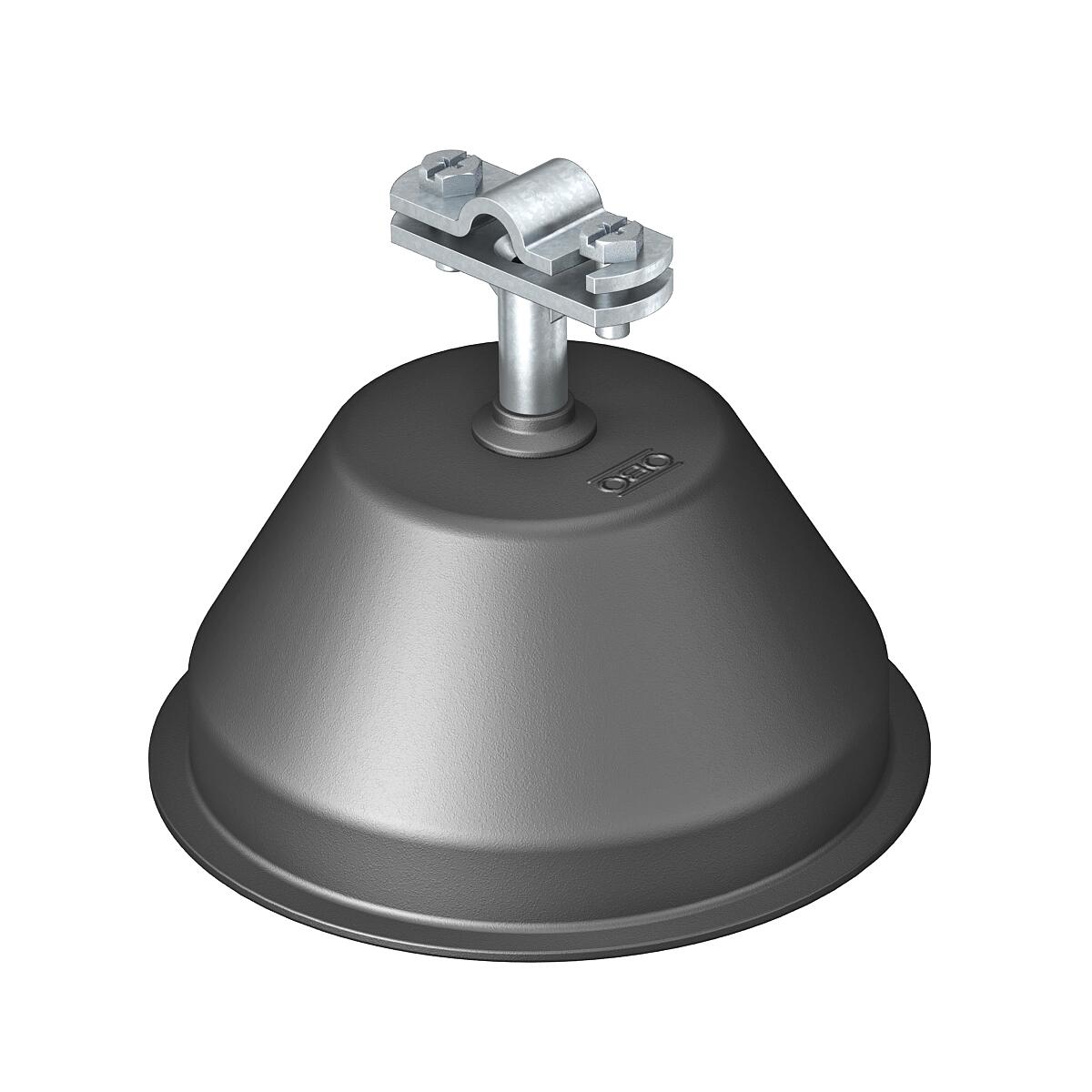

Roof conductor holder for flat roofs, with raised cable bracket

Item no. 5218977 | EAN 4012195952213

5218977 / 165 KRB SO
140 mm
Rd 8-10 mm
Product description
Product description
• Filling weight 1 kg (frost-resistant concrete)
• With conductor holder, type 168 DIN-K
• Die-cast zinc conductor holder, electrogalvanised
• Polyethylene sleeve, black
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,8018 kg CO2e / 1 Piece
Conductor diameter, max. 10
Conductor diameter, min. 8
Dimension 8mm
Fit Rd 8-10 mm
Length 140 mm
All types

All types

Types Length Fit Item no.
165 KRB SO 140 mm Rd 8-10 mm 5218977
