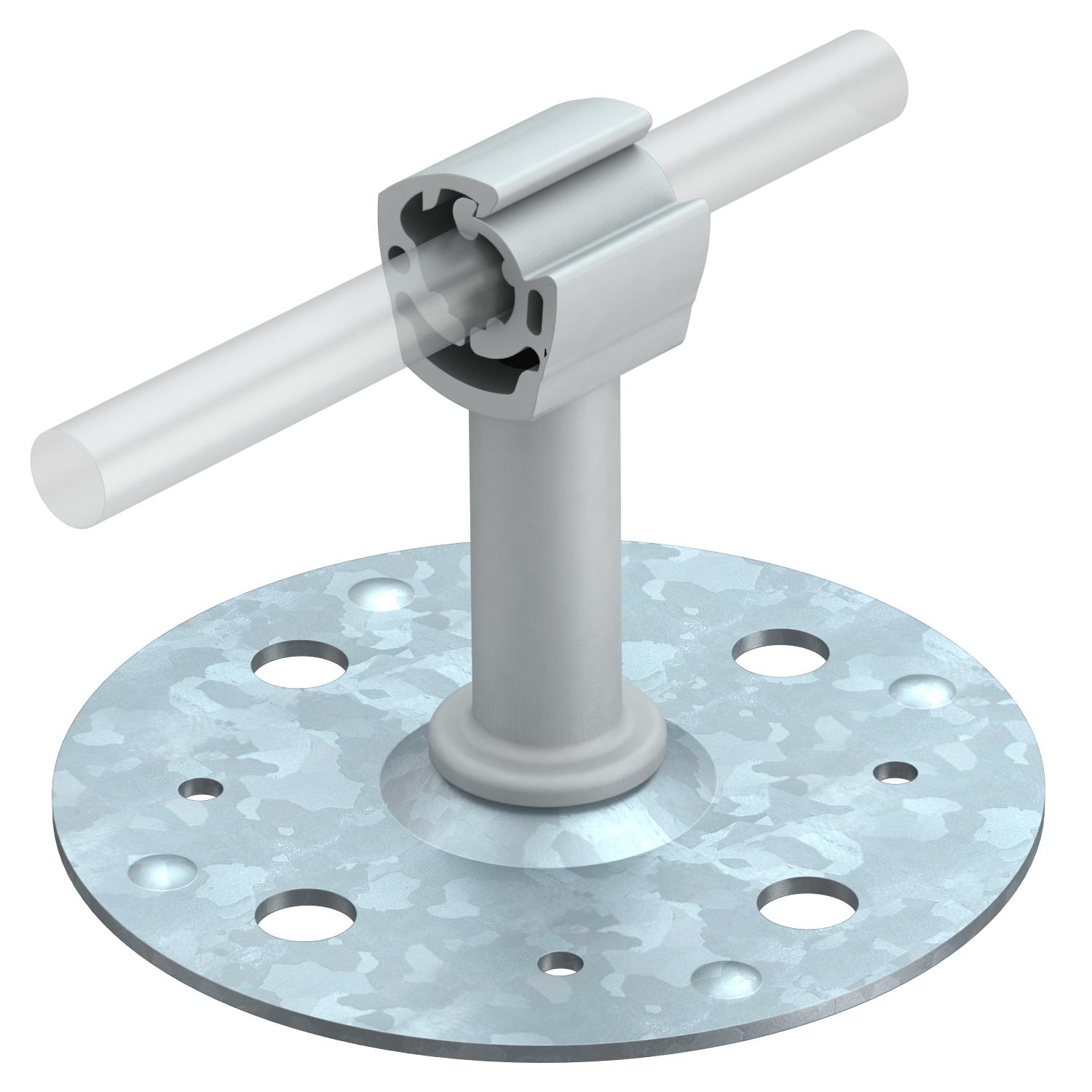

Roof conductor holder 55 mm
Item no. 5218314 | EAN 4012195904274
- Product description
-
Product description• Suitable for bonding straight to flat roofs
• Conductor holder of polyamide
• Bottom section, hot-dip galvanised steel

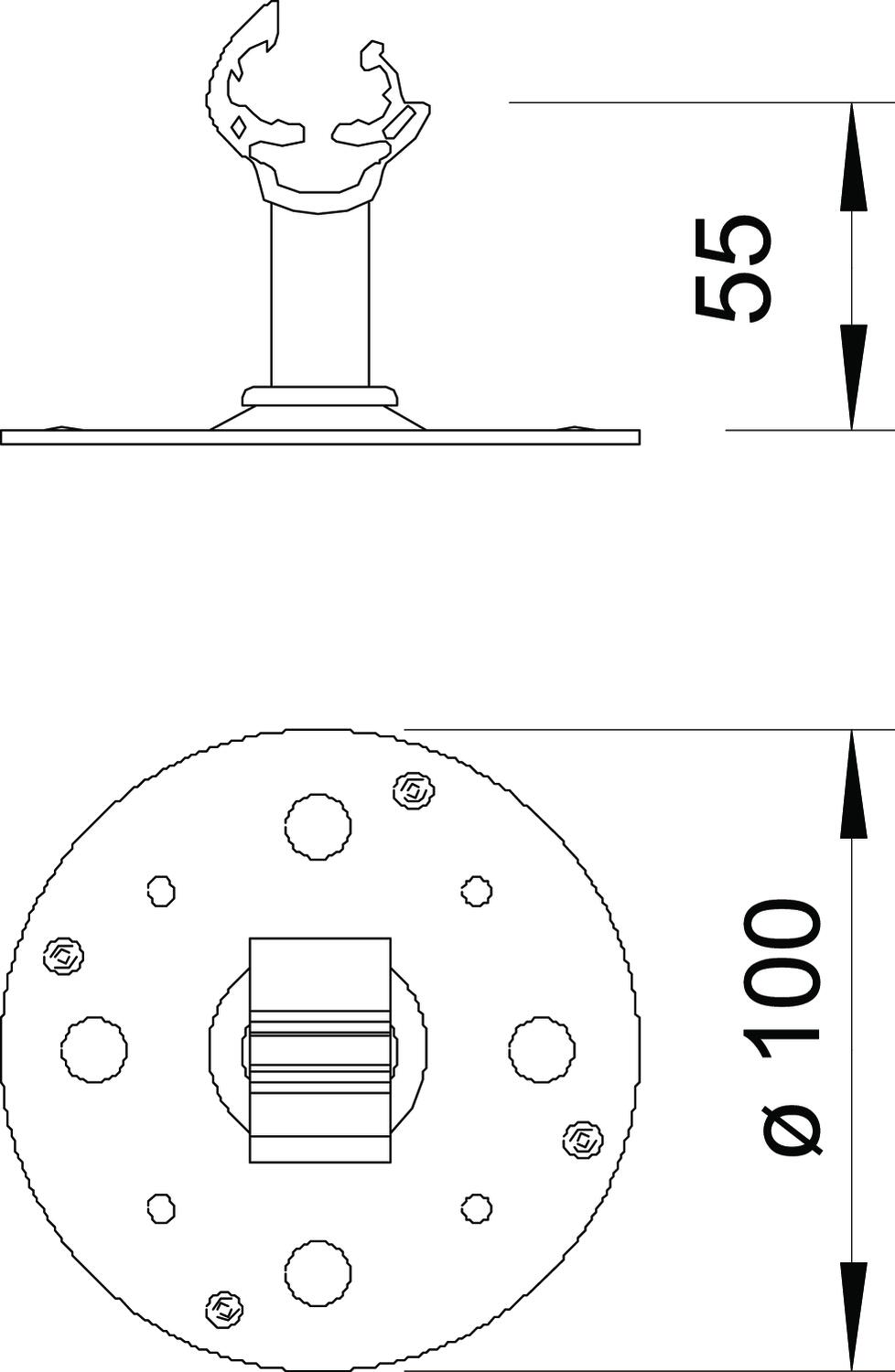

• Bottom section Ø 100 mm
- Technical data
-
Technical data
Application Flat roof CO2 Footprint (GWP) Cradle-to-Gate 0,3801 kg CO2e / 1 Piece Conductor diameter, max. 10 Conductor diameter, min. 8 Conductor fastening type With clamp clip Dimension 55mm Dimension H 55 mm Fit Rd 8-10 mm Length 100 mm Material Polyamide Mounting height 55 mm Mounting type Adhesive - All types
- Downloads
-
Data sheet 165 NBK 55 / 5218314 , 0.22MB , pdfREACH Declaration of conformity 165 NBK 55 / 5218314 , 0.27MB , pdfRoHS Declaration of conformity 165 NBK 55 / 5218314 , 0.12MB , pdf
