Roof cable holder for slated roofs, Rd 8, CU 212 | 32 | Rd 8
morepic-1 morepic-2 morepic-3 video-1

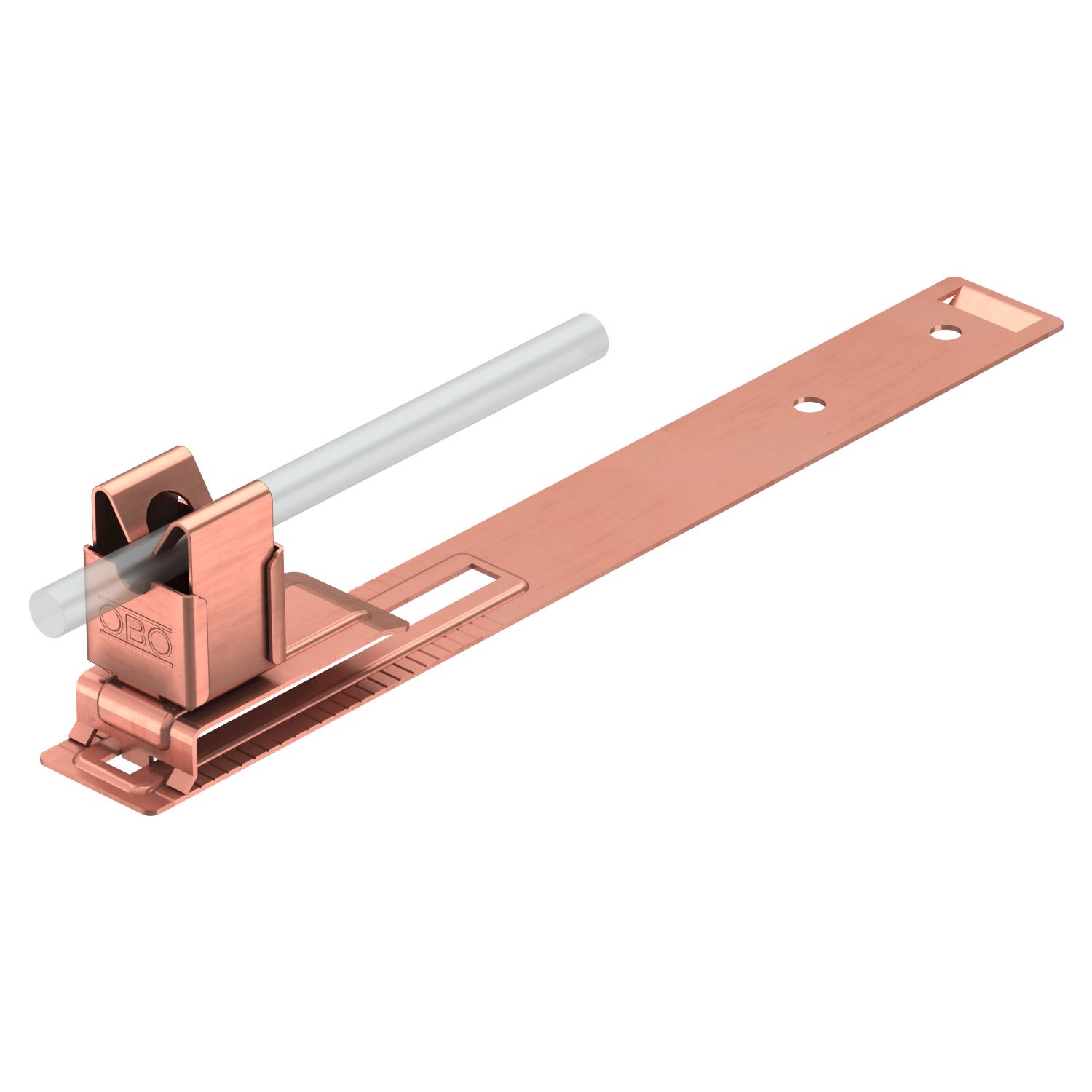

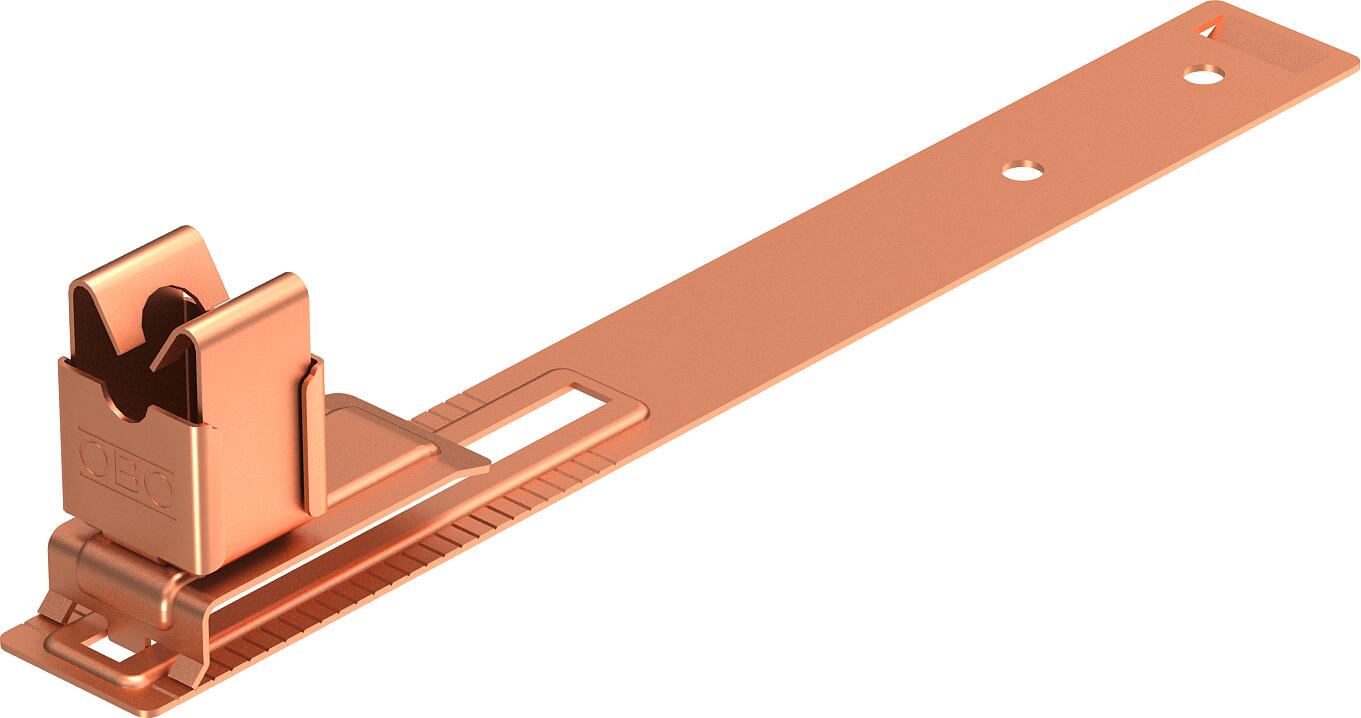

Roof cable holder for slated roofs, Rd 8, CU

Item no. 5215471 | EAN 4012195812111

5215471 / 157 L-CU
212 mm
32 mm
Rd 8 mm
Product description
Product description
• With Ø 5.5 mm drill hole and beading
Technical data

Technical data

Application Roof surface
CO2 Footprint (GWP) Cradle-to-Gate 0,2468 kg CO2e / 1 Piece
Conductor diameter, max. 8
Conductor diameter, min. 8
Conductor fastening type With clip
Dimension 210mm
Fit Rd 8 mm
Length 212 mm
Material Copper
Mounting height 32 mm
Mounting type Screw-on
All types

All types

Types Length Mounting height Fit Item no.
157 L-CU 212 mm 32 mm Rd 8 mm 5215471
Downloads

Download

Download
Download

EU declaration of conformity 157 L-CU / 5215471 , 0.06MB , pdf
Download

No invitation to tender text is available for this product.
