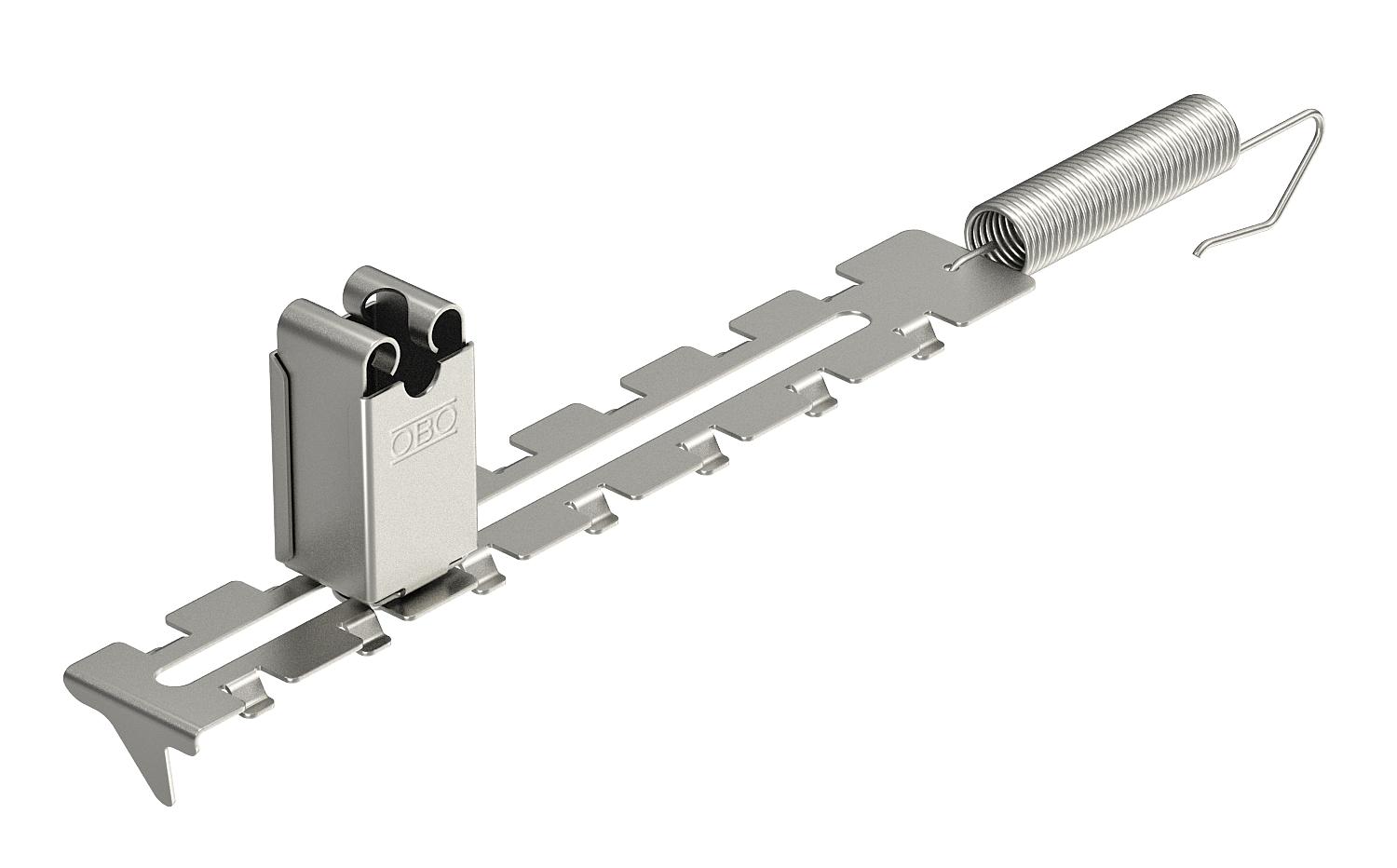

Ridge conductor holder with tensioning spring
Item no. 5203018 | EAN 4012195784968
- Product description
-
Product description• For round conductor Rd 8
• Clamping range 280-380 mm
- Technical data
-
Technical data
Application Ridge Clamping range D, max. 380 mm Clamping range D, min. 280 mm CO2 Footprint (GWP) Cradle-to-Gate 0,4108 kg CO2e / 1 Piece Conductor diameter, min. 8 Conductor fastening type With clip Dimension 35 mm Fit RD 8 mm Material Stainless steel Mounting height 35 mm Mounting type Tensionable - All types
- Downloads
-
Data sheet 132 U 35 / 5203018 , 0.16MB , pdfEU declaration of conformity 132 U 35 / 5203018 , 0.06MB , pdf
