Reduction, metric thread 20 | 16 | | | 24

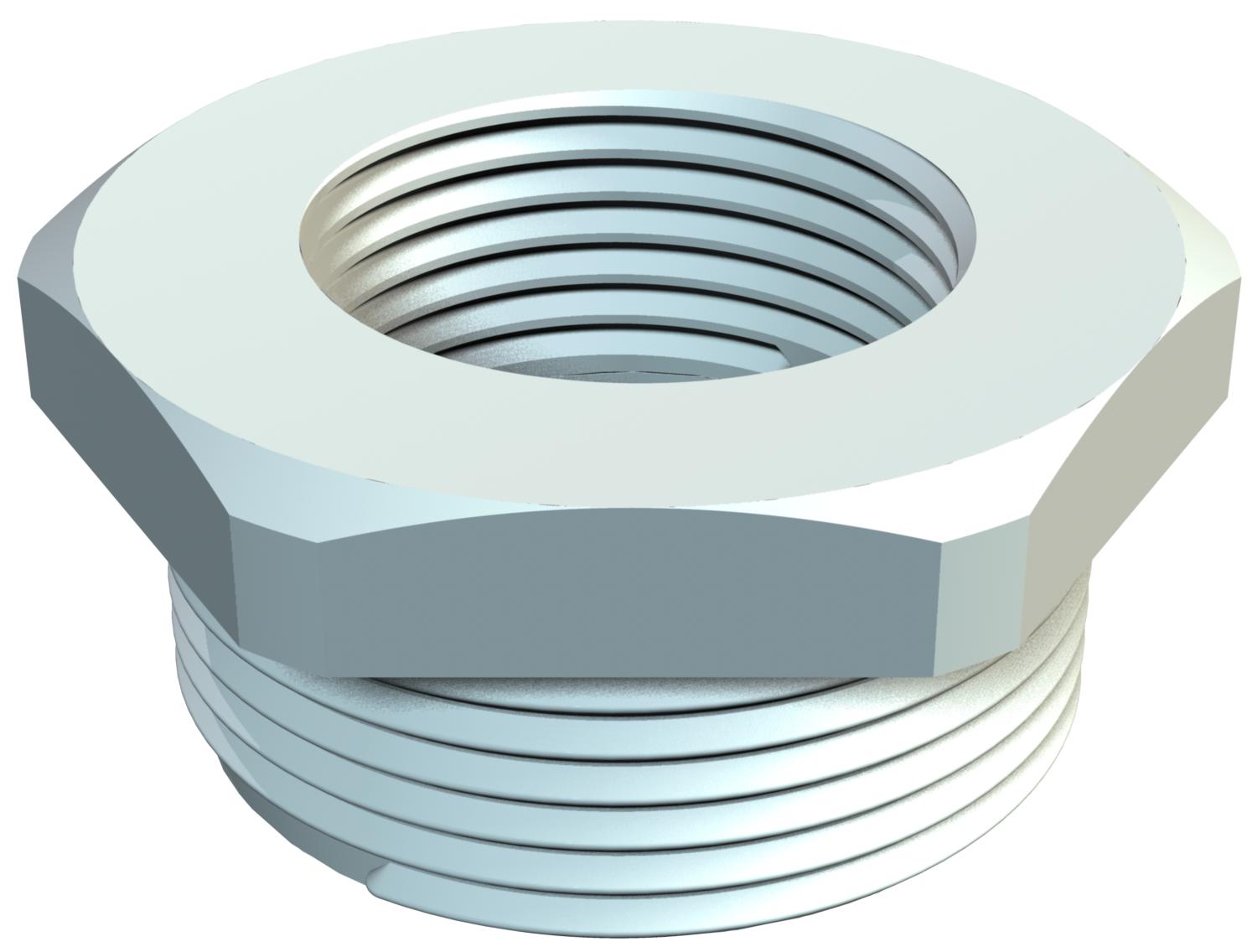

Reduction, metric thread

Item no. 2030619 | EAN 4012195383352

Item no. / Types

Thread dimension, metric, external

Thread dimension, metric, internal

WAF

Product description

Product description

Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0107 kg CO₂e / 1 Piece
Colour	Light grey; RAL 7035

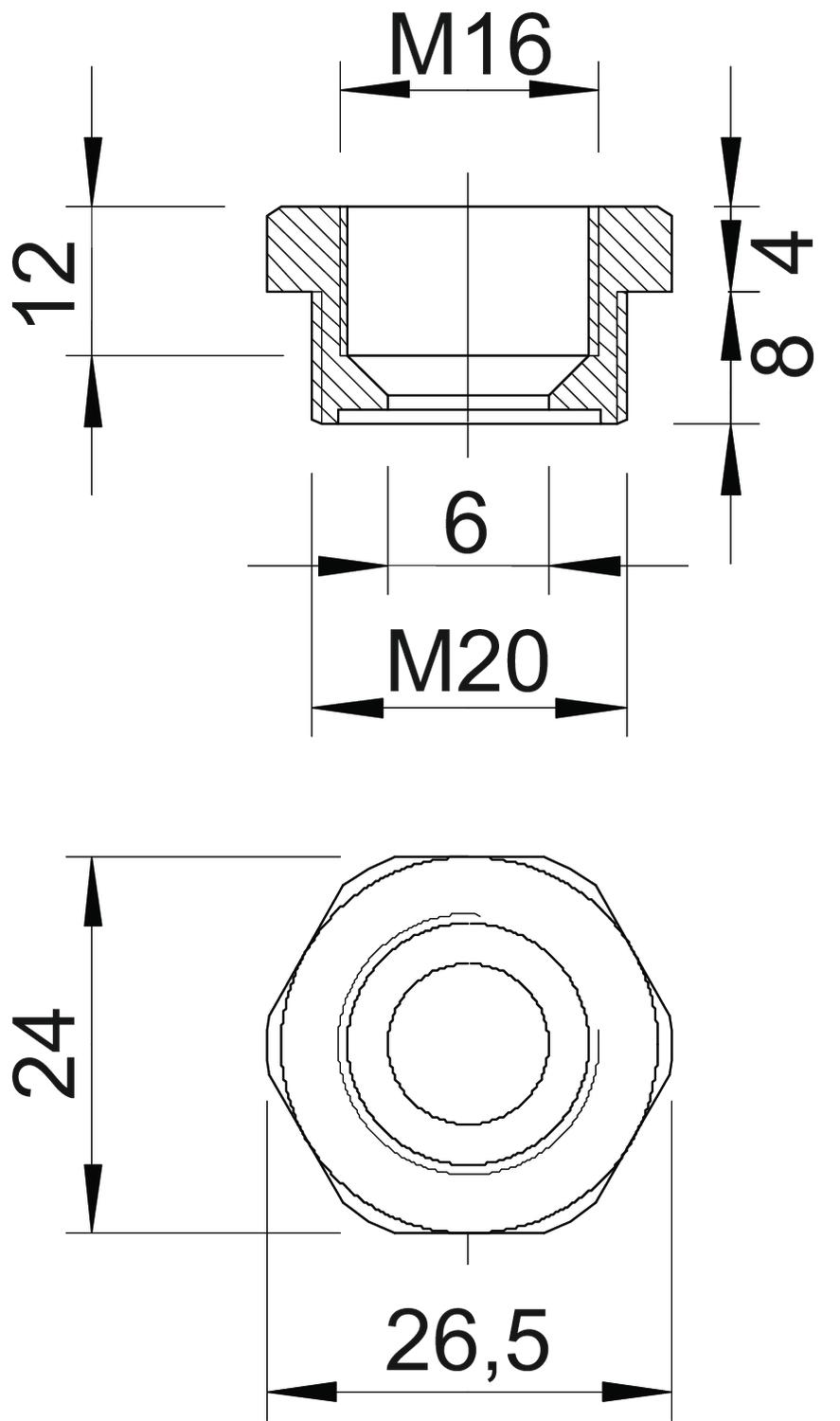

Dimension	M20-M16
Dimension E	26,5 mm
Dimension L	12 mm
Dimension L1	8 mm
Dimension L2	4 mm
Dimension L3	12 mm
explosion-proof	no

Halogen-free	yes
Material	Polyamide
Nickel-plated	no
Thread dimension, metric, external	20
Thread dimension, metric, internal	16
Thread length	8 mm
Thread type: External thread	Metric
Thread type: Internal thread	Metric
WAF	24

All types

All types

Types	Thread dimension, metric, external	Thread dimension, metric, internal	WAF	Item no.
107 R M20-12 PA	20	12	24	2030616
107 R M20-16 PA	20	16	24	2030619
107 R M25-12 PA	25	12	29	2030624
107 R M25-16 PA	25	16	29	2030626
107 R M25-20 PA	25	20	29	2030628
107 R M32-12 PA	32	12	36	2030632
107 R M32-16 PA	32	16	36	2030634
107 R M32-20 PA	32	20	36	2030637
107 R M32-25 PA	32	25	36	2030640
107 R M40-16 PA	40	16	46	2030643
107 R M40-20 PA	40	20	46	2030646
107 R M40-25 PA	40	25	46	2030649
107 R M40-32 PA	40	32	46	2030652
107 R M50-20 PA	50	20	55	2030655
107 R M50-25 PA	50	25	55	2030659
107 R M50-32 PA	50	32	55	2030661
107 R M50-40 PA	50	40	55	2030664
107 R M63-25 PA	63	25	68	2030667
107 R M63-32 PA	63	32	68	2030670
107 R M63-40 PA	63	40	68	2030673
107 R M63-50 PA	63	50	68	2030675
