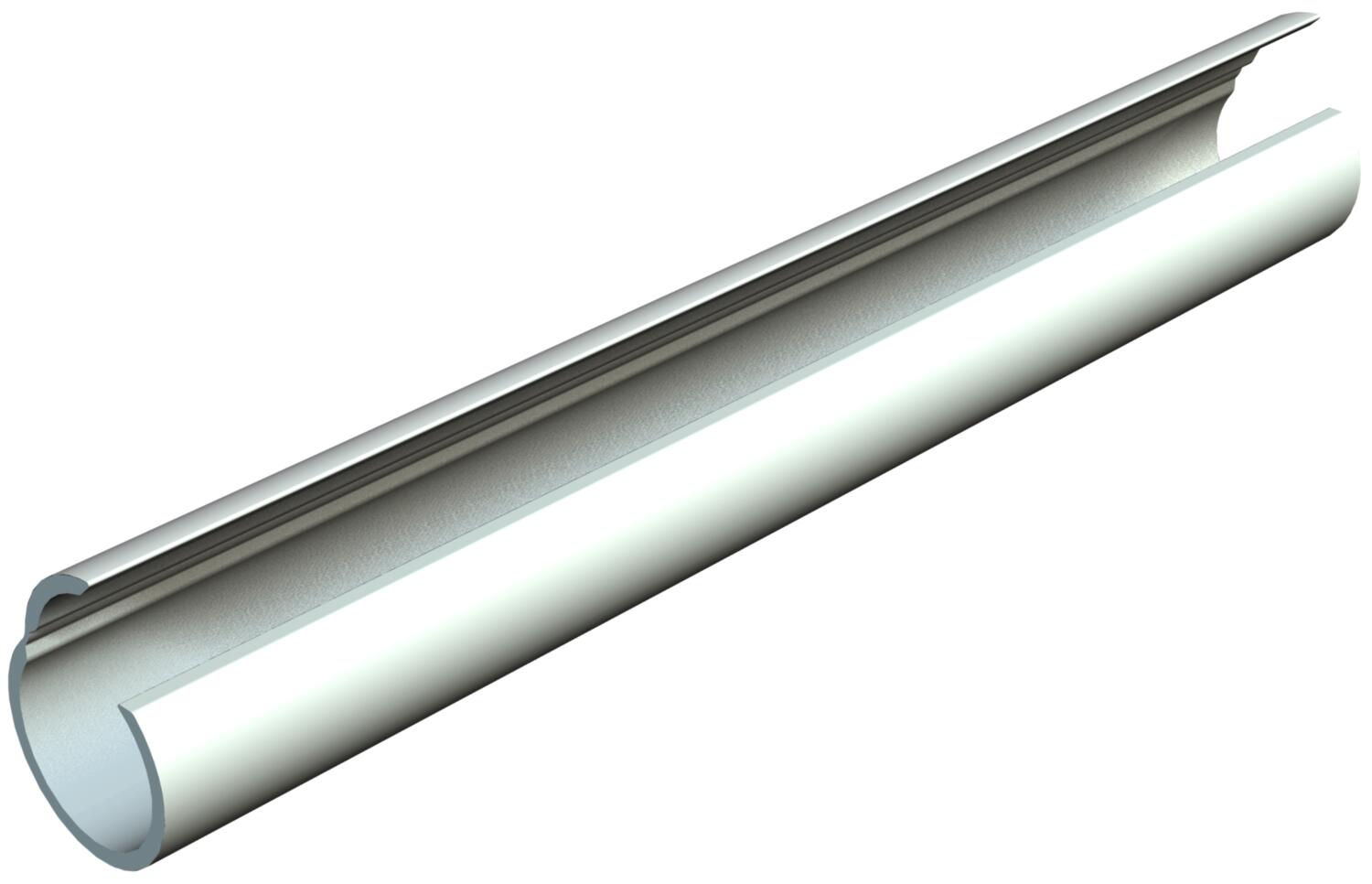

Quick-Pipe®, pure white
Item no. 2153966 | EAN 4012195531739
- Product description
-
Product descriptionOpen plastic Quick-Pipe® pipe for surface-mounted routing of cables in interiors and protected outdoor areas. Mounting on wall and ceiling with Quick clip, proQuick clip and Multi-Quick clip. Toolless closing and opening through turning in the clip. Can be used in a temperature range of –25 to +60 °C.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,3385 kg CO₂e / 1 Meter Colour Pure white; RAL 9010 Concealed no Concrete installation no Dimension M25 Dimension C 13.6 mm Dimension D 25 mm Dimension t 1,6 mm Flame-resistant version no Halogen-free no Installation in the earth no Installation on wood yes Installation outdoors no Length 2000 mm Machines and system installation yes Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Size M25 Surface-mounted yes Underfloor installation (screed) no With sleeve no - All types
-
System accessories
Products Types Item no.

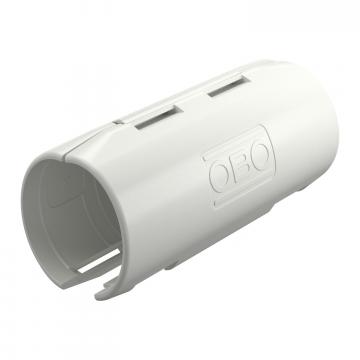

Quick pipe connecting sleeve, pure white
3000 MMS M25 RW 2154095

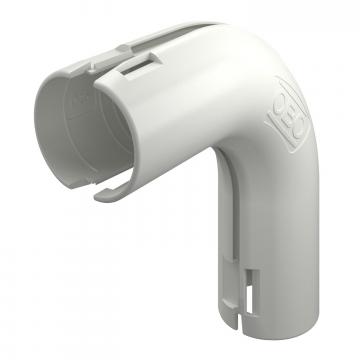

90° Quick pipe bend, pure white
3000 BMS M25 RW 2154066 Mounting accessories
Products Types Item no.
Pipe end cap, splittable, metric, light grey
129 TB M25 2047839
Quick clip, light grey
2955 M25 2149016 - Downloads
-
Data sheet 2953 M25 RW / 2153966 , 0.21MB , pdfBrochure Quick Pipe , 1.45MB , pdfEU declaration of conformity 2953 M25 RW / 2153966 , 0.11MB , pdfUK Declaration of Conformity 2953 M25 RW / 2153966 , 0.10MB , pdfREACH Declaration of conformity 2953 M25 RW / 2153966 , 0.12MB , pdfRoHS Declaration of conformity 2953 M25 RW / 2153966 , 0.13MB , pdf
