Quick connector, upper part Rd 8–10 mm

Item no. 5311585 | EAN 4012195466192

Item no. / Types	5311585 / 249 8-10 ALU-OT

Fit	Rd 8-10 mm

Product description

Product description

• For round conductor fastening Rd 8-10

• Suitable for M10 bolts

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,438 kg CO2e / 1 Piece
Dimension	44x44mm
Dimension A	44 mm

Fit	Rd 8-10 mm
Material	Aluminium
Type of fastening screw	Miscellaneous

All types

All types

Types	Fit	Item no.
249 8-10 ALU-OT	Rd 8-10 mm	5311585

Downloads

Data sheet 249 8-10 ALU-OT / 5311585 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Brochure Solutions for photovoltaic systems , 11.37MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity 249 8-10 ALU-OT / 5311585 , 0.06MB , pdf

Download

REACH Declaration of conformity 249 8-10 ALU-OT / 5311585 , 0.12MB , pdf

Download

RoHS Declaration of conformity 249 8-10 ALU-OT / 5311585 , 0.12MB , pdf

Download

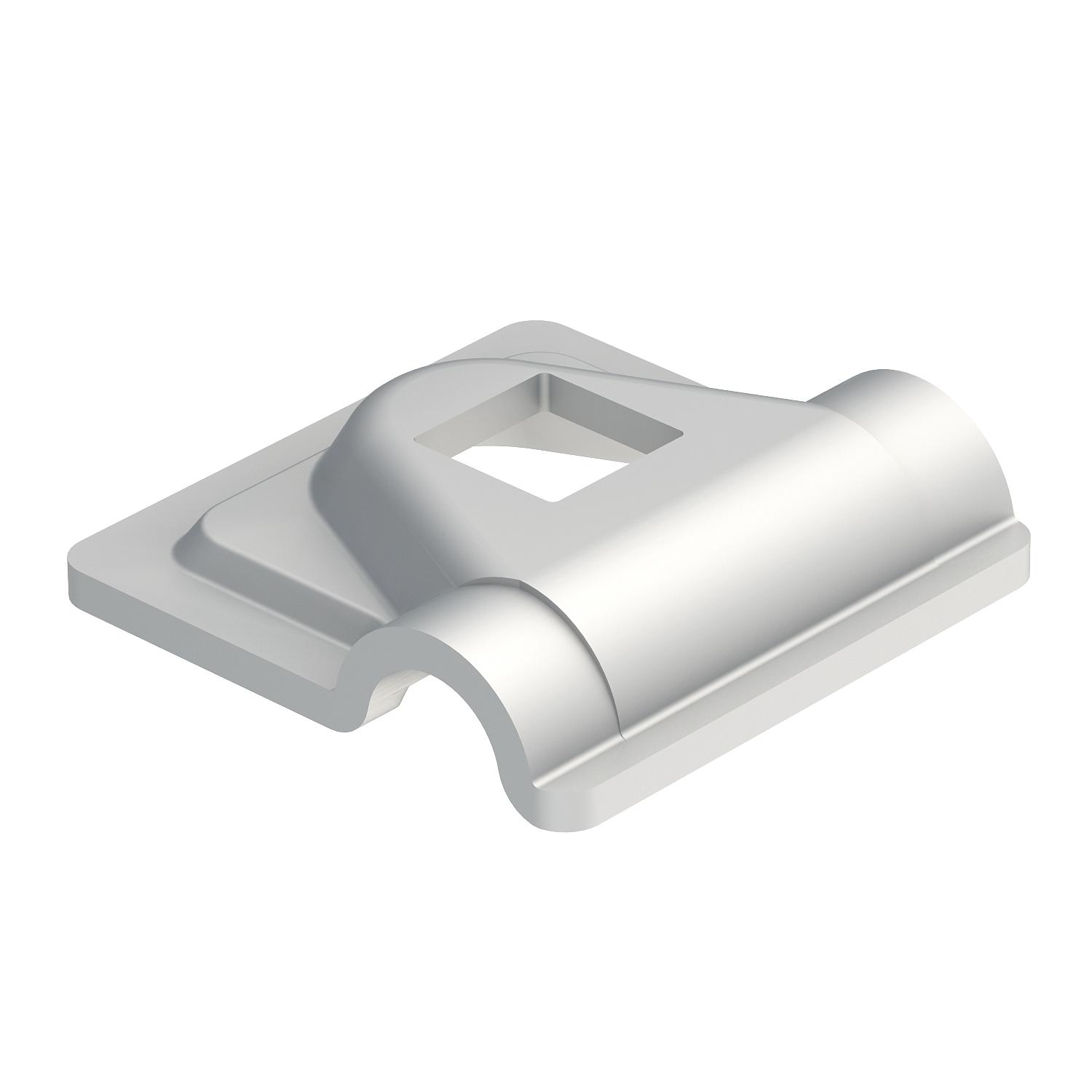

Product graphic 249 8-10 ALU-OT / 5311585, 42.45 kB, jpg

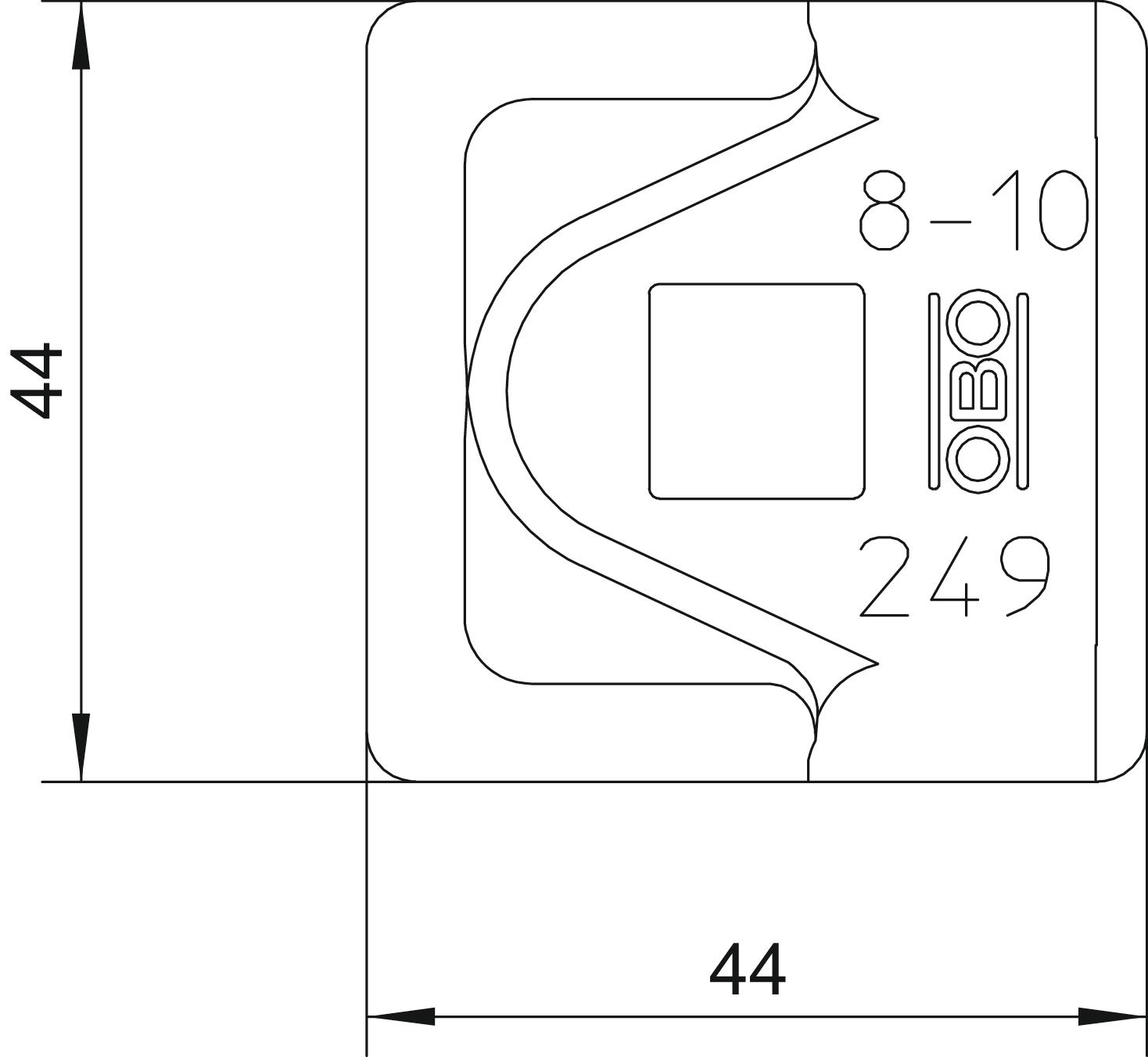

Scale drawing 249 8-10 ALU-OT / 5311585, 73.24 kB, jpg
