PYROPLUG® Shell drill crown insulation 78 | 100 | 100

PYROPLUG® Shell drill crown insulation

Item no. 7202624 | EAN 4012196142811

Item no. / Types

For opening, min.	78 mm

For opening, max.	100 mm

Dimension L

Product description

Product description

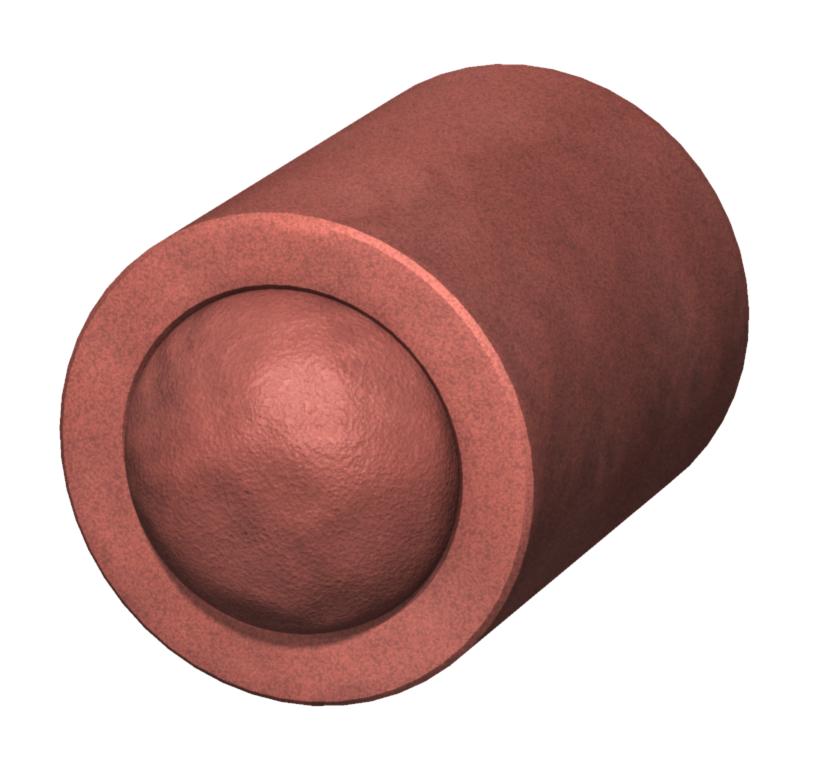

Pipe shell for cable insulation consisting of a one-part, hard pipe sleeve and two soft plugs with a 500 mm diameter. Protect the pipe sleeves and plugs against water in order to guarantee safe foaming in case of fire. Application in interior areas.

Technical data

Technical data

Accessories required	yes
Colour	Red
Diameter	76 mm

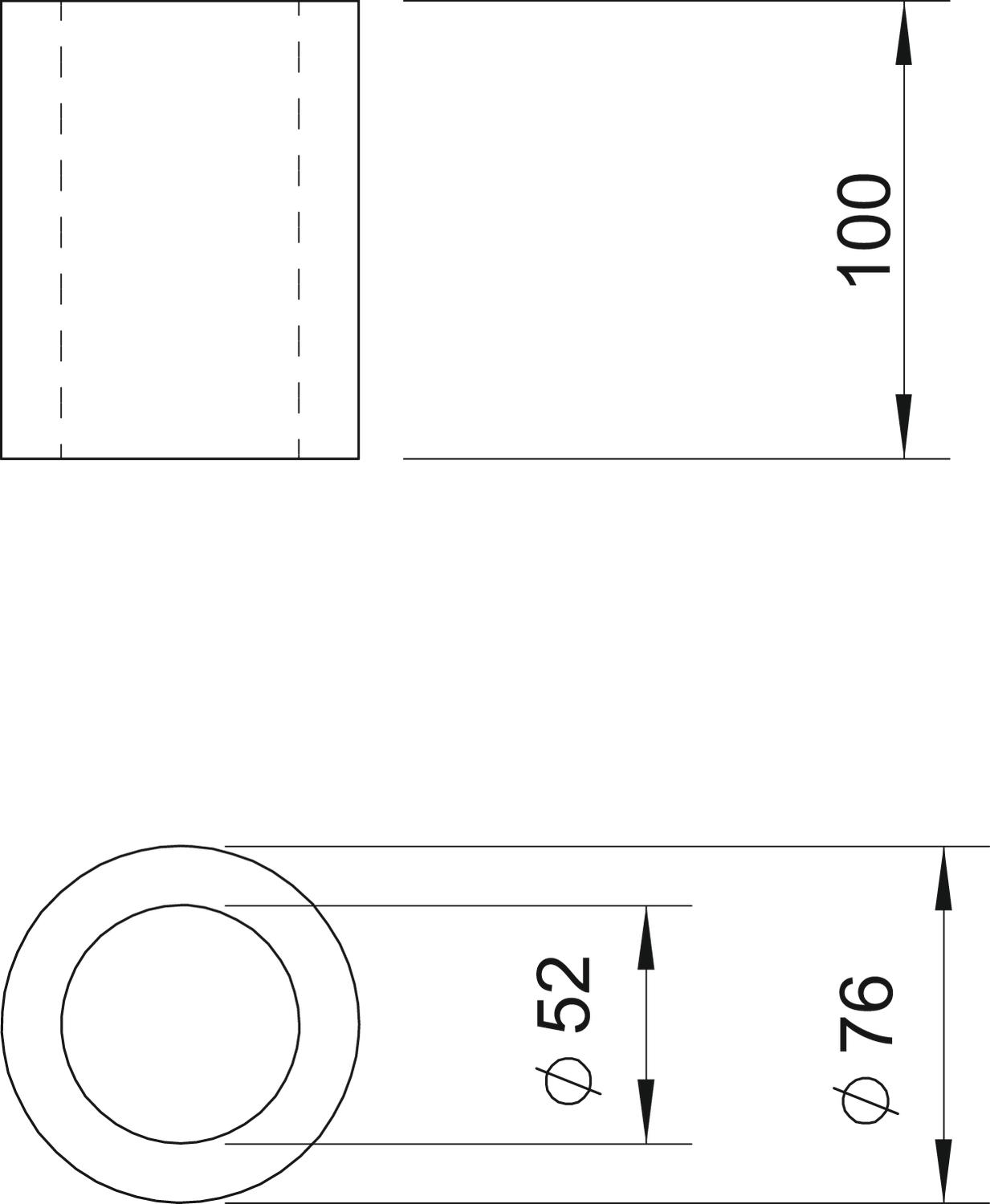

Dimension	Ø78x100mm
Dimension L	100 mm
Fire protection version	Box body

For opening, max.	100 mm
For opening, min.	78 mm
Length	100 mm
Material	Permanently elastic, closed-pore foam
Shape	Round
Width	78 mm

All types

All types

Types	For opening, min.	For opening, max.	Dimension L	Item no.
FBA-D100	78 mm	100 mm	100 mm	7202624
FBA-D150	78 mm	100 mm	150 mm	7202628

Accessories

System accessories

Products	Types	Item no.
PYROPLUG® screed filler	FBA-SP	7202322
Empty mini pipe shell	FBA-DR100	7202613
Calcium silicate plate	KSI-P1	7202283
Calcium silicate plate	KSI-P2	7202904
Calcium silicate plate	KSI-P3	7202912
Identification plate DE	KS-S DE	7205425
