Protective panel FS
Item no. 6049241 | EAN 4012196640683
- Product description
-

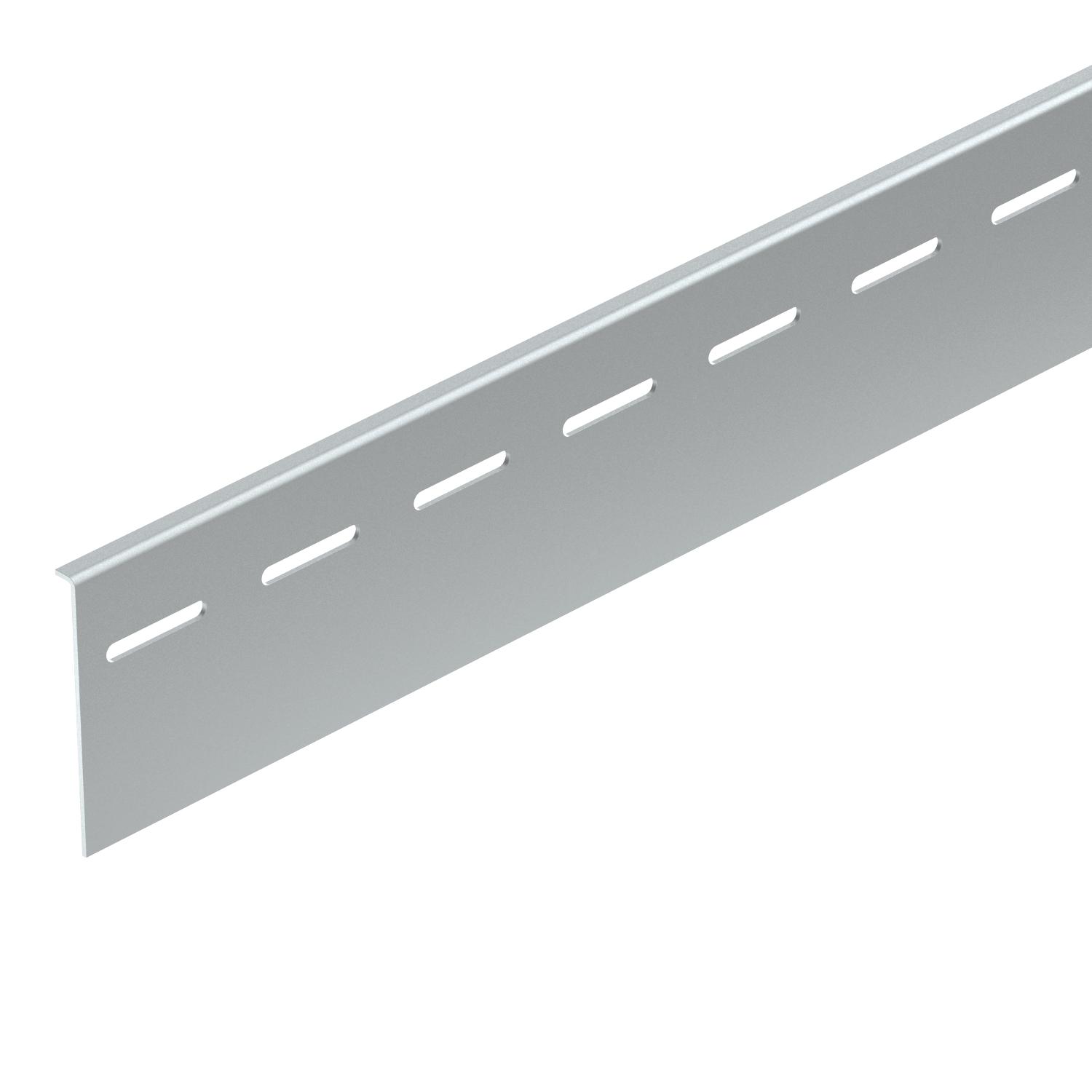

Product descriptionProtective plate for attaching to the side as a guard for walkable cable tray systems. The protective plate can be installed with self-tapping pan head screws, type SPHS, on the Z supports.
-
- Technical data
-
Technical data

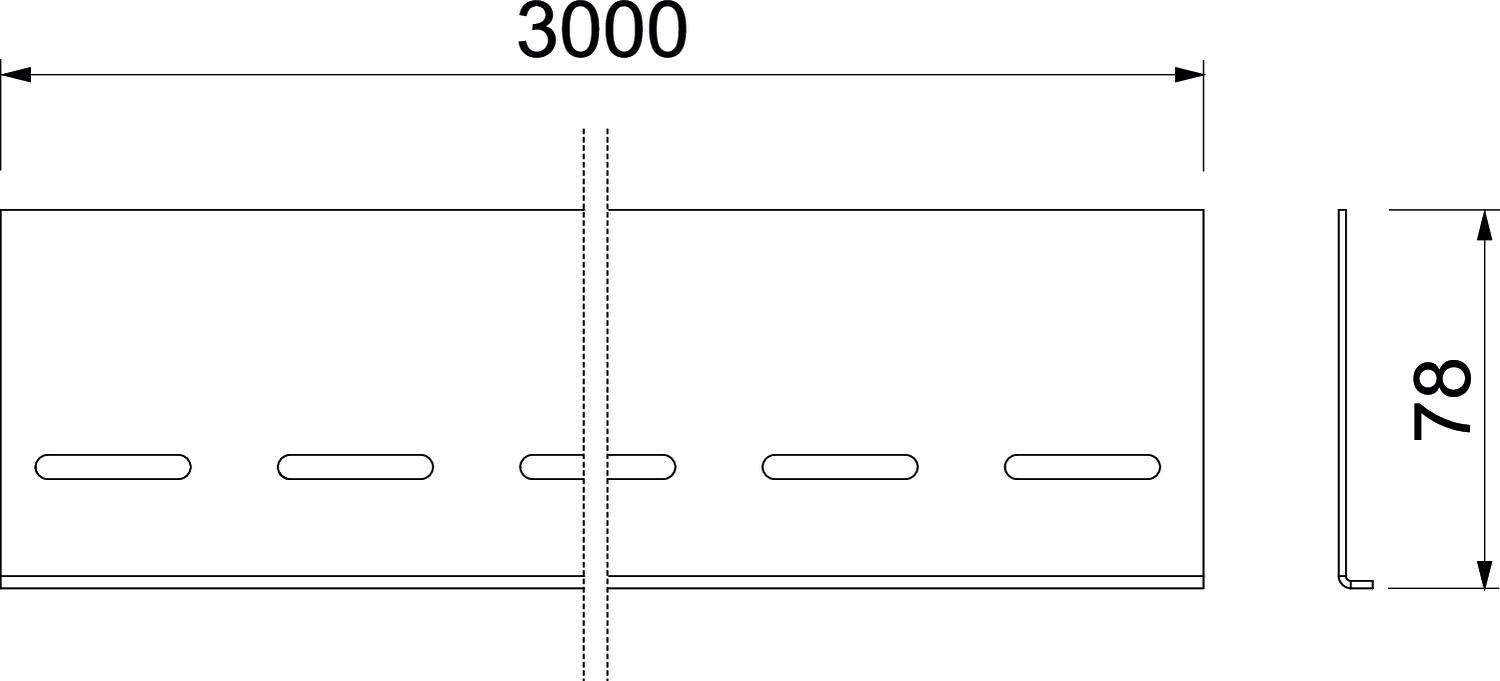

Accessories required yes CO2 Footprint (GWP) Cradle-to-Gate 2,1952 kg CO2e / 1 Meter Colour zinc Dimension 78x3000 Halogen-free yes Height 78 mm Impact-resistant no Length 3000 mm Material Steel Polished surface no Rustproof steel, pickled no Surface Strip galvanized Thickness 1,5 mm Width 7 mm - All types
-
Mounting accessories
Products Types Item no.

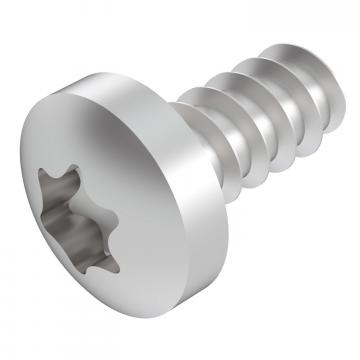

Lens head metal screw
SPHS 4,8x9,5 G 6049248 - Downloads
-
Data sheet SB 100 BKS FS / 6049241 , 0.16MB , pdfEU declaration of conformity SB 100 BKS FS / 6049241 , 0.10MB , pdfREACH Declaration of conformity SB 100 BKS FS / 6049241 , 0.27MB , pdfRoHS Declaration of conformity SB 100 BKS FS / 6049241 , 0.28MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
