Protective contact socket, 33°, double

Name: Protective contact socket, 33°, double
Brand: OBO Bettermann
SKU: 6119452

Item no. 6119452 | EAN 4012196114306

Product description

Product description

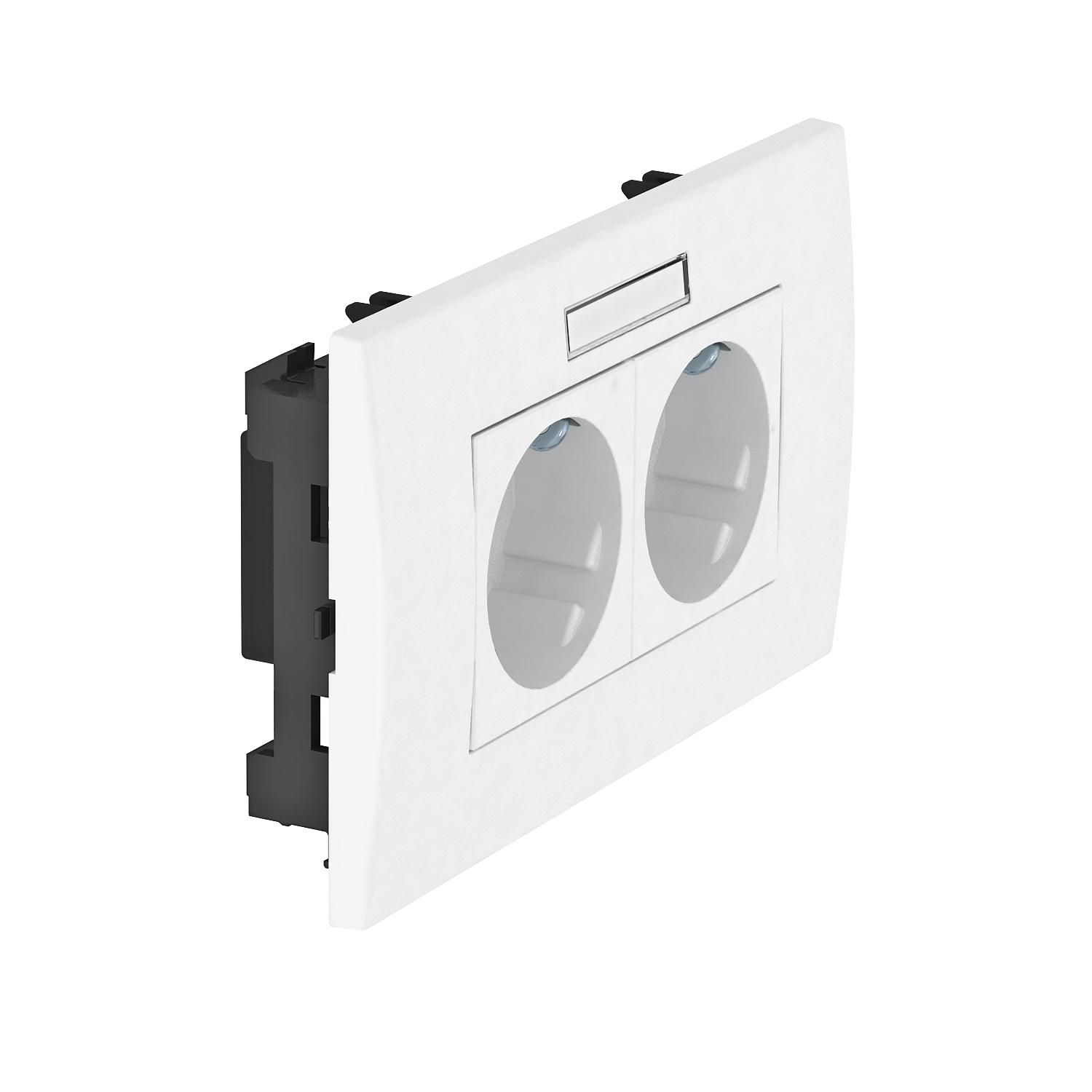

Pre-terminated socket unit with labelling panel, suitable for installation in Rapid 80 device installation trunking systems and in service poles.

Socket unit, consisting of:
- Mounting support, double, type 71MT2 45
- Protective contact socket, double, 33° connection direction, colour: See table
- Cover frame AR45, double, with labelling panel, type AR45-BF.., colour: Pure white

For installation in Rapid 80 device installation trunking and ISS service poles.

Technical data

Technical data

Closable	no
CO2 Footprint (GWP) Cradle-to-Gate	0,6768 kg CO₂e / 1 Piece
Colour	Pure white; RAL 9010
Connection type	Screwless terminal
Cover	Complete housing

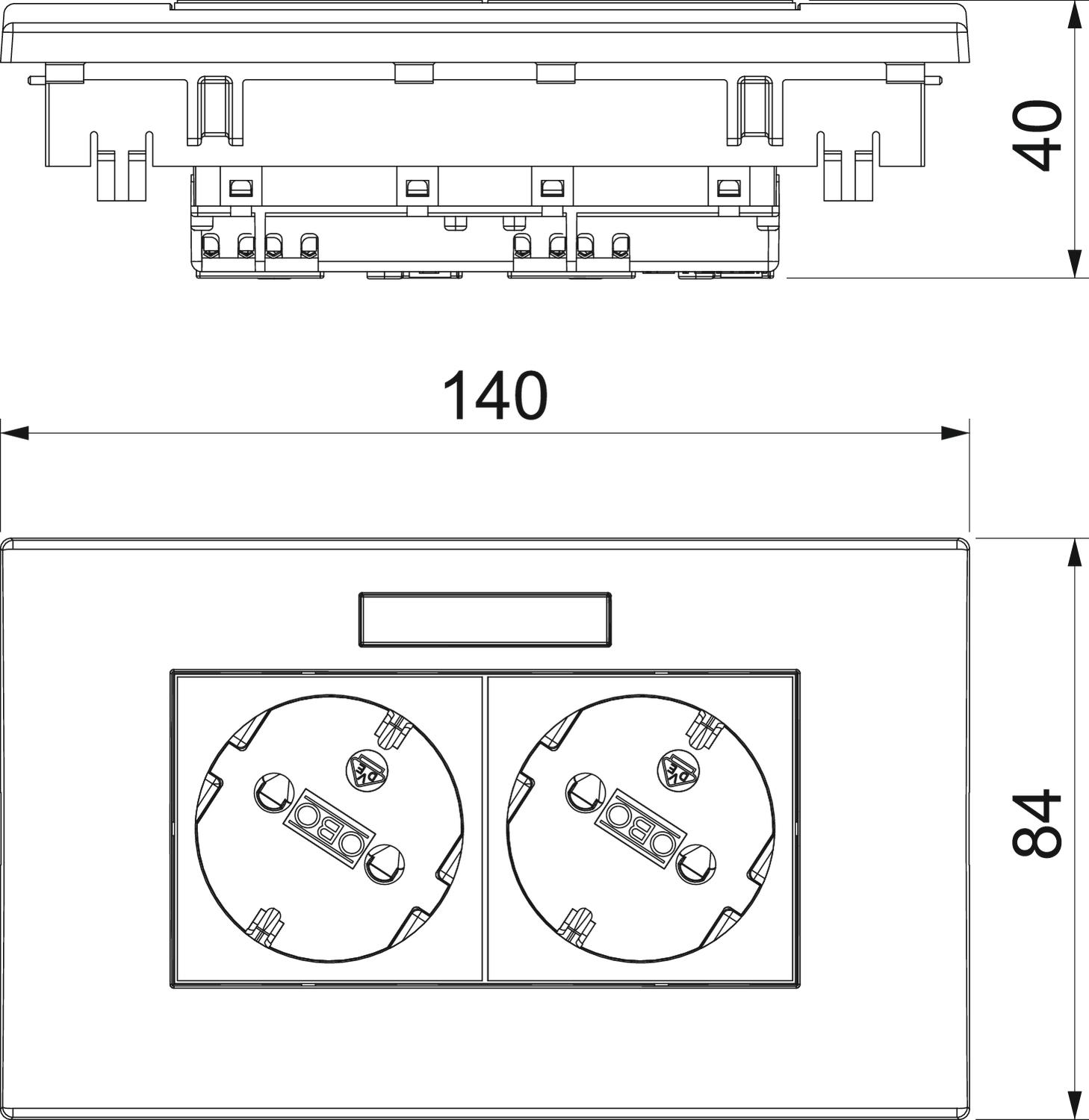

Dimension	84x140x40mm
Ejection mechanism	no
Error current protection	no
Fastening type	Lock
For more difficult conditions (according to VDE)	no
Halogen-free	yes
Hinged cover	no
increased touch protection	yes
Insulated installation	no
Labelling panel	no
Mounting type	Device installation duct
Nominal current	16 A
Nominal voltage	250 V

Number of poles	2
Number of units	2
Printed label/coding	Without printing
Protection rating	Other
Rotated central insert	yes
Socket angle	33°
Socket version	Protective contact
Special power supply	Without special power supply
Surface version	Matt
Surge protection	no
Transparent	no
Version for	Double 0°
Warning light	no
With fine-wire fuse	no
With functional lighting	no
With on/off switch	no
With orientation lighting	no
