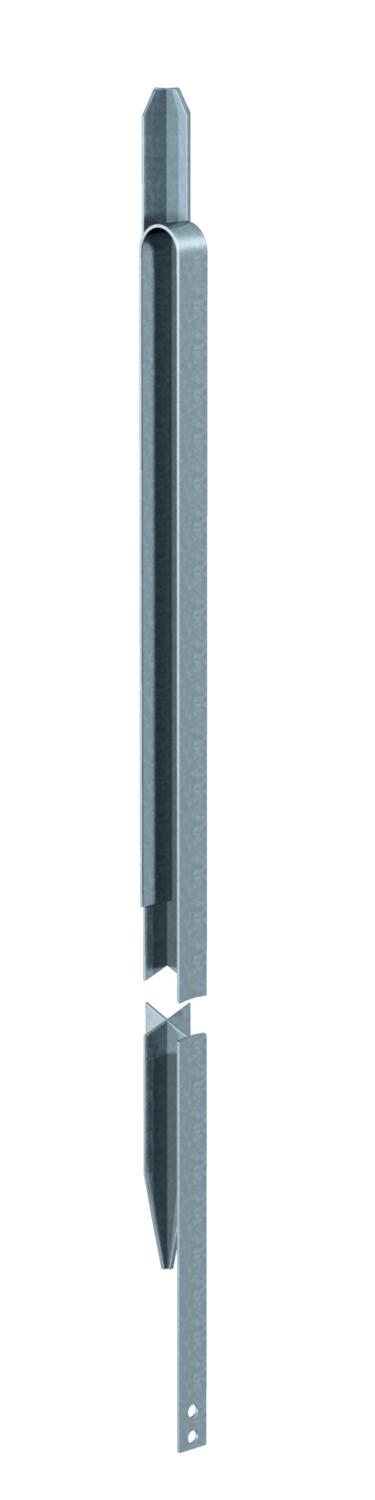

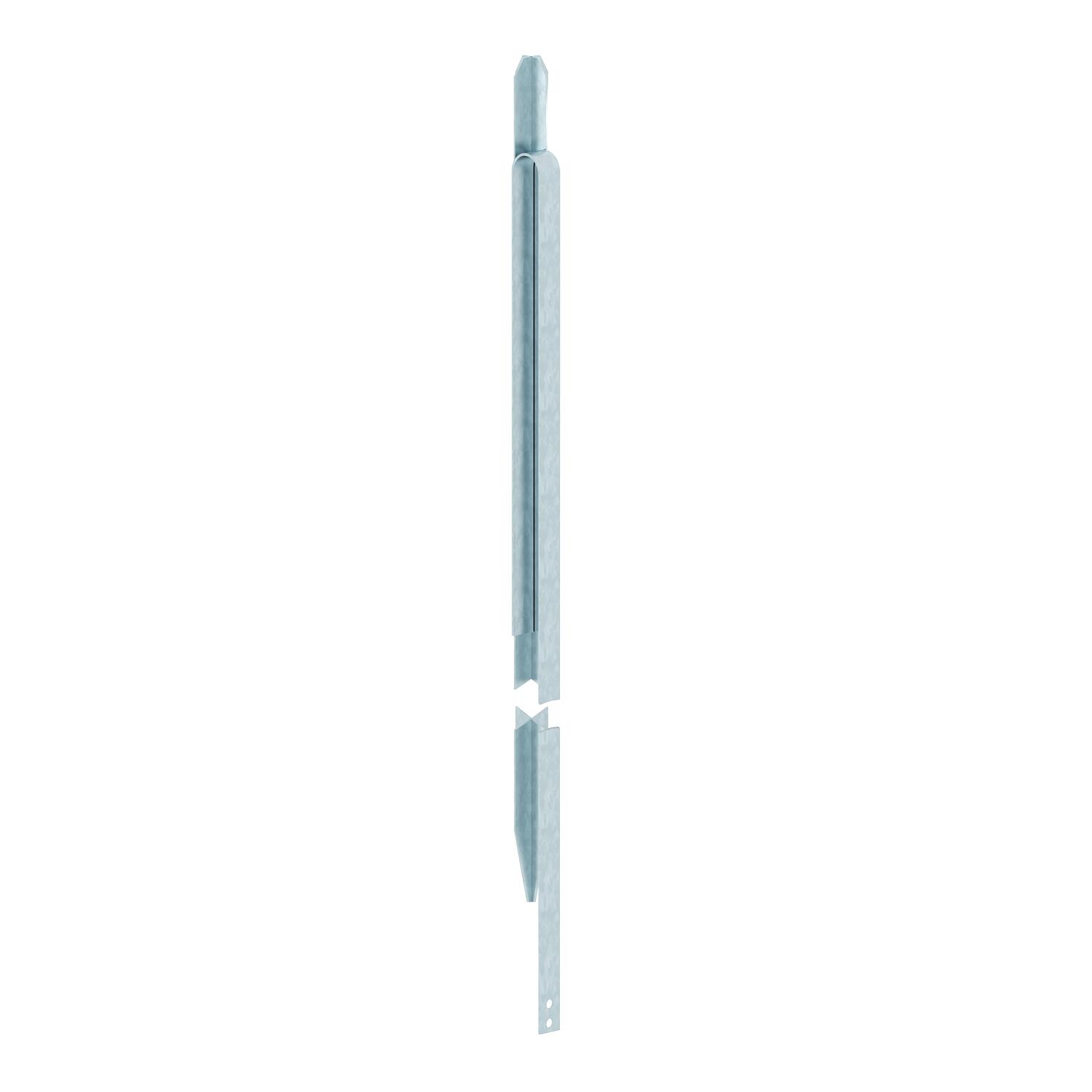

Profile earthing rod connection with strip steel lug
Item no. 5003261 | EAN 4012195374053
- Product description
-

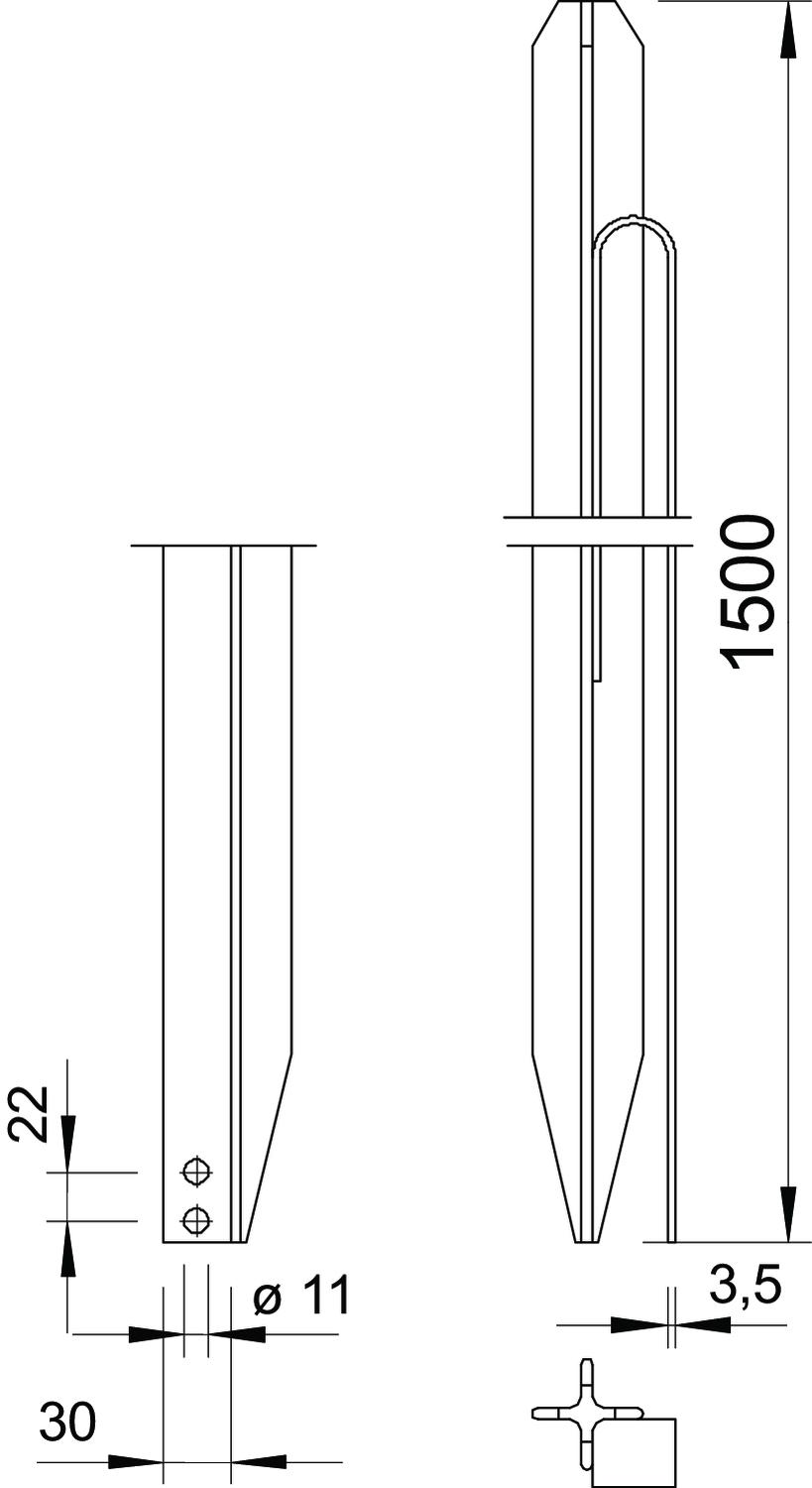

Product description• With 2 m strip steel section FL 30 x 3.5
• With 2 through holes Ø 11 mm
• For the construction of earthing systems, e.g. antenna or earthing of
building site distribution boards
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 11,0387 kg CO2e / 1 Piece Dimension 1500mm Dimension L 1500 mm Length 1500 mm Material Steel Profile type Cross Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet 213 1500 M / 5003261 , 0.16MB , pdfEU declaration of conformity 213 1500 M / 5003261 , 0.06MB , pdfREACH Declaration of conformity 213 1500 M / 5003261 , 0.12MB , pdfRoHS Declaration of conformity 213 1500 M / 5003261 , 0.13MB , pdf
