Pressure screw, PG strain relief 107
Item no. 2023113 | EAN 4012195161714
- Product description
-

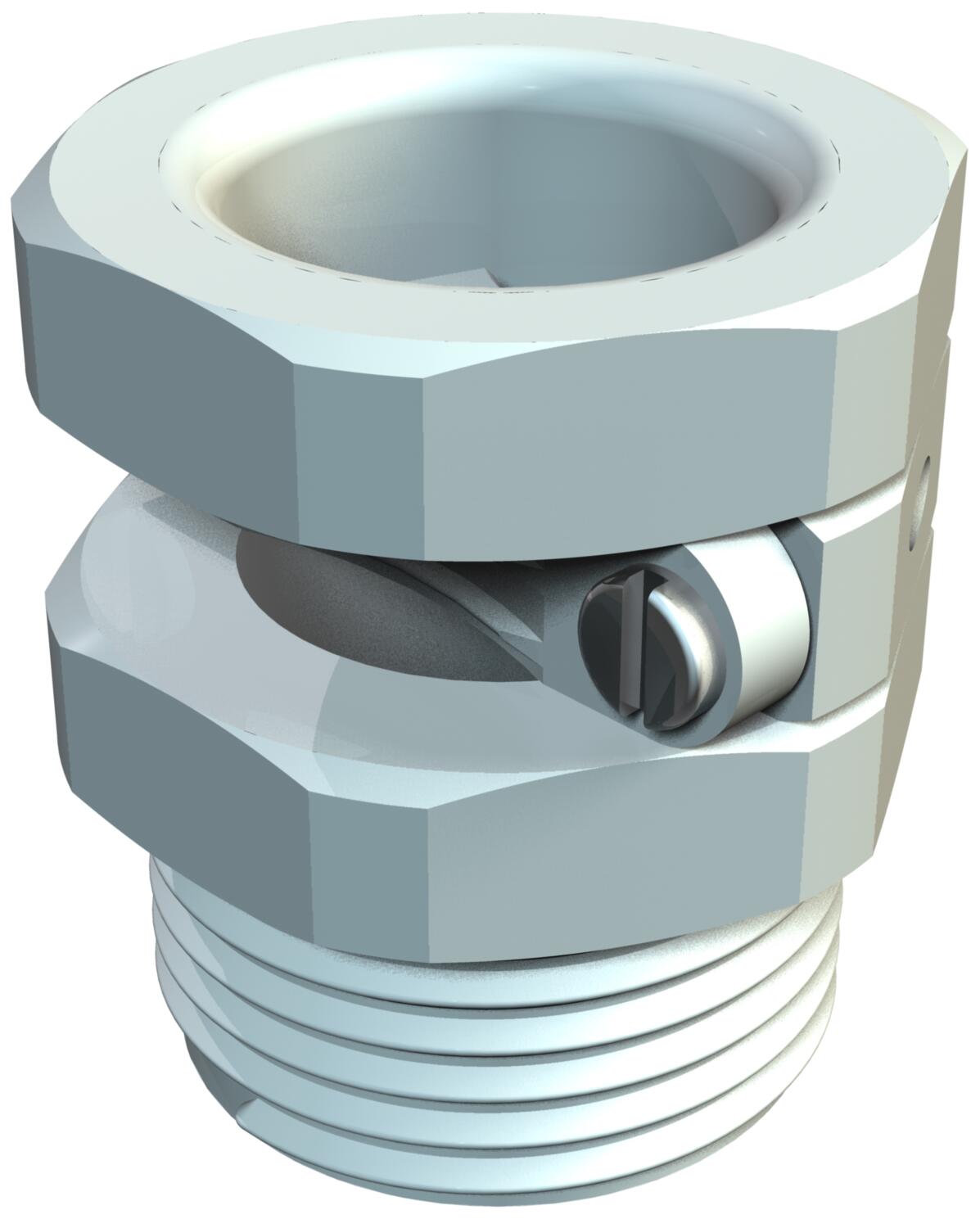

Product descriptionPressure screw with transverse clip strain relief, electrogalvanised steel screws,
PG thread to DIN 40430.
-
- Technical data
-
Technical data

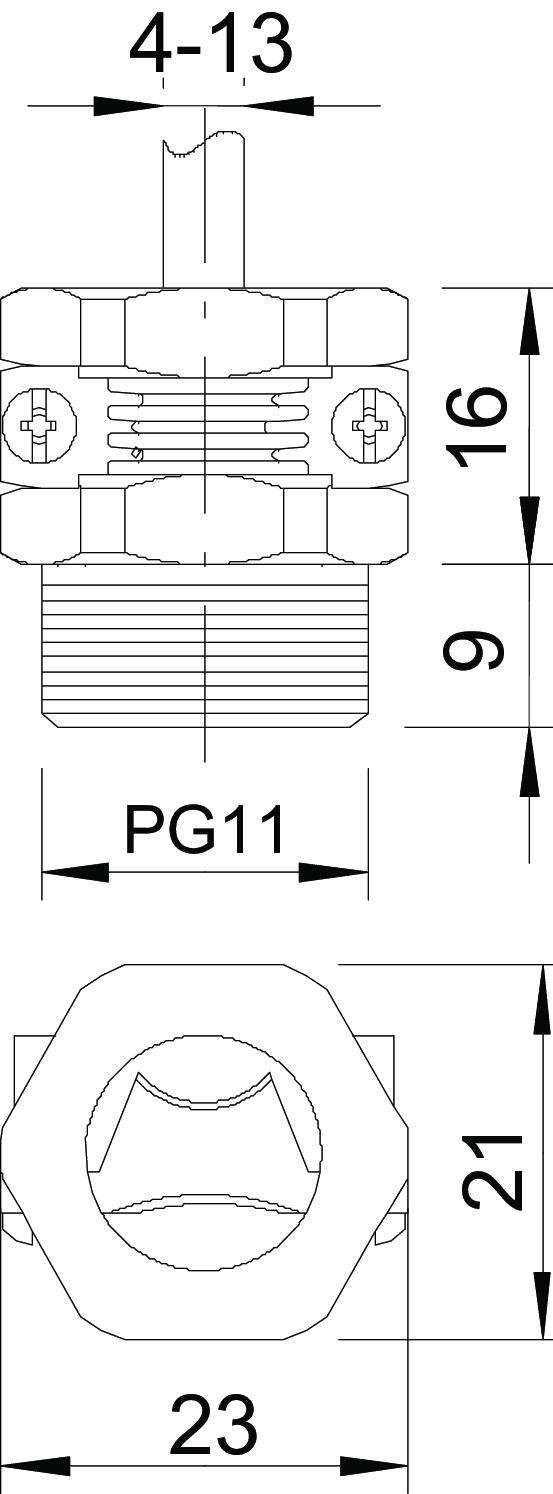

Clamping range, max. 13,3 mm Clamping range, min. 4 mm Colour Light grey; RAL 7035 Dimension PG11 Dimension E 23 mm Dimension L1 9 mm Dimension L2 16 mm Fibre-glass reinforced no Halogen-free yes Impact-resistant no Material Polyamide Nominal thread size 11 Strain relief option yes Thread increase 1,41 mm Thread type PG WAF 21 - All types
-
All types
- Downloads
-
Data sheet 107 Z PG11 PA / 2023113 , 0.21MB , pdfEU declaration of conformity 107 Z PG11 PA / 2023113 , 0.10MB , pdfUK Declaration of Conformity 107 Z PG11 PA / 2023113 , 0.09MB , pdfREACH Declaration of conformity 107 Z PG11 PA / 2023113 , 0.12MB , pdfRoHS Declaration of conformity 107 Z PG11 PA / 2023113 , 0.12MB , pdf
