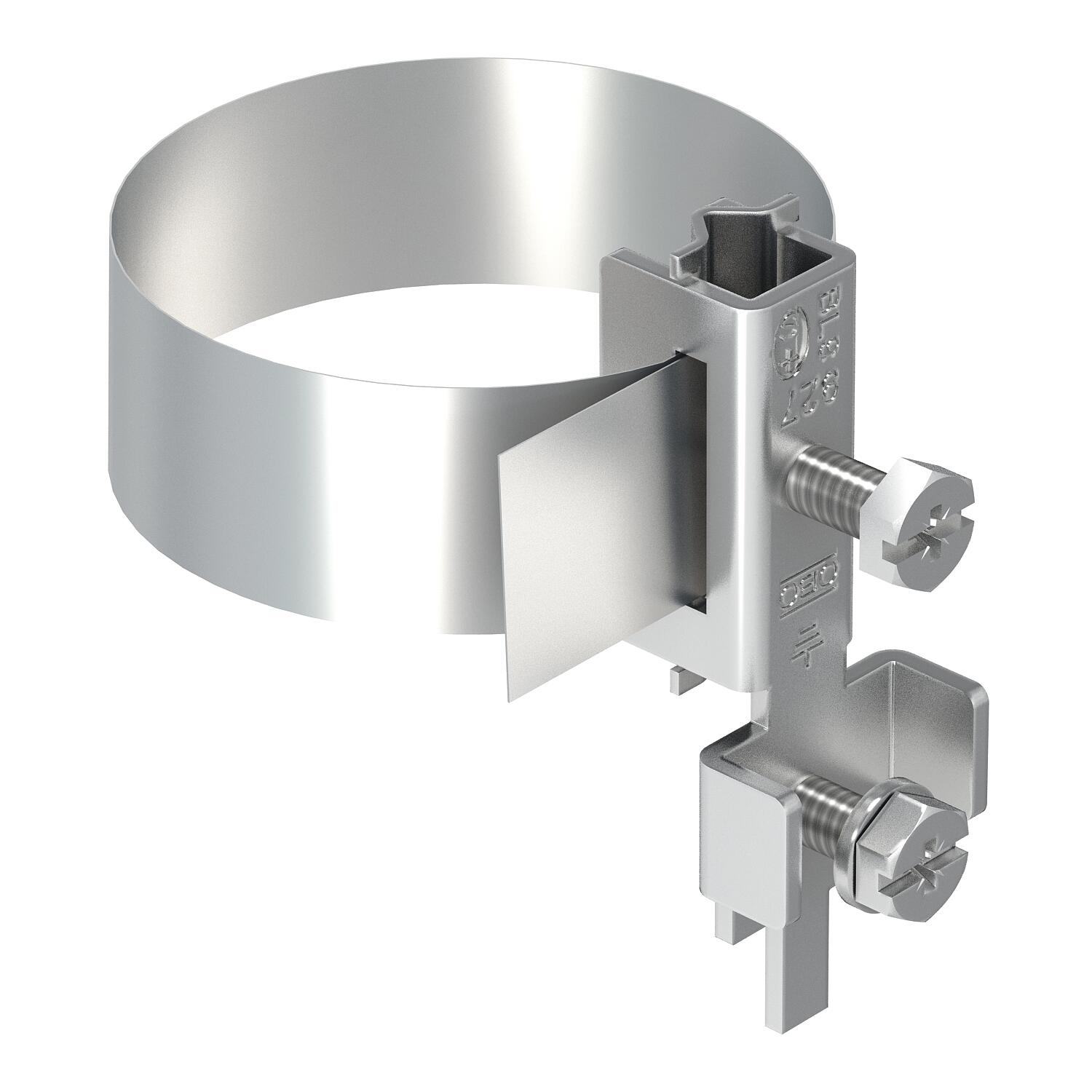

Potential connection clip for mounting on isFang
Item no. 5057599 | EAN 4012195699651
- Product description
-
Product descriptionPotential connection for isCon® conductor for mounting on insulated air-termination rods of type isFang.
- Technical data
-
Technical data

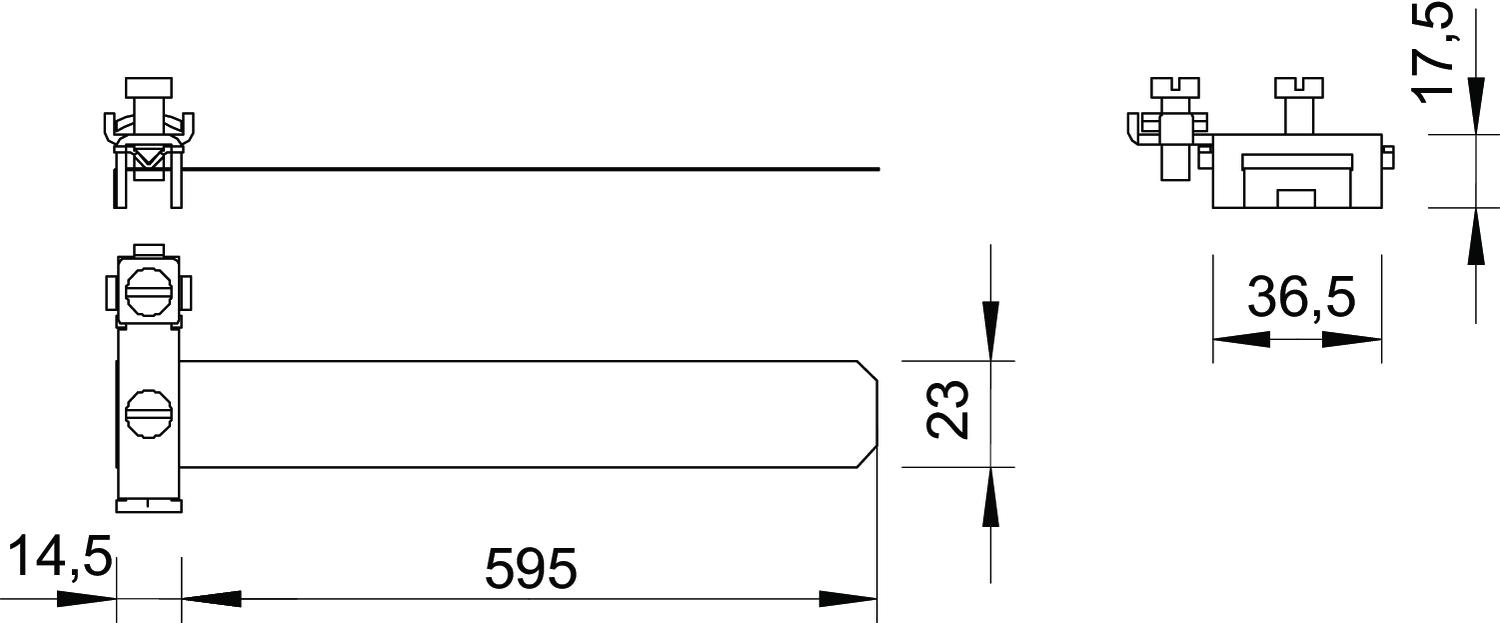

CO2 Footprint (GWP) Cradle-to-Gate 0,4578 kg CO2e / 1 Piece Cross-section of cable to be connected, max. 25 mm² Cross-section of cable to be connected, min. 2,5 mm² Dimension 3/8-4" Dimension L 595 mm Fit 3_8-4mm mm For pipe diameter, max. 114 mm For pipe diameter, min. 17,2 mm Height 75 mm Length 595 mm Material Stainless steel Width 31,5 mm - All types
-
Mounting accessories
Products Types Item no.

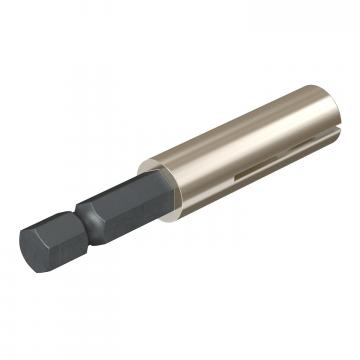

Pre-tensioner bit for earthing pipe clamps
927 BES VSW 25 A 5057694 - Downloads
-
Data sheet 927 2 6-K / 5057599 , 0.15MB , pdfREACH Declaration of conformity 927 2 6-K / 5057599 , 0.12MB , pdfRoHS Declaration of conformity 927 2 6-K / 5057599 , 0.12MB , pdfMounting instructions Extended mounting instructions, long isCon® , 6.11MB , pdf
