Pluggable cover, unequipped | | |
morepic-1 morepic-2

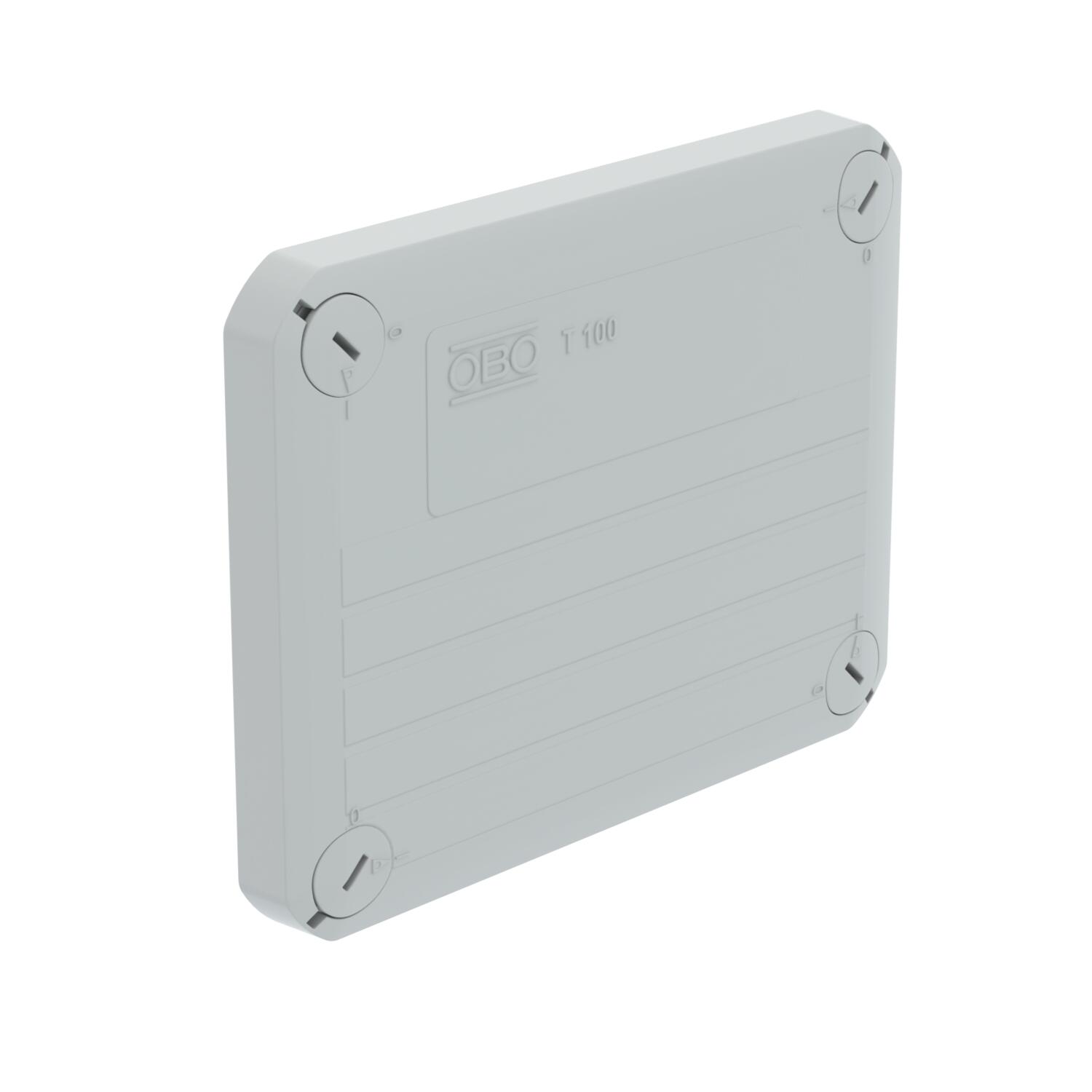

Pluggable cover, unequipped

Item no. 2006140 | EAN 4012197462840

Product description
Product description
Pluggable cover for the closing of junction boxes, equipped with break-out openings for multiple-pole systems or DATA systems based on Keystone. With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nominal voltage 500 V
  • Protection rating IP 66
Technical data

Technical data

Colour Light grey; RAL 7035

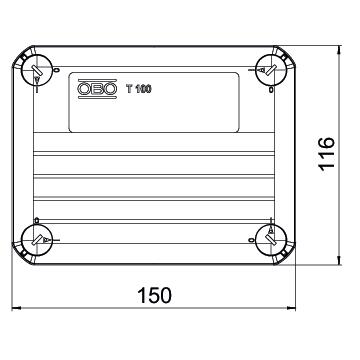

Dimension 150x116x22
Fastening type Screw fastening
Height 22 mm
Length 150 mm
Material Polypropylene
Protection rating IP66
Shape Rectangular
Version, concealed and cavity wall cover Blanking lid
Width 116 mm
With connection cable no
All types

All types

Types Number of sockets Number of 3-pole sockets Number of 4-pole sockets Number of 5-pole sockets Item no.
D05 2006136
D06 2006140
Downloads

Download

EU declaration of conformity D06 / 2006140 , 0.10MB , pdf
Download

No invitation to tender text is available for this product.
