Plug-in seal for FireBox T series
Item no. 7205675 | EAN 4012196280551
- Product description
-

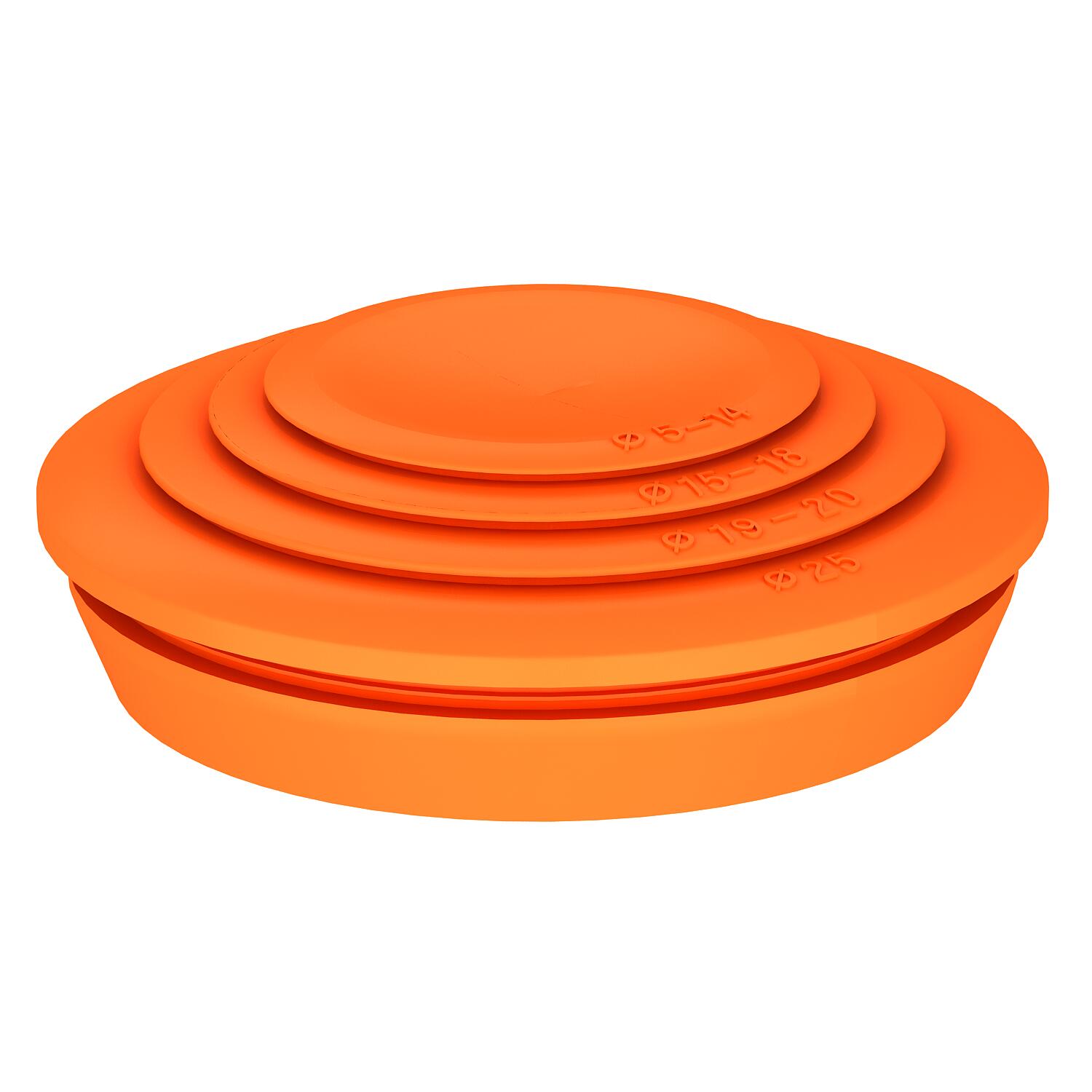

Product descriptionThe soft plug-in seal can be cut back step by step to suit the relevant cable diameter.
Colour: Pastel orange.
- Technical data
-
Technical data

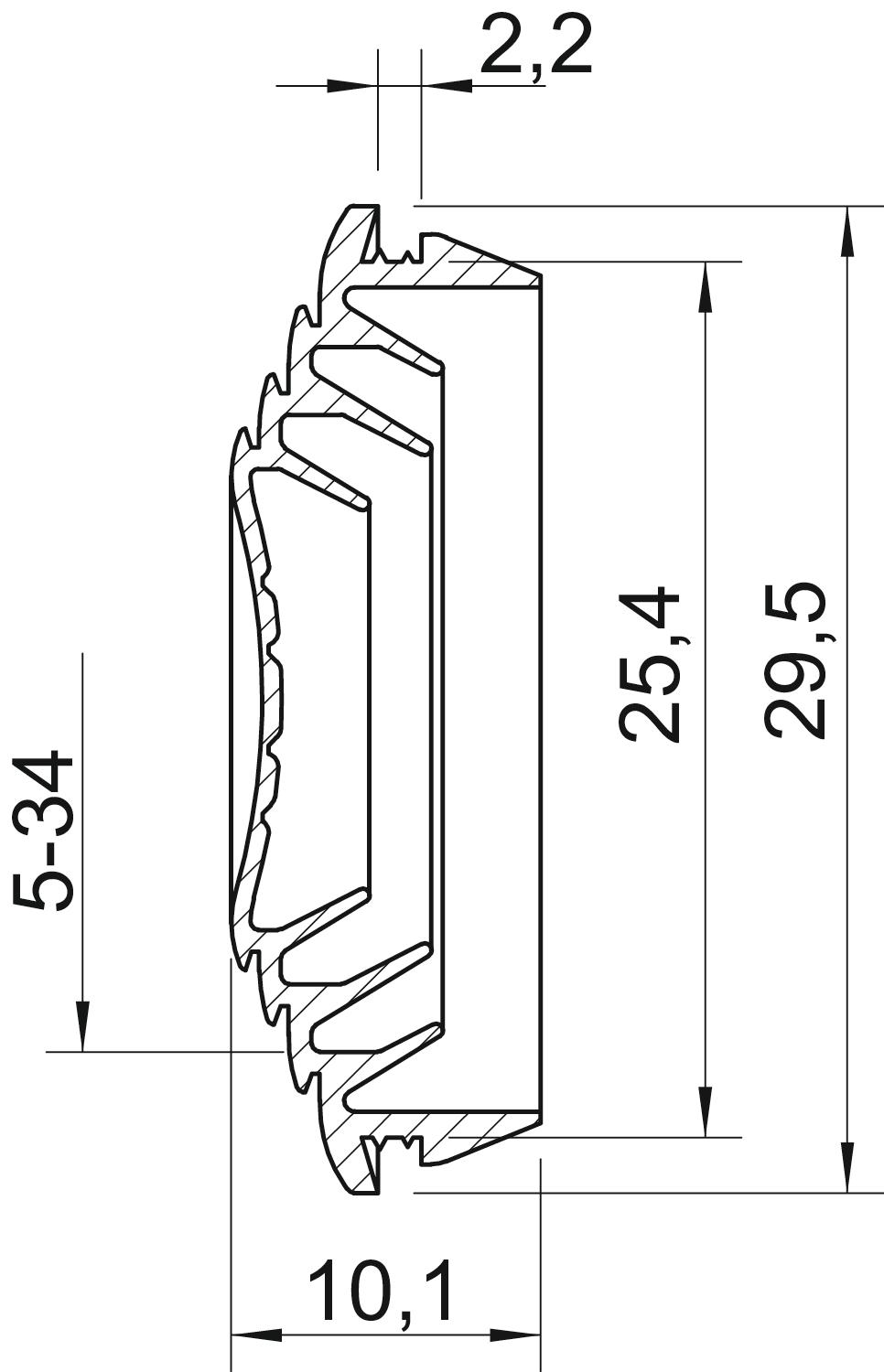

CO2 Footprint (GWP) Cradle-to-Gate 0,0158 kg CO2e / 1 Piece Colour Pastel orange; RAL 2003 Dimension M25 Dimension A 2,2 mm Dimension D1 29,5 mm Dimension D2 25,4 mm Dimension D3 5 mm Dimension D4 10 mm Dimension D5 15 mm Dimension L 10,1 mm for diameter, max. 22 mm for wall thickness, min. 2,2 Halogen-free no Material Thermoplastic elastomer Nominal diameter 25 mm Size M25 Version for Cuttable - All types
- Downloads
-
Data sheet EDK 25 OR / 7205675 , 0.17MB , pdfREACH Declaration of conformity EDK 25 OR / 7205675 , 0.12MB , pdfRoHS Declaration of conformity EDK 25 OR / 7205675 , 0.12MB , pdfNo invitation to tender text is available for this product.
