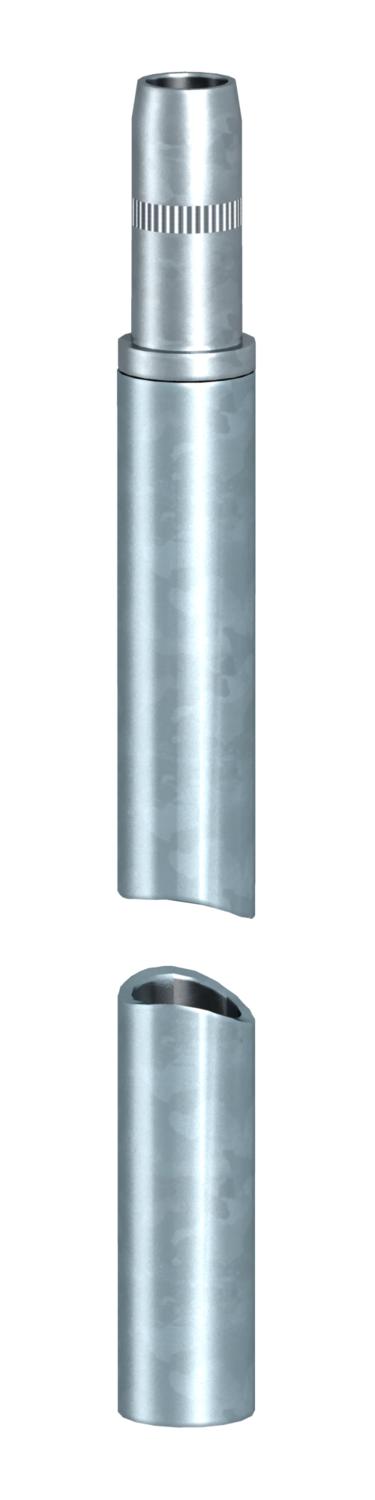

Pipe earth rod LE, FT

Item no. 5000300 | EAN 4012195617358

Item no. / Types	5000300 / LE ERDER FT

Length	1500 mm

External diameter	25 mm

Product description

Product description

• Expandable earth rod system for erecting earthing connections (type A)
• The pipe earth rod system LE is connected using the pre-mounted sleeve
• Complies with requirements according to DIN VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• For use with antenna earthing systems, lightning earthing systems, etc.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	6,262 kg CO₂e / 1 Piece

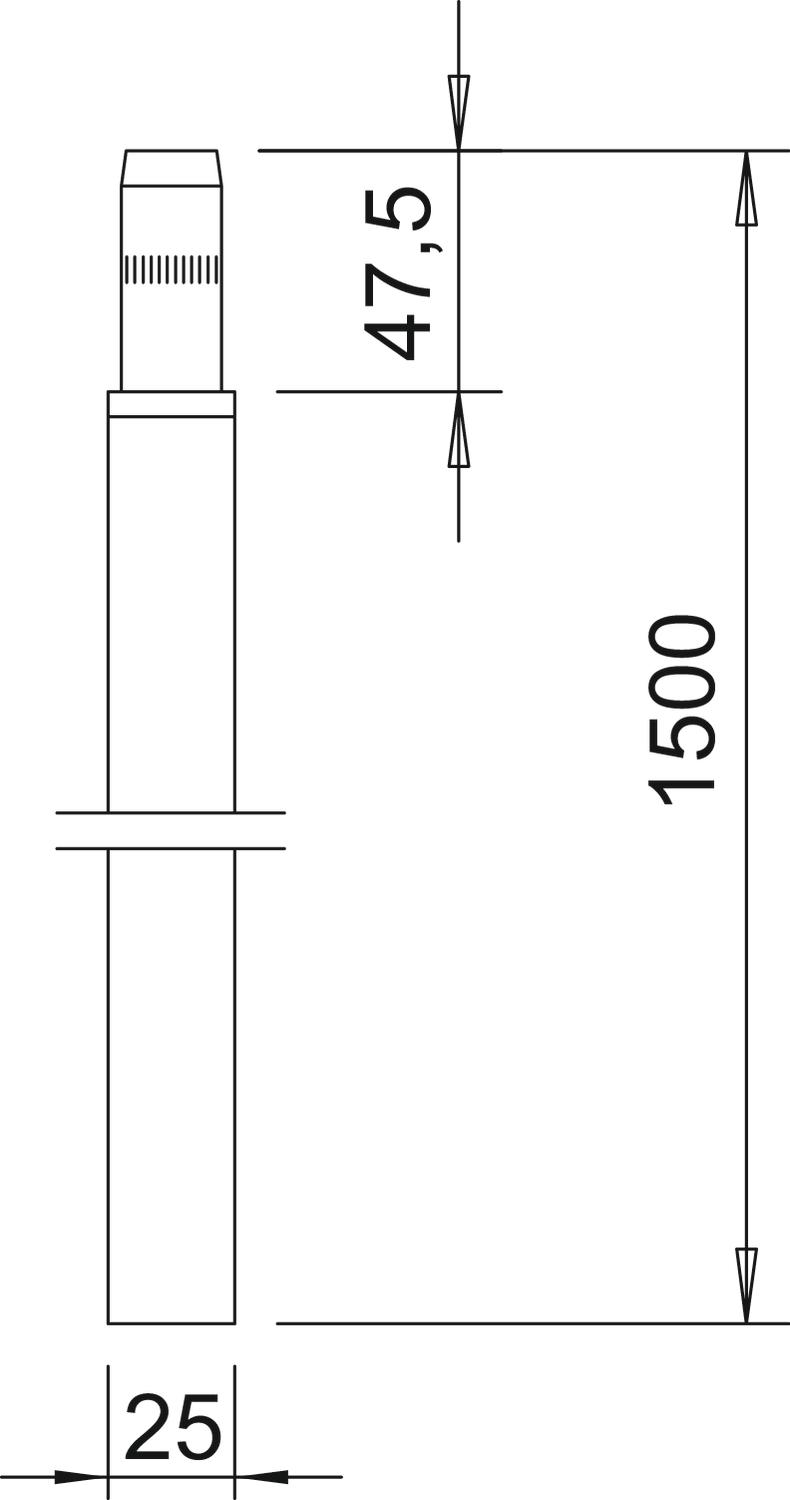

Dimension	1,5m
Dimension D	25 mm
Dimension L	1500 mm
External diameter	25 mm

Length	1500 mm
Material	Steel
Profile type	Round D=25 mm
Surface	Hot-dip galvanised

All types

All types

Types	Length	External diameter	Item no.
LE ERDER FT	1500 mm	25 mm	5000300

Accessories

Mounting accessories

Products	Types	Item no.
Driving spike for pipe earth rod LE	LE SPITZE	3041409
Driving head for LightEarth earth rod	LE KOPF	3042308
Connection clip for earthing rod to round cables Rd 8−10	2710 25 FT	5001226
Connection clamp for earth rod on flat conductor FT	2730 25 FT	5001412
Connection clamp for earth rod, universal FT	2760 25 FT	5001668
