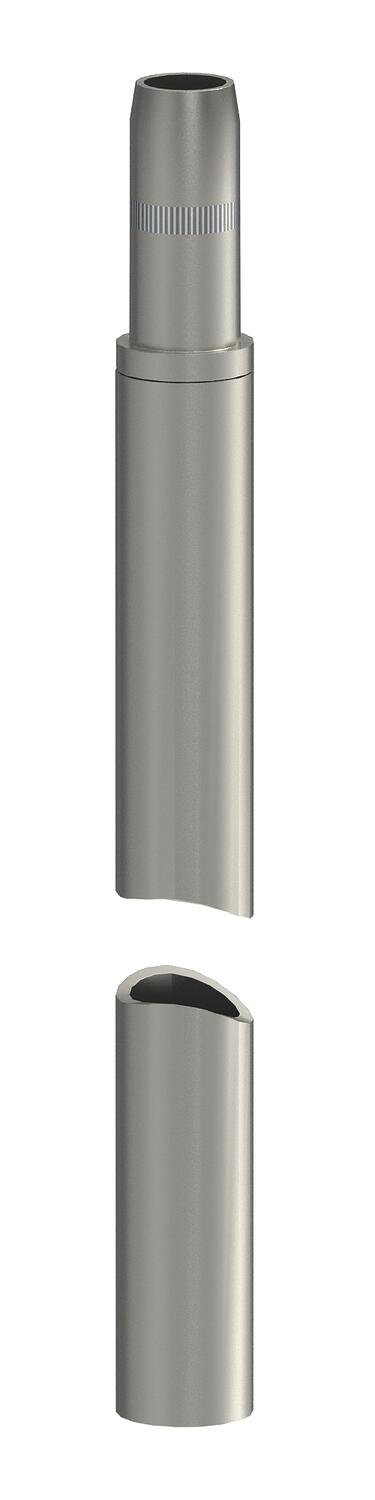

Pipe earth rod LE, A4

Item no. 5000335 | EAN 4012195708834

Item no. / Types	5000335 / LE ERDER V4A

Length	1500 mm

External diameter	25 mm

Product description

Product description

• Expandable earth rod system for erecting earthing connections (type A)
• The pipe earth rod system LE is connected using the pre-mounted sleeve
• Complies with requirements according to DIN VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• For use with antenna earthing systems, lightning earthing systems, etc.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	8,7955 kg CO₂e / 1 Piece

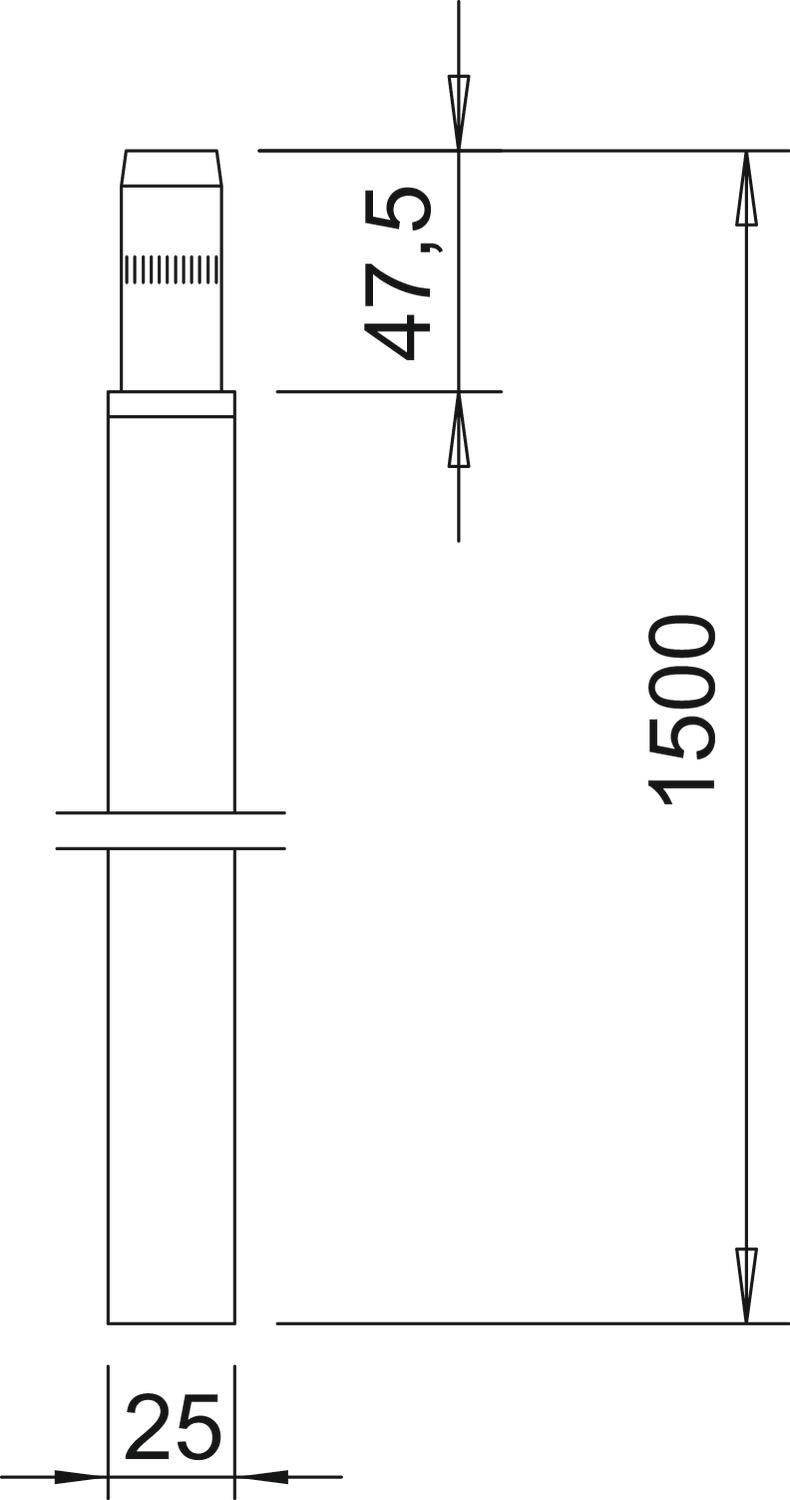

Dimension	1,5m
Dimension D	25 mm
Dimension L	1500 mm

External diameter	25 mm
Length	1500 mm
Material	Stainless steel
Profile type	Round D=25 mm

All types

All types

Types	Length	External diameter	Item no.
LE ERDER V4A	1500 mm	25 mm	5000335

Accessories

Mounting accessories

Products	Types	Item no.

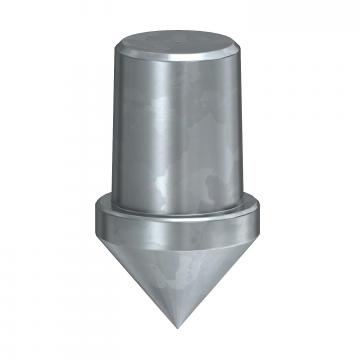

Driving spike for pipe earth rod LE	LE SPITZE	3041409

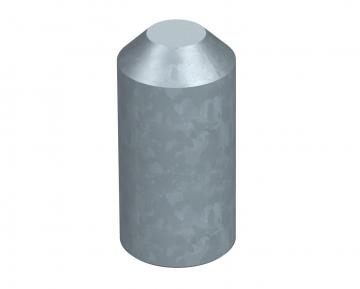

Driving head for LightEarth earth rod	LE KOPF	3042308

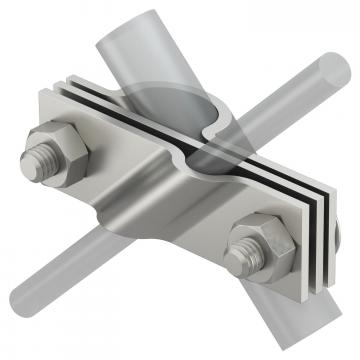

Connection clip for earth rod, universal A4	2760 20 V4A	5001633
