Nippel 89, light grey 7 | 13 | PG 11
morepic-1 morepic-2 morepic-3

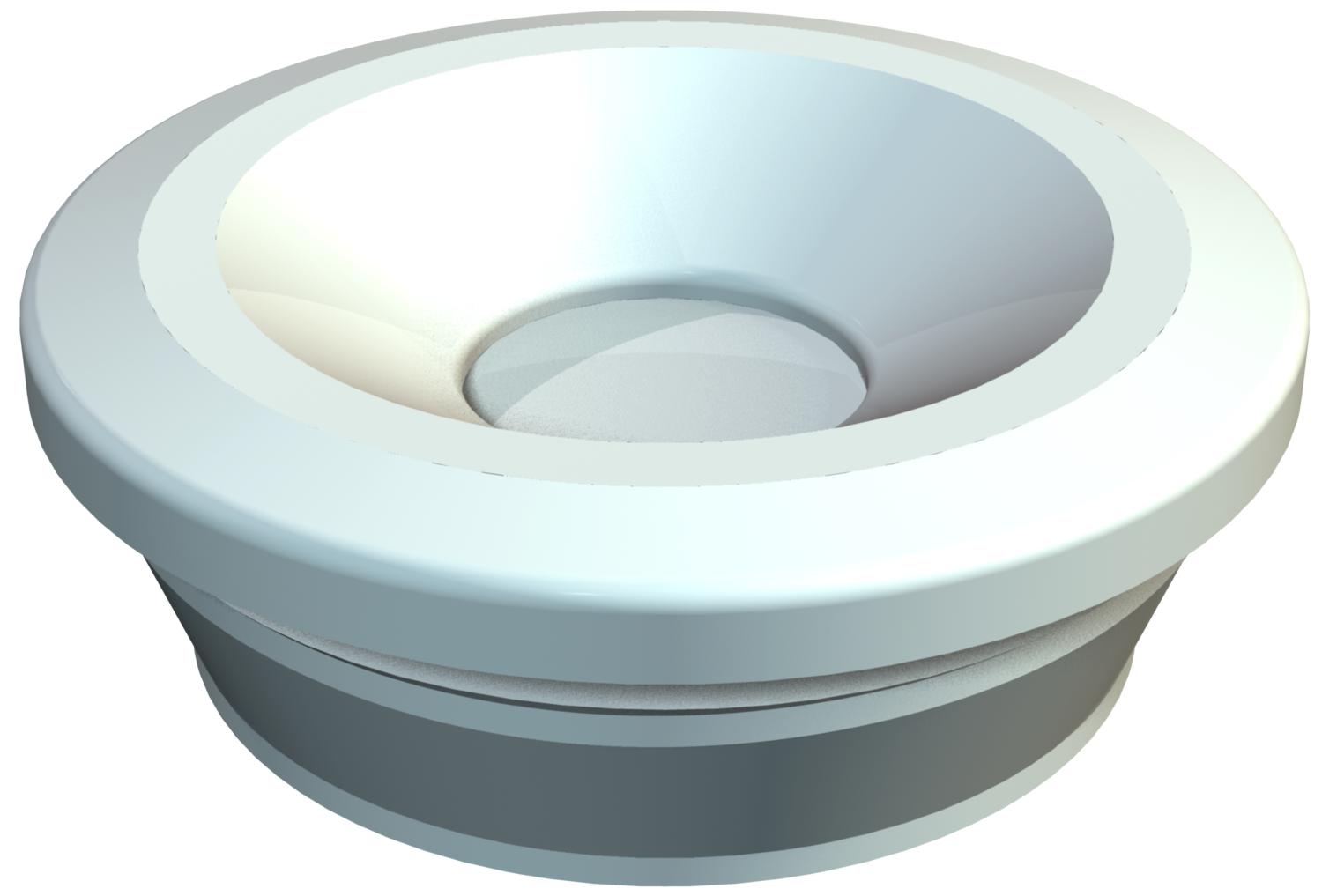

Nippel 89, light grey

Item no. 2012065 | EAN 4012195559092

7 mm
13 mm
PG 11
Product description
Product description
Closed entry nipple with perforation membrane for cable diameters 7‒13 mm. Ideal for simple cable routing in housings or through thin sheet metal.
Required hole diameter 18.5‒19 mm, wall thickness max. 1.8 mm.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0069 kg CO₂e / 1 Piece
Colour Light grey; RAL 7035

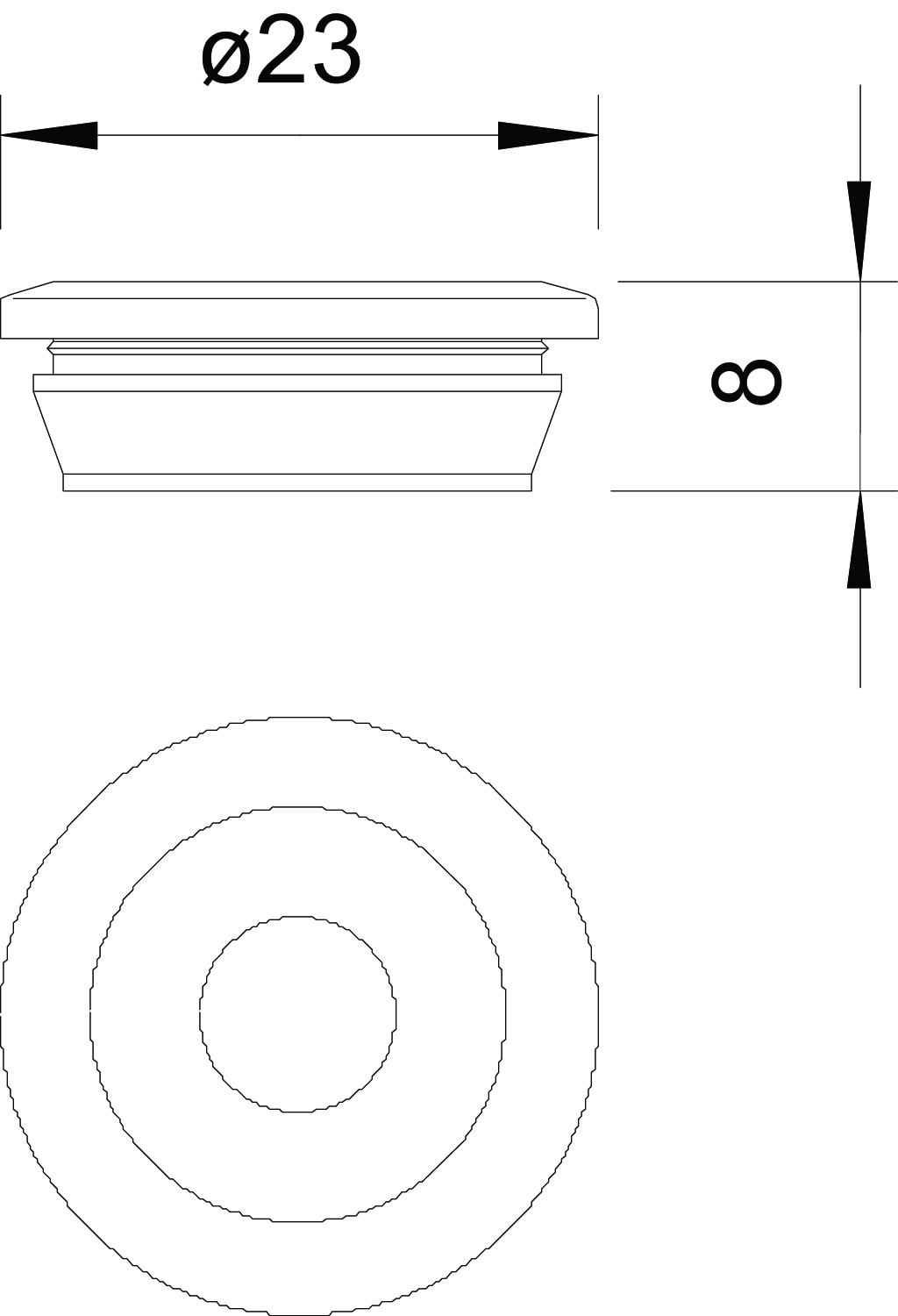

Dimension Ø7-13mm
Dimension t 1,8 mm
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
for diameter, max. 13 mm
for diameter, min. 7 mm
for wall thickness, max. 1,8
for wall thickness, min. 1,8
Halogen-free yes
Material Ethylene vinyl acetate
Nominal size PG 11
Size PG 11
Version for Closed
All types

All types

Types for diameter, min. for diameter, max. Size Item no.
89 7 mm 13 mm PG 11 2012030
89 LoG 7 mm 13 mm PG 11 2012065
89 3MM NUT 7 mm 13 mm PG 11 2012081
89 RW 7 mm 13 mm PG 11 2012103
89 SW 7 mm 13 mm PG 11 2012146
