MS5030 mounting rail, slot 22 mm, FT, perforated 300 | 50 | 30 | 3 | Hot-dip galvanised

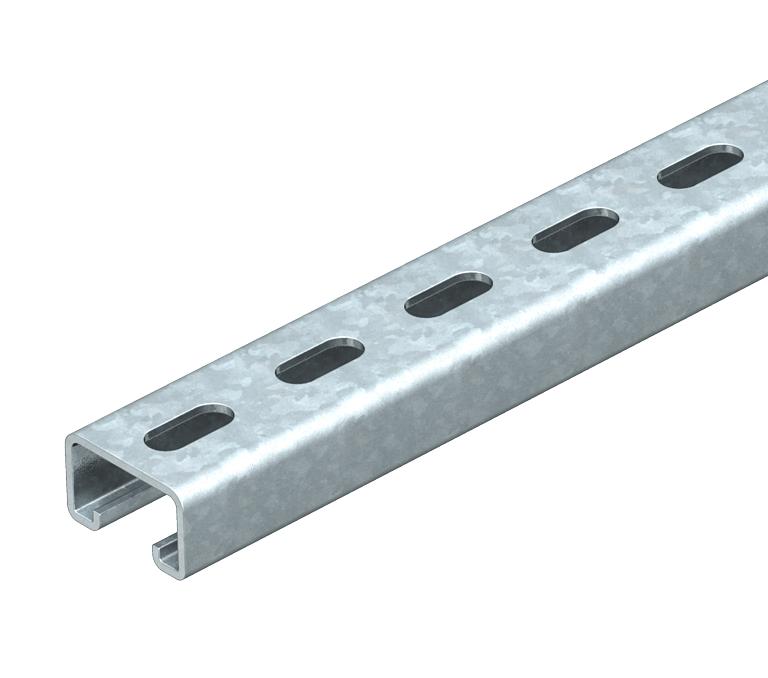

MS5030 mounting rail, slot 22 mm, FT, perforated

Item no. 1121243 | EAN 4012195672975

Item no. / Types

Length

Width	50 mm

Height	30 mm

Material thickness	3 mm

Surface	Hot-dip galvanised

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no
CO2 Footprint (GWP) Cradle-to-Gate	1,863 kg CO₂e / 1 Piece

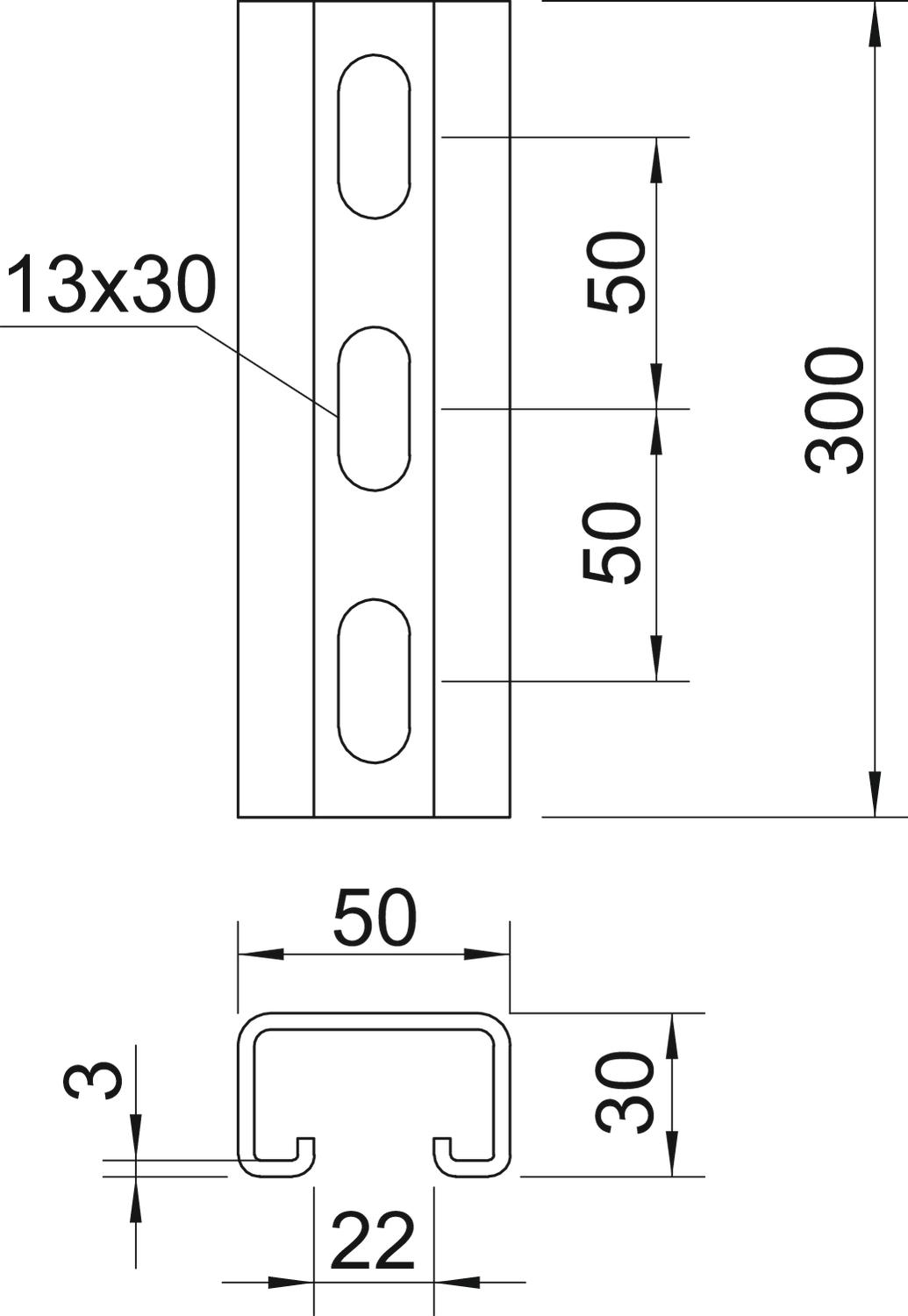

Dimension	300x50x30
Dimension L	300 mm
Drill hole spacing, centre	50 mm
Height	30 mm
Length	300 mm
Maintain electrical functions	yes
Material	Steel
Material thickness	3 mm
Profile shape	C profile
Slot width	22 mm

Static value A	3,39 cm²
Static value ly	3,99 cm
Static value lz	13,11 cm
Static value Wy	3,95 cm²
Static value Wz	6,38 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
Width	50 mm
With perforation	yes
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.
MS5030P0300FT	300 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121243
MS5030P0400FT	400 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121278
MS5030P0600FT	600 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121294
MS5030P0800FT	800 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121308
MS5030P0700FT	700 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121332
MS5030P0900FT	900 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121336
MS5030P1500FT	1500 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121363
MS5030P0200FT	200 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121391
MS5030P0500FT	500 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121405
