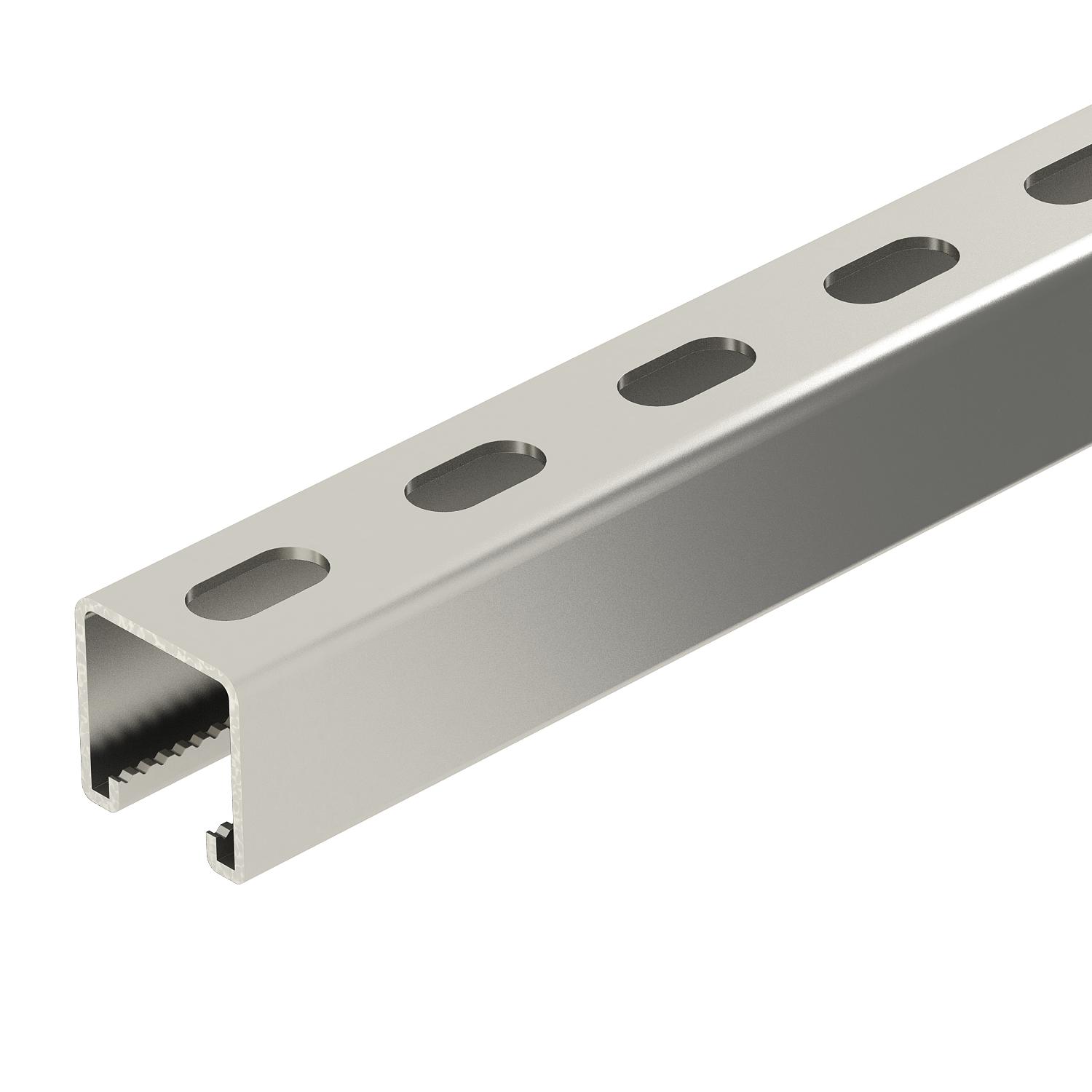

MS4141 mounting rail, slot width 22 mm, A4, perforated
Item no. 1123037 | EAN 4012195907152
- Product description
-
Product descriptionHeavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
-
- Technical data
-
Technical data

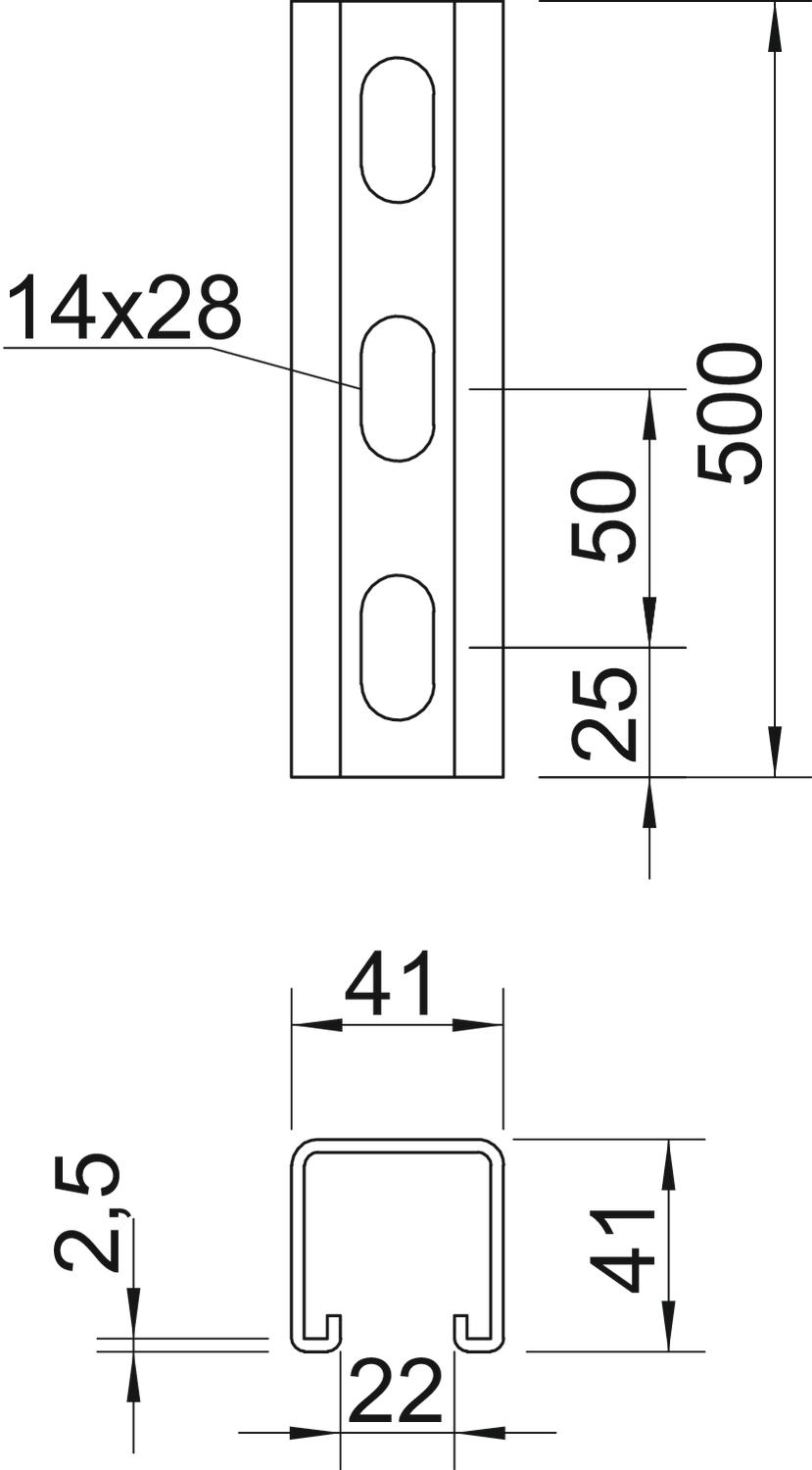

Breakable no CO2 Footprint (GWP) Cradle-to-Gate 7,1091 kg CO₂e / 1 Piece Dimension 500x41x41 Dimension L 500 mm Drill hole spacing, centre 50 mm Height 41 mm Hole size 14x28 mm Length 500 mm Maintain electrical functions no Material Stainless steel Material thickness 2,5 mm Profile shape C profile Slot width 22 mm Static value A 2,97 cm² Static value ly 6,05 cm Static value lz 9,01 cm Static value Wy 2,91 cm² Static value Wz 4,4 cm² Type of perforation Perforated back Version for Single profile Width 41 mm With toothing yes - All types
