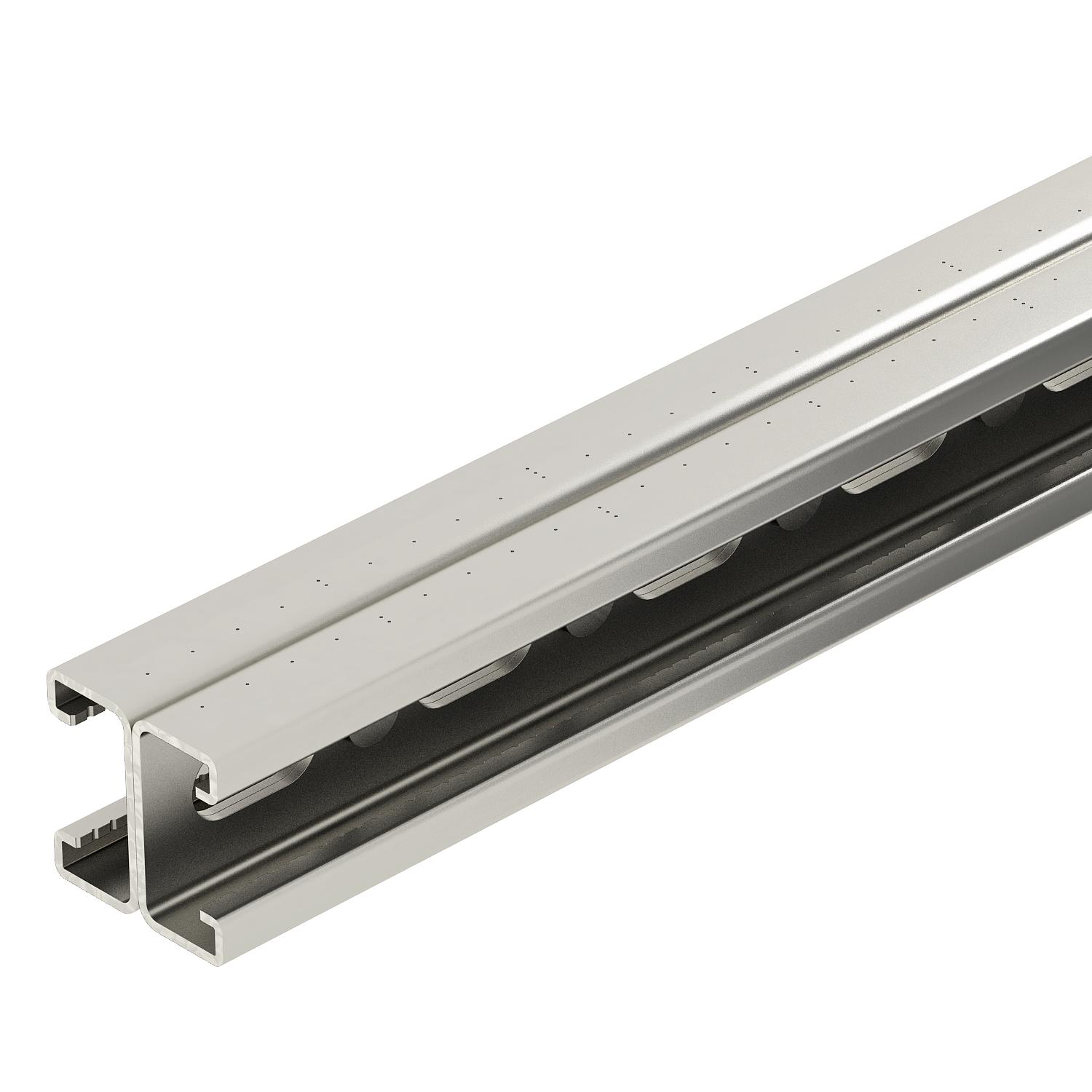

MS4121 mounting rail, slot 22 mm, double, A2, perforated
Item no. 1122954 | EAN 4012195938019
- Product description
-
Product descriptionHeavy-duty unistrut with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (welded).
-
- Technical data
-
Technical data

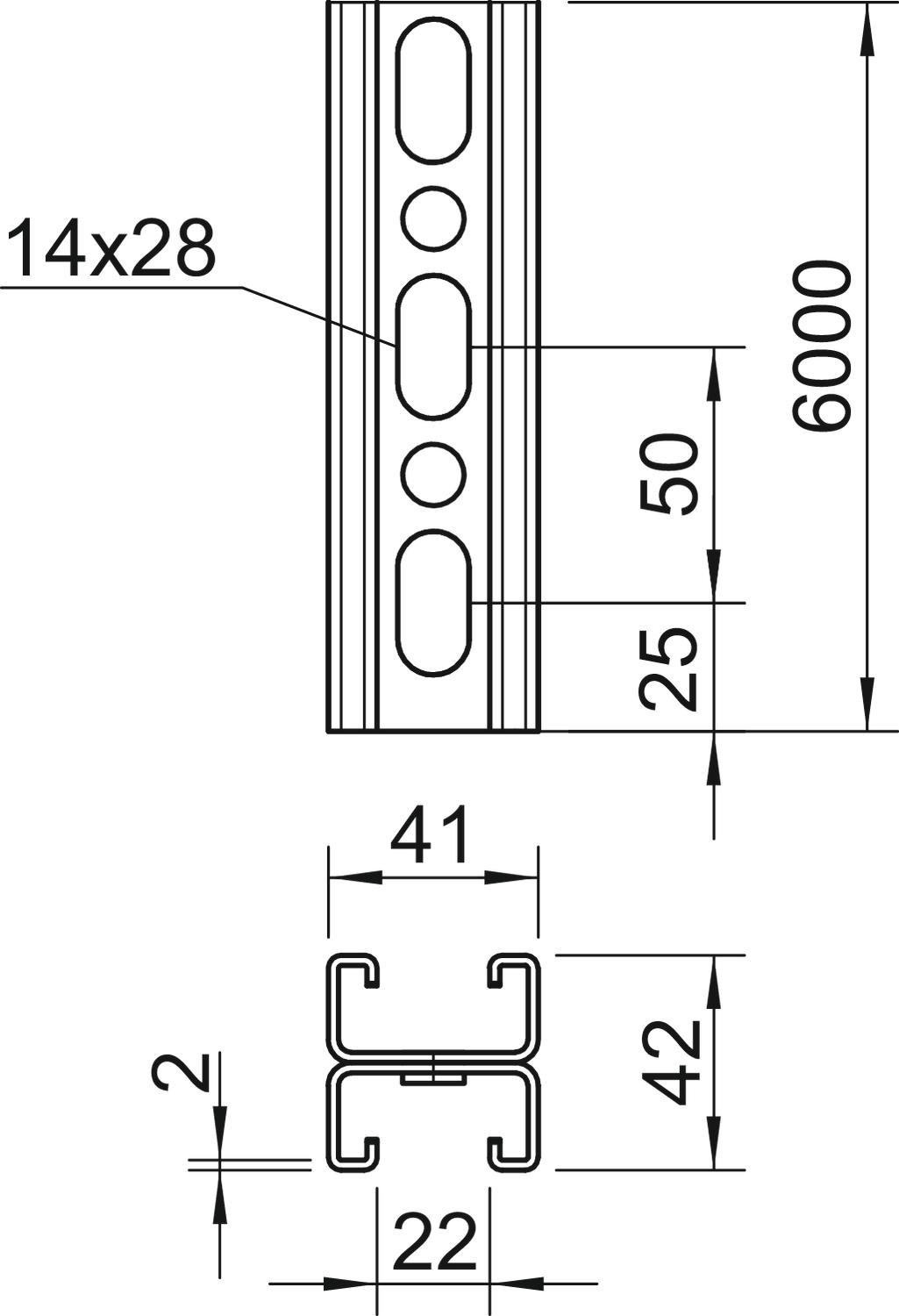

Breakable no CO2 Footprint (GWP) Cradle-to-Gate 14,6146 kg CO₂e / 1 Meter Dimension 6000x41x42 Dimension L 6000 mm Height 42 mm Hole size 14x28 mm Length 6000 mm Maintain electrical functions no Material Stainless steel Material thickness 2 mm Profile shape C profile Slot width 22 mm Static value A 3,3 cm² Static value ly 5,38 cm Static value lz 9,02 cm Static value Wy 1,28 cm² Static value Wz 0,25 cm² Surface Bright, treated Type of perforation Perforated bar Version for Double profile Width 41 mm With toothing yes - All types
-
System accessories
Products Types Item no.

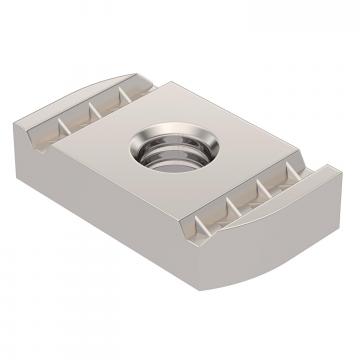

Slide nut A4
MS41SN M10 A4 1147234
Hammer-head bolt A4
MS41HB M10x30 A4 1148422 - Downloads
-
Data sheet MS4142P6000A2 / 1122954 , 0.21MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity MS4142P6000A2 / 1122954 , 0.10MB , pdfUK Declaration of Conformity MS4142P6000A2 / 1122954 , 0.09MB , pdfREACH Declaration of conformity MS4142P6000A2 / 1122954 , 0.12MB , pdfRoHS Declaration of conformity MS4142P6000A2 / 1122954 , 0.12MB , pdf
