Mounting plate for the installation of data sockets in GESRM2, 2 x type C
Item no. 7407624 | EAN 4012195372530
- Product description
-

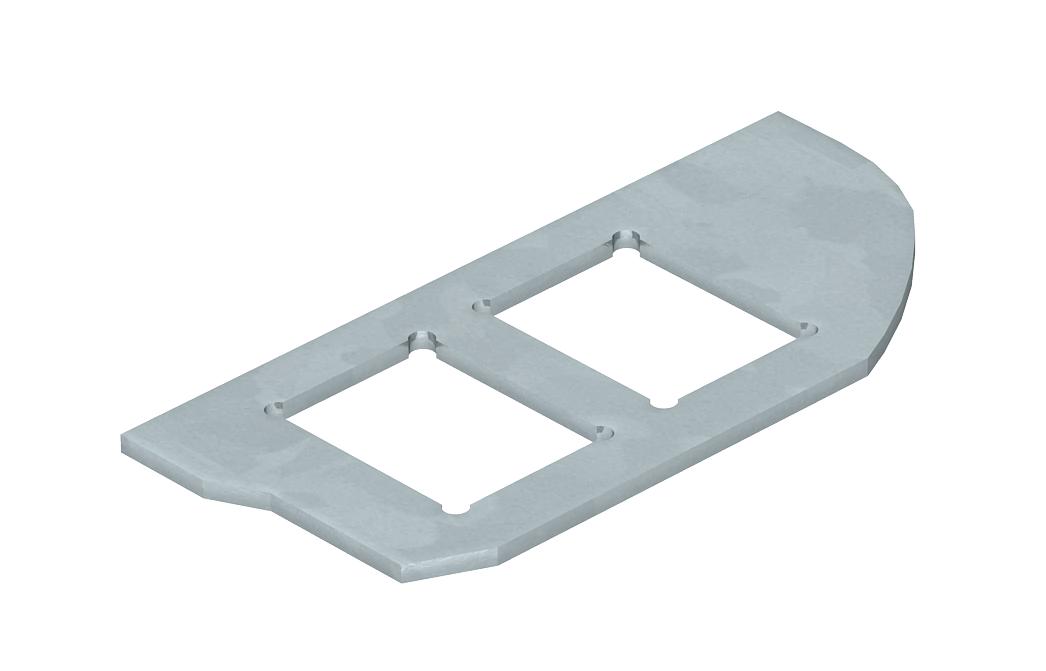

Product descriptionMounting plate to accept two data connection modules of the following types: Brand-Rex: shielded; EKU: E-Stone; Dätwyler: KS-T, MS-K and KU-T module; R&M: Snap-In and Keystone; Rutenbeck: UM and UMflex; SETEC: MKJ, UKJ and XKJ; Siemon TERA; Telegärtner: AMJ and UMJ.

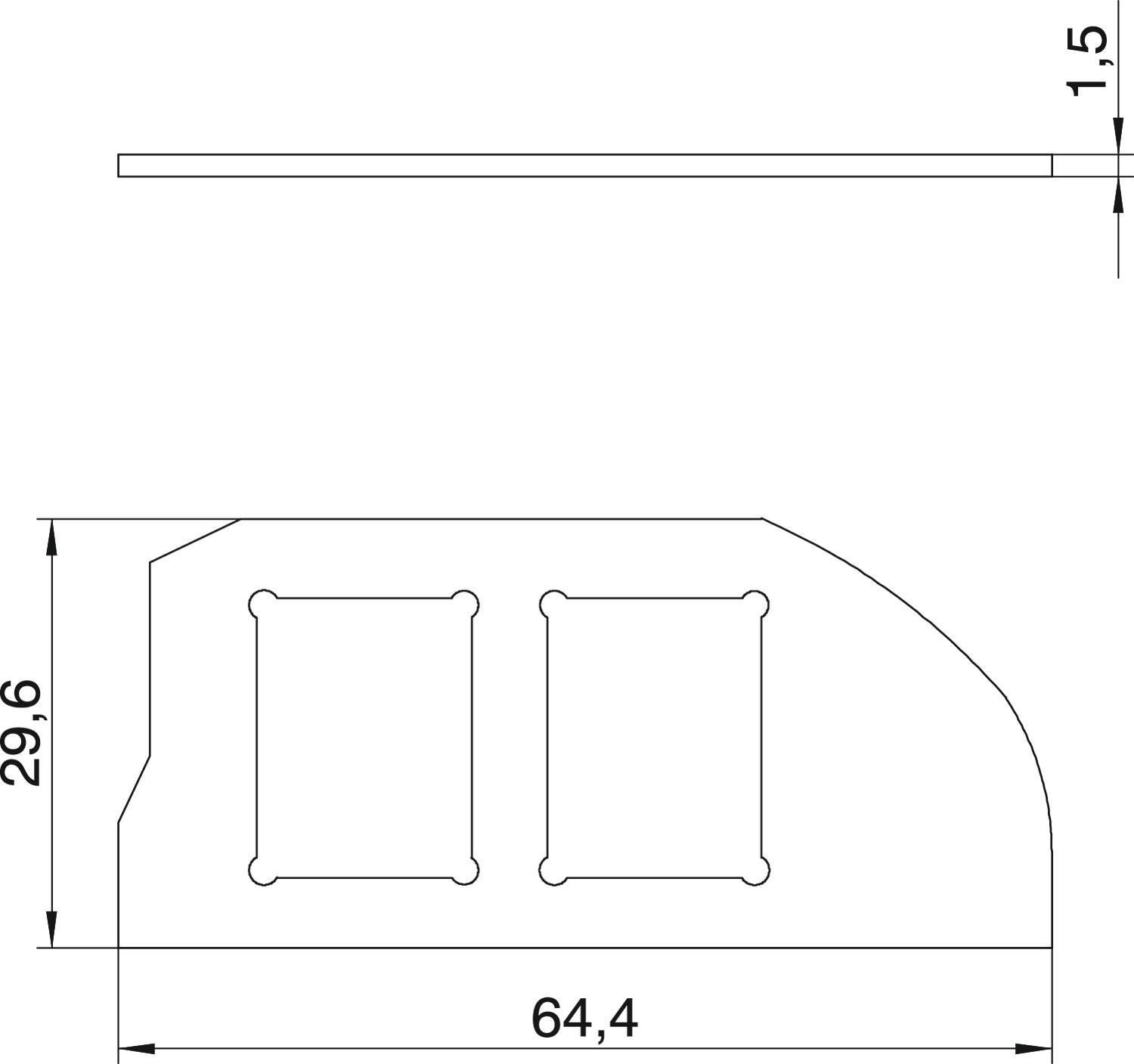

Dimensions of a mounting opening in mm: 19.30 x 14.80.
-
- Technical data
-
Technical data
Blanking lid no Decouplable no Depth 1,5 mm Device type Miscellaneous Dimension 19,3x14,8 External diameter 130 mm Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Height 1,5 mm Installation opening for on-floor tank no Installation technology Miscellaneous Labelling panel no Length 64,4 mm Lowerable to be flush-floor no Material Stainless steel Number of installable devices 2 Number of single openings 2 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes suitable for data connection module Type C Suitable for labelling panel no Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Suitable for wet care yes Version for Support shape Width 29,6 mm With floor covering recess no - All types
- Downloads
-
Data sheet MPRM2 2C / 7407624 , 0.16MB , pdfEU declaration of conformity MPRM2 2C / 7407624 , 0.11MB , pdfREACH Declaration of conformity MPRM2 2C / 7407624 , 0.12MB , pdfRoHS Declaration of conformity MPRM2 2C / 7407624 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
