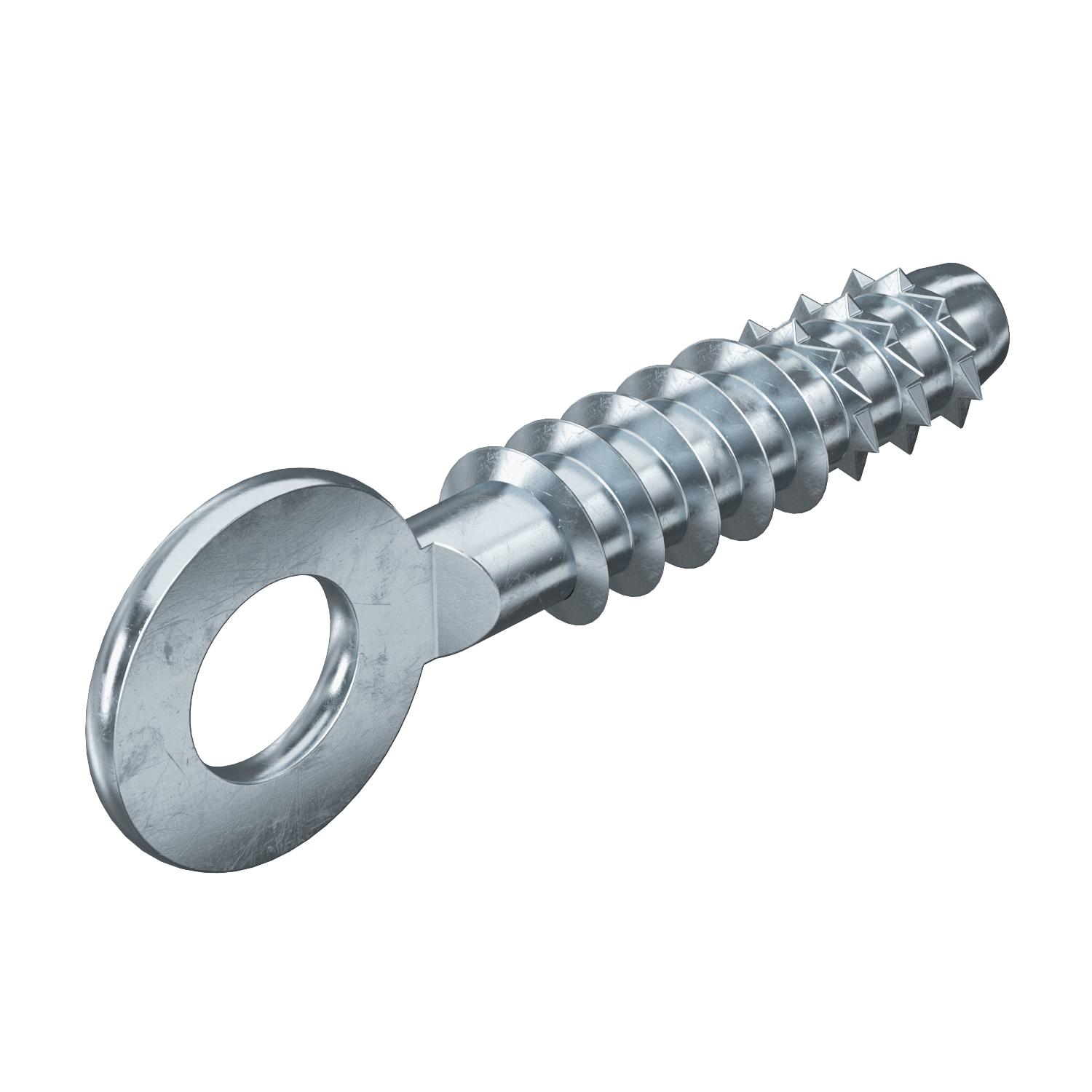

MMS-plus R 6x40 ring tie, with setting tool
Item no. 3498180 | EAN 4012196842698
- Product description
-
Product descriptionBolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With ring eyelet for universal fastenings. Setting tool contained in the scope of delivery.
- Technical data
-
Technical data

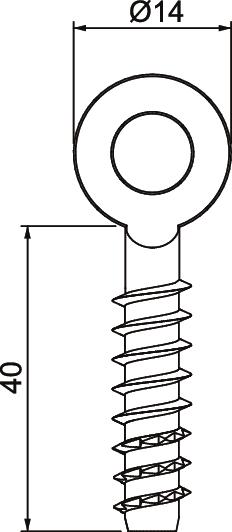

Anchor length 40 mm Anchor/nail/bolt version Spiral anchor Clamping strength 5 mm Colour zinc Dimension 6x40 Dimension 6x40 Drill hole depth 40 mm Drill hole diameter, min. 5 mm Fire resistance class EN 13501-1 R30|R60|R90|R120 Hardened yes Head diameter 14 mm Head shape With eyelet Length 40 mm Material Steel Screw system Miscellaneous Surface galvanised - All types
- Downloads
-
Data sheet MMS+ R 6x40 / 3498180 , 0.20MB , pdfDeclaration of performance MMS+ R 6x40 / 3498180 , 0.26MB , pdfNo invitation to tender text is available for this product.
