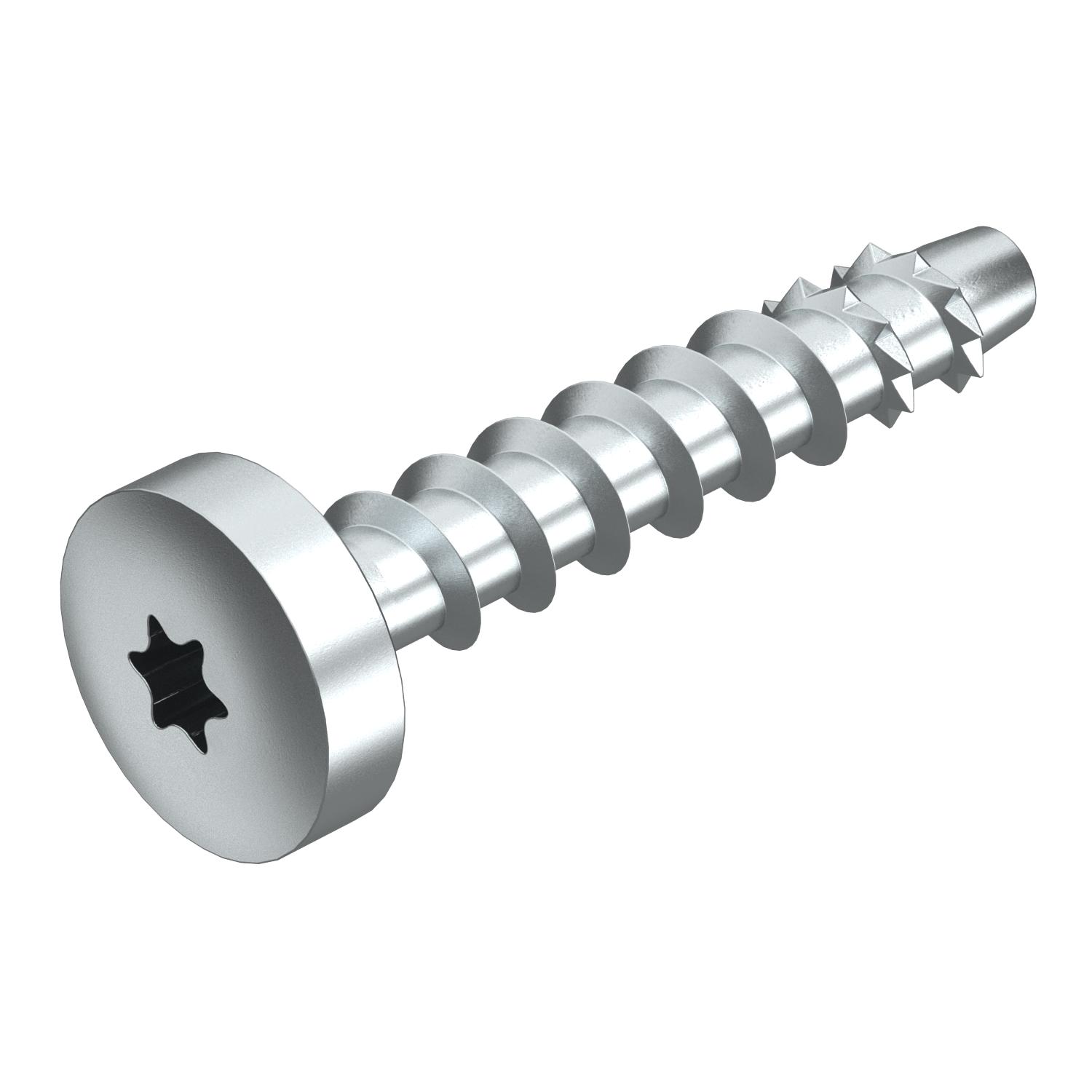

MMS-plus P 6x50 round head tie, with pan head

Item no. 3498108 | EAN 4012196559657

5 mm
11.2 mm
Torx
Product description
Product description
Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With round head for universal fastenings. Torx drive T30.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection bolt tie
  • Torx screw
Technical data

Technical data

Anchor length 50 mm
Anchor/nail/bolt version Spiral anchor
Clamping strength 15 mm
Colour zinc

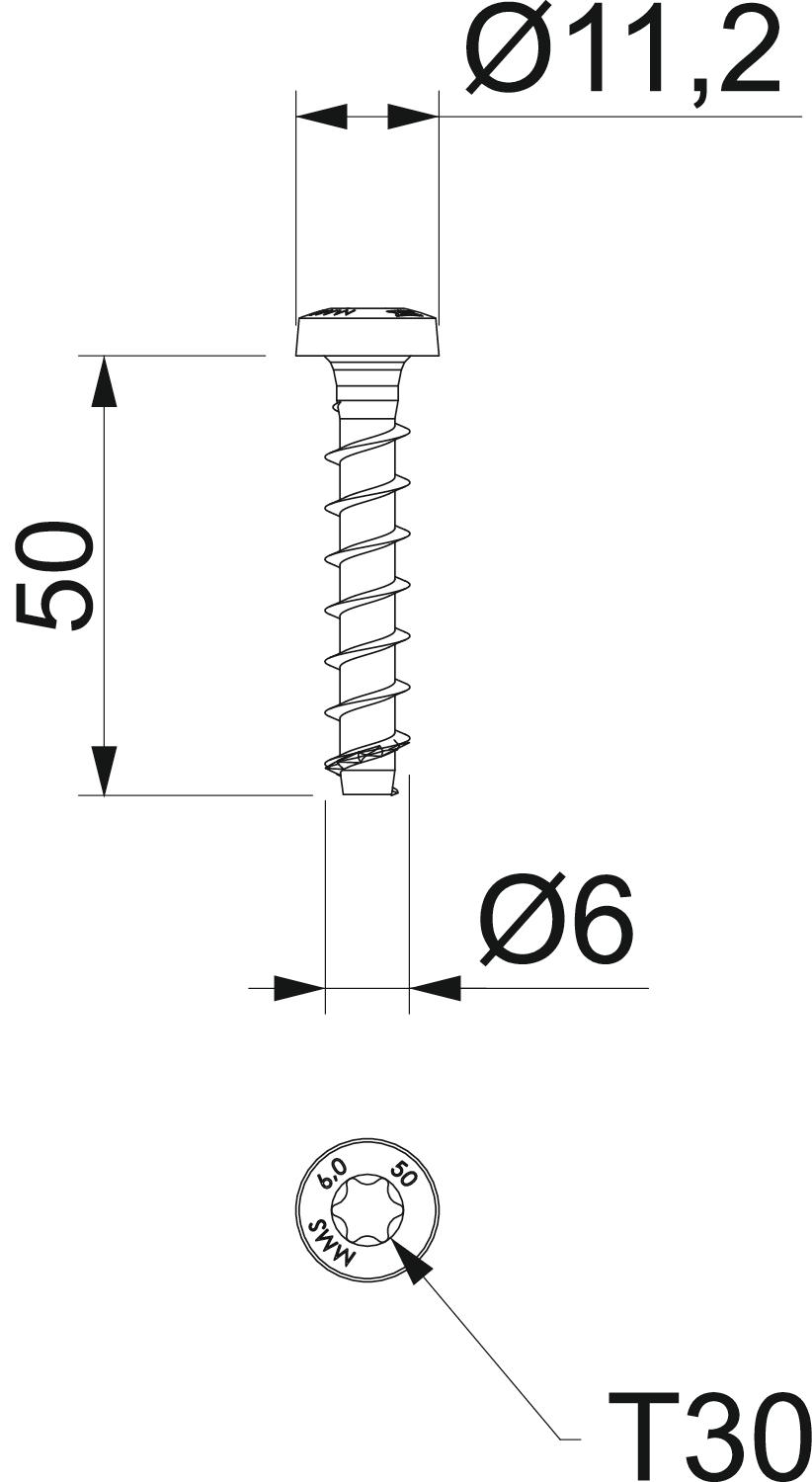

Dimension 6 x 50
Dimension 6x50mm
Dimension L 50 mm
Drill hole depth 40 mm
Drill hole diameter, min. 5 mm
Fire resistance class EN 13501-1 R30|R60|R90|R120
Hardened yes
Head diameter 11,2 mm
Head shape Cup head
Length 50 mm
Material Steel
Screw system Torx
Surface Electrogalvanized
Thread 6
Thread diameter ST 6
All types

All types

Types Length Dimension Drill hole diameter, min. Head diameter Screw system Item no.
MMS+ P 6x35 35 mm 6 x 35 5 mm 11.2 mm Torx 3498103
MMS+ P 6x40 40 mm 6 x 40 5 mm 11.2 mm Torx 3498105
MMS+ P 6x50 50 mm 6 x 50 5 mm 11.2 mm Torx 3498108
Downloads

Download

Download
Download
Download

Declaration of performance MMS+ P 6x50 / 3498108 , 0.26MB , pdf
Download
REACH Declaration of conformity MMS+ P 6x50 / 3498108 , 0.12MB , pdf
Download
RoHS Declaration of conformity MMS+ P 6x50 / 3498108 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
