MMS-plus KS 5x50 countersunk head tie, for cable clip 50 | 5 x 50 | 4 | 7.5 | Torx
morepic-1 morepic-2 video-1

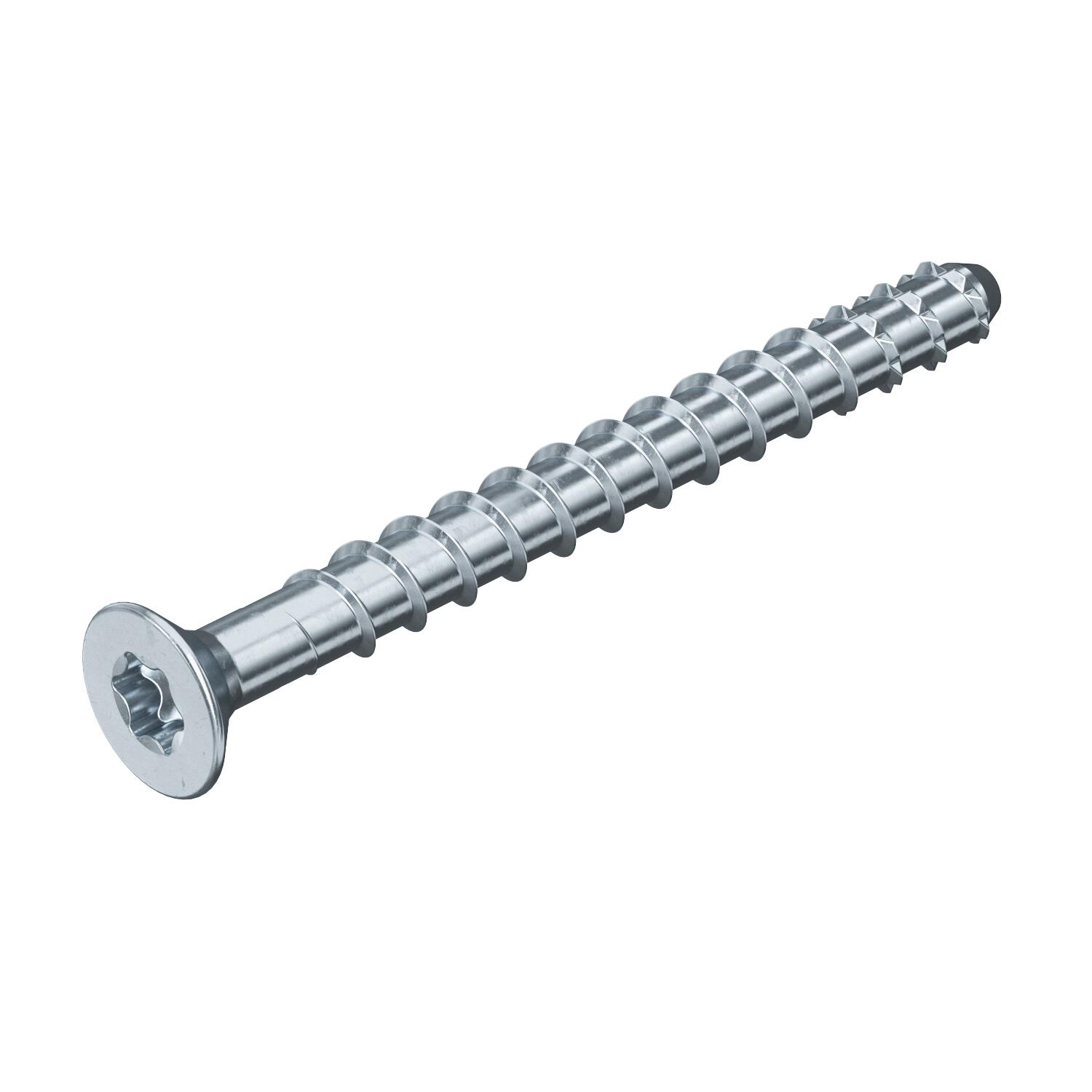

MMS-plus KS 5x50 countersunk head tie, for cable clip

Item no. 3498204 | EAN 4012195964100

3498204 / MMS+ KS 5x50
50 mm
5 x 50
4 mm
7.5 mm
Torx
Product description
Product description
Bolt tie for direct mounting without additional anchors in concrete and masonry. With small countersunk head to fasten cable clips through the threaded foot.

Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection bolt tie
  • Torx screw
Technical data

Technical data

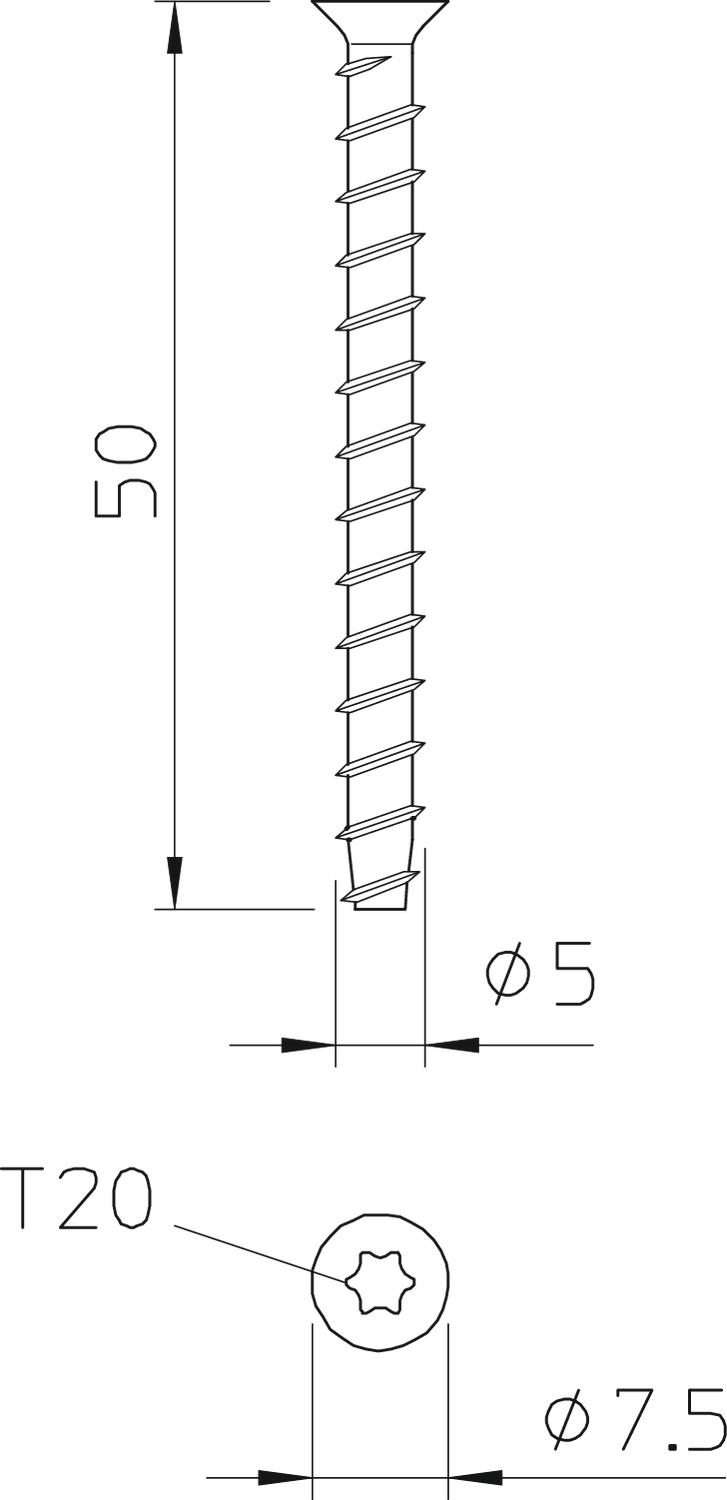

Anchor length 50 mm
Colour zinc
Dimension 5x50mm
Dimension 5 x 50
Dimension L 50 mm
Drill hole diameter, min. 4 mm
Head diameter 7,5 mm
Head shape Countersunk head
Length 50 mm
Material Steel
Screw system Torx
Surface Electrogalvanized
Thread diameter ST 5
All types

All types

Types Length Dimension Drill hole diameter, min. Head diameter Screw system Item no.
MMS+ KS 5x50 50 mm 5 x 50 4 mm 7.5 mm Torx 3498204
